HELLA

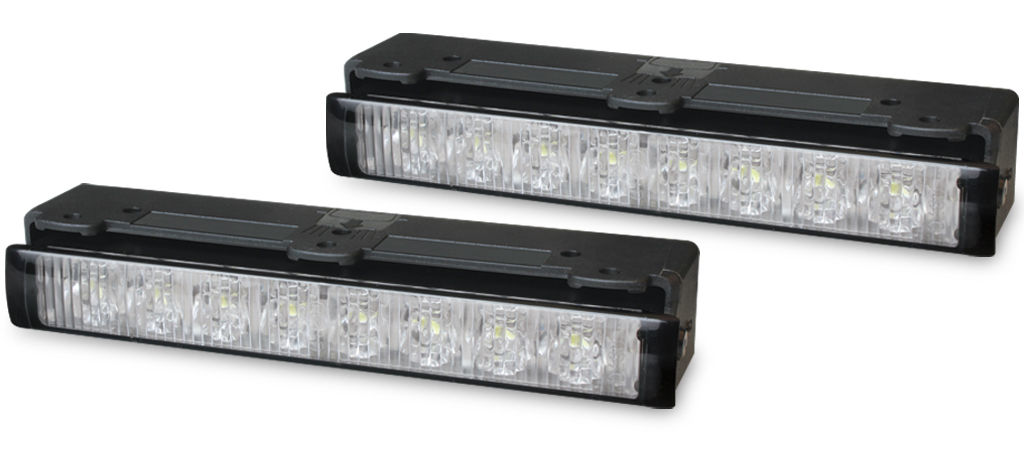

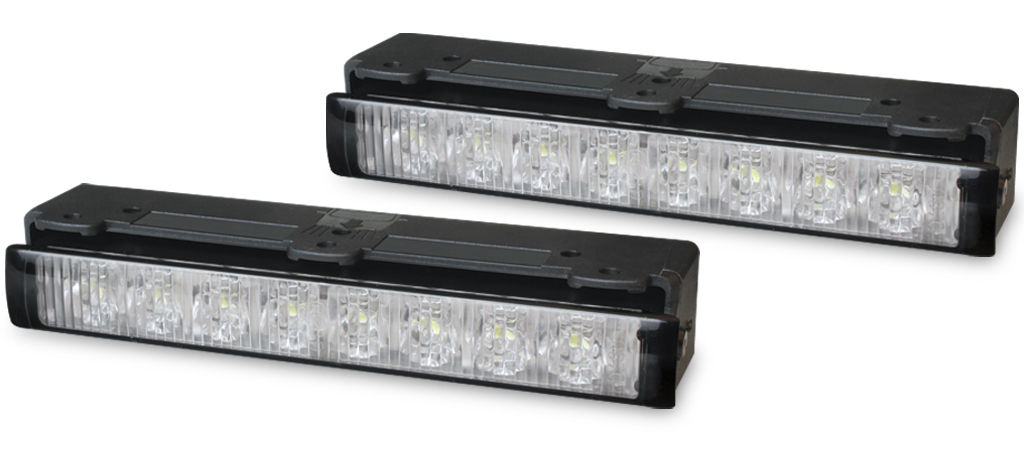

LED Daytime Running Lamps 0˚ ECE/SAE

Forward facing signal lamps, designed to be mounted on vehicles with flat fronts, or on motorbikes. The lamps are an Easy-Fit installation, usually requiring no extra parts. Once the wiring is complete and the bracket is fitted, the LED lamp easily clips into place and installation is complete.

Features RFCommSafe™
To view and download more information please click here

Perpendicular   Designed to be mounted on vehicles with flat
fronts or motorbikes.


To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Daytime Running Lamp 0˚ - 12 Volt - ECE/SAE

PART NO: 2PT 980 970-021

LED Daytime Running Lamp Kit 0˚ - 12 Volt - ECE/SAE

PART NO: 2PT 980 970-821

LED Daytime Running Lamp 0˚ - 24 Volt - ECE/SAE

PART NO: 2PT 980 970-521

LED Daytime Running Lamp Kit 0˚ - 24 Volt - ECE/SAE

PART NO: 2PT 980 970-871

Specifications

Mounting

Suitable for horizontal mounting only.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Single lamps are pre-wired with 2.5m of sheathed multi-core cable.
Lamps supplied with kit are pre-wired with 2.8m of sheathed multi-core cable.

Lens Material

PMMA

Spare Parts

8HG 980 875-101 Brackets (LH/RH)
5DF 980 816-051 LED DRL/PO Control Unit (12 Volt)
5DF 980 816-551 LED DRL/PO Control Unit (24 Volt)

Approval Markings

E24 5875 SAE P 14 DOT DRL

Kit Contents

2PT 980 970-821/...-871
2 x LED daytime running lamps
2 x Mounting brackets
6 x Mounting screws
1 x Changeover relay
1 x Instruction sheet
10 x Cable ties
4 x Accessory cable looms

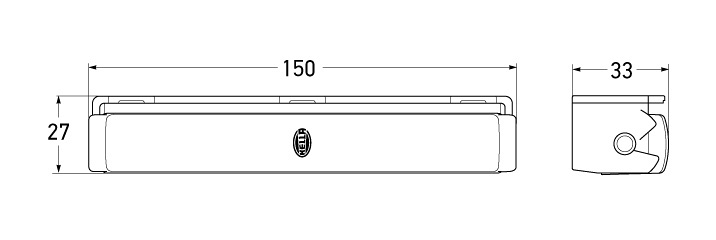

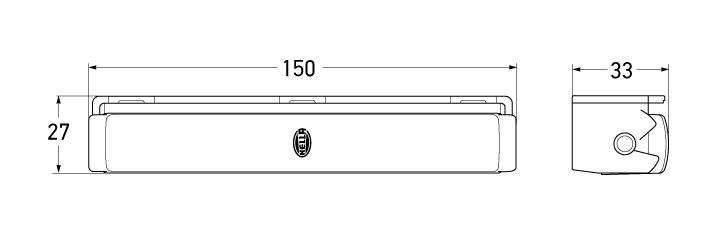

Outline

All dimensions in mm.
All dimensions in mm.

Top
