HELLA

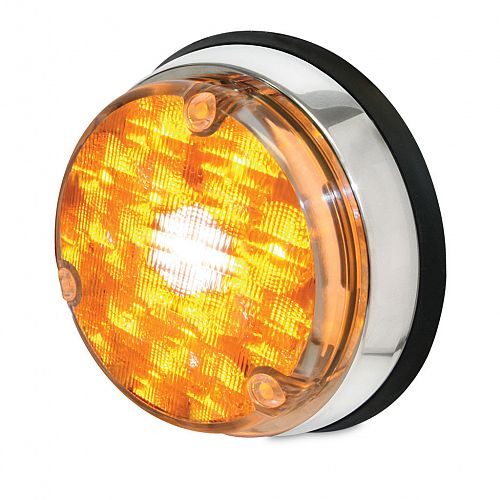

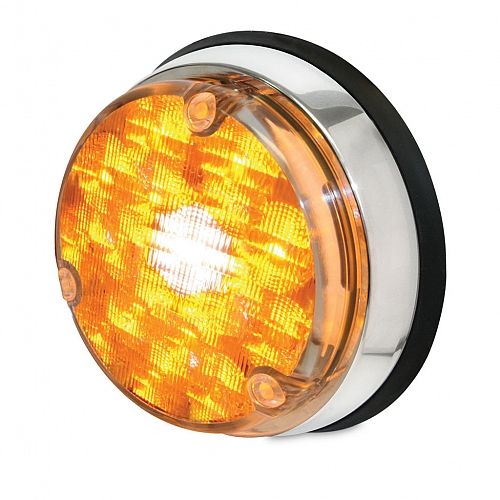

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - ECE

Low profile LED front direction indicator/ position lamp (category 1) specifically designed for commercial transport applications. Features high-intensity LEDs and high impact acrylic lens for superior light output and impact resistance.

Hella Compatibility Solution HCS
Hella P/N 2BE 959 932-161, 2BE 959 932-151 and 2BE 959 932-131 feature HCS Technology. Please click on HCS above for further information.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

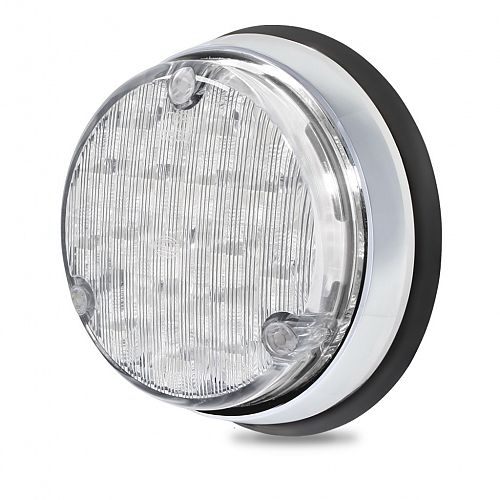

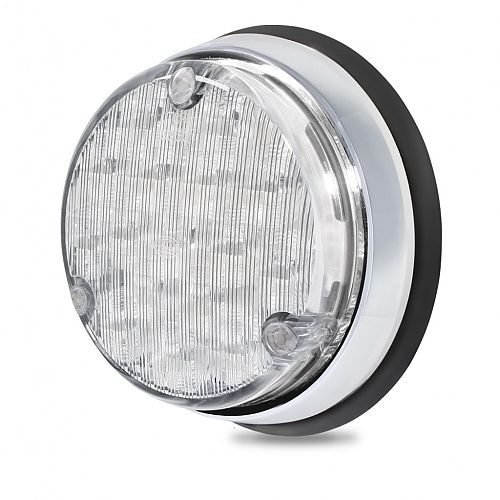

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Chrome Base - ECE

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Chrome Base - ECE

2BE 959 932-161

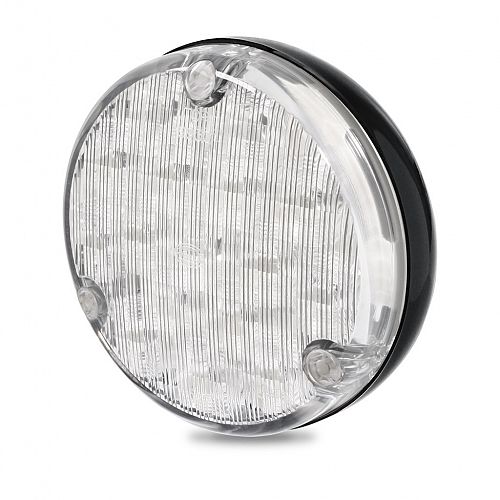

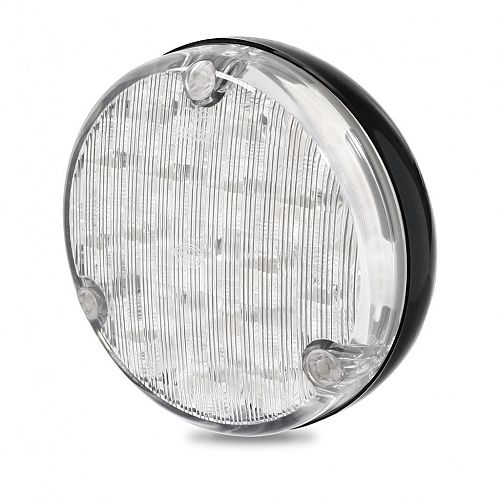

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Black Base - ECE

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Black Base - ECE

2BE 959 932-151

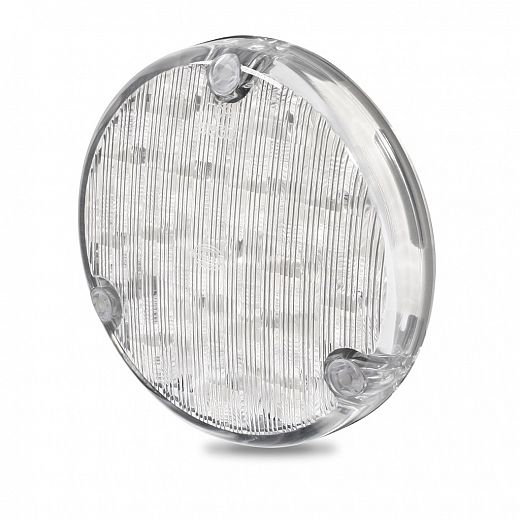

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Module - ECE

110mm Round LED Front Position/Front Direction Indicator Lamp - Clear Lens - Module - ECE

2BE 959 932-131

Specifications

Mounting

Mounting only with lens engraving “TOP” located correctly.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Front direction: 3W
Front position: <1W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 200mm of cable.

Lens Material

PMMA

Approval Markings

E24 5851 E4 10R 04-2915

Note

Pendant mount is also available. Lamp compatible with 12V DC and 24V DC HCS units.

Outline

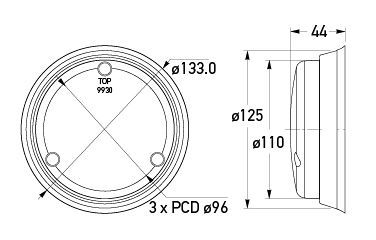

Chrome base - All dimensions in mm.
Chrome base - All dimensions in mm.

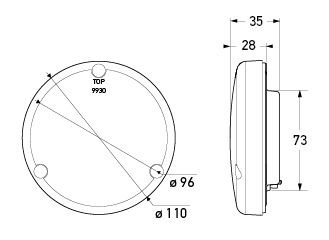

Black base - All dimensions in mm.
Black base - All dimensions in mm.

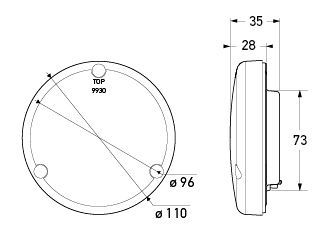

Module - All dimensions in mm.
Module - All dimensions in mm.

Documents

Document File Name File Size
  2BE 959 932-16x - 2132-CS - Instruction Sheet.pdf 579.81 KB
  2BE 959 932-15x - 2131-CS - Instruction Sheet.pdf 591.39 KB
