HELLA

LED Daytime Running Lamps - Rectangular - ECE

ECE certified LED daytime running lamp with Grilamid® lens.

2PT 980 670-801: Includes 2 LED lamps with professional wiring harness and connectors, universal mounting brackets, mounting screws and full instructions.

2PT 980 670-811: Includes 2 LED lamps complete with 2.5m three-core sheathed cable, universal mounting brackets, mounting screws and full instructions.

To view product designed for the New Zealand market, please click here



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Daytime Running Lamps - Rectangular - IAM Kit - ECE

LED Daytime Running Lamps - Rectangular - IAM Kit - ECE

2PT 980 670-801
LED Daytime Running Lamps - Rectangular - SOE Kit - ECE

LED Daytime Running Lamps - Rectangular - SOE Kit - ECE

2PT 980 670-811
LED Daytime Running Lamp - Rectangular - ECE

LED Daytime Running Lamp - Rectangular - ECE

2PT 980 670-001

Specifications

Mounting

Suitable for horizontal, pendant or upright mounting.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

<2W

Protection

Reverse polarity and spike protected
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

2PT 980 670-001/...801 Pre-wired with 500mm of sheathed multi-core cable.
2PT 980 670-811 Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Approval Markings

E24 0002 E4 10R 04-2902

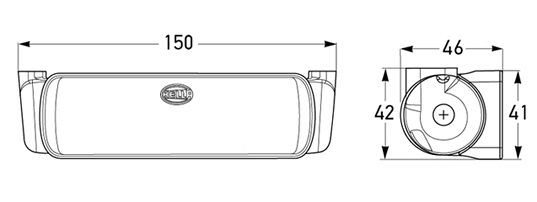

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2PT 980 670-801 Instruction Sheet.pdf 949.66 KB
  2PT 980 670-811 Instruction Sheet.pdf 844.14 KB
  2PT 980 670-001 Instruction Sheet.pdf 977.93 KB
