HELLA

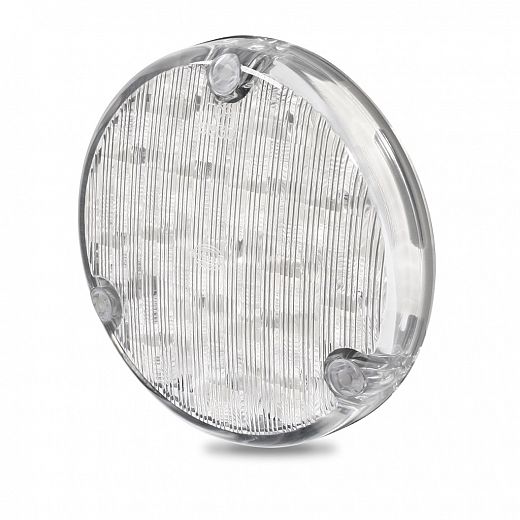

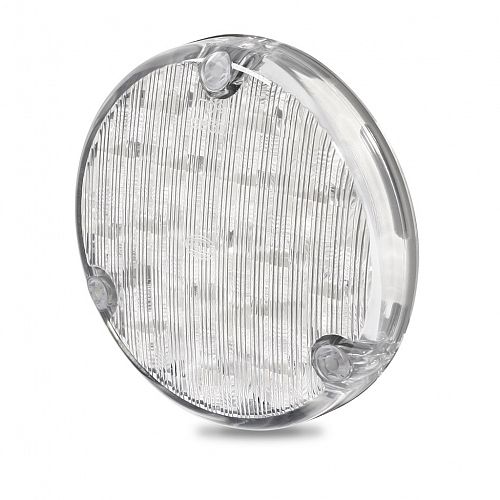

110mm Round LED Reversing Lamp - SAE

Low profile LED reversing lamp specifically designed for commercial transport applications.

To view product designed for the New Zealand market, please click here



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

110mm Round LED Reversing Lamp - Module

PART NO: 2ZR 959 930-801

Specifications

Mounting

Mounting only with lens engraving “TOP” located correctly.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W

Protection

Reverse polarity and 1500 watt Transient Voltage Suppressor (TVS)
Sealed against dust and water ingress.

Cable Length

Pre-wired with 200mm of cable.

Lens Material

PMMA

Approval Markings

SAE R 06 DOT

Note

Reversing lamp is not designed for continuous use.

Outline

Module - All dimensions in mm.
Module - All dimensions in mm.

Top
