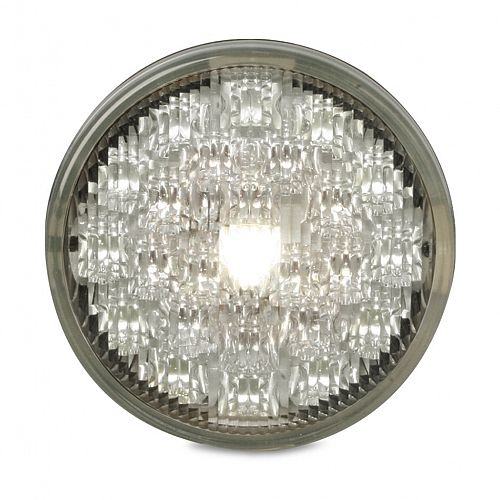

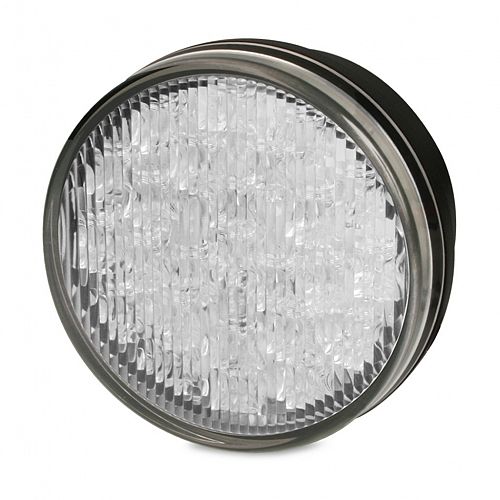

83mm Round LED Front Direction Indicator/Front Position Lamp - ECE

ECE certified LED front direction indicator/ front position lamp with clear lens. Specifically designed for commercial transport applications. Equipped with LEDs for low power consumption and acrylic lens for superior UV and impact resistance. Direction indicator optic appears clear until illuminated.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Front Direction Indicator/Front Position Lamp - 12 Volt

83mm Round LED Front Direction Indicator/Front Position Lamp - 12 Volt

2BE 980 691-301
83mm Round LED Front Direction Indicator/Front Position Lamp - 12 Volt - Bulk pack 10

83mm Round LED Front Direction Indicator/Front Position Lamp - 12 Volt - Bulk pack 10

2BE 980 691-307
83mm Round LED Front Direction Indicator/Front Position Lamp - 24 Volt

83mm Round LED Front Direction Indicator/Front Position Lamp - 24 Volt

2BE 980 690-301
83mm Round LED Front Direction Indicator/Front Position Lamp - 24 Volt - Bulk pack 10

83mm Round LED Front Direction Indicator/Front Position Lamp - 24 Volt - Bulk pack 10

2BE 980 690-307

Specifications

Mounting

Single bolt 1/4" Stainless UNC thread. Nut and washer supplied.

Power Consumption

  12V 24V
Front indicator: 3W 4W
Front position: 1W 1W

Protection

Reverse polarity, spike and over voltage protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E24 5854 E4 10R 04-2907

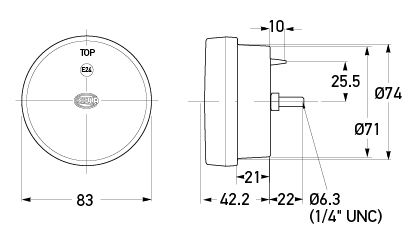

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2BE 980 690-30x Instruction Sheet.pdf 495.14 KB
