HELLA

EuroLED® Reversing Lamp - ECE

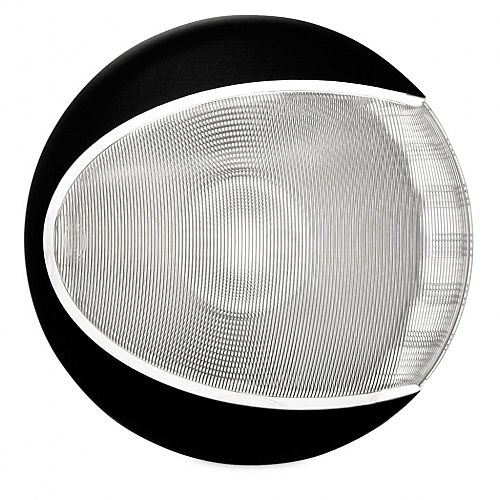

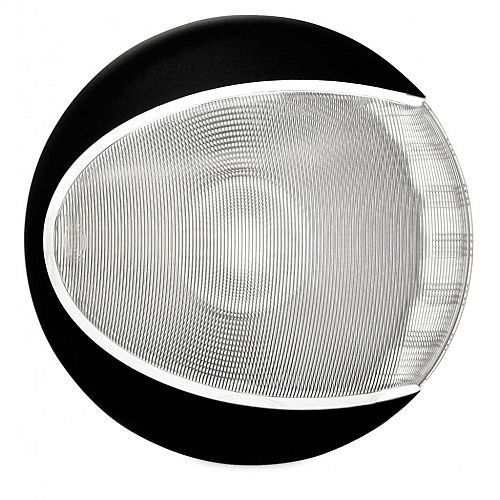

Low profile round LED reversing lamp with single LED and clear lens.

To view product designed for the New Zealand market, please click here



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

EuroLED<sup>®</sup> Reversing Lamp - Black Cover

EuroLED® Reversing Lamp - Black Cover

2ZR 959 820-601
EuroLED<sup>®</sup> Reversing Lamp - White Cover

EuroLED® Reversing Lamp - White Cover

2ZR 959 820-611

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

2.5W

Protection

Reverse polarity and 1500 watt Transient Voltage Suppressor (TVS)
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E4 10208 E4 10R 04-2894

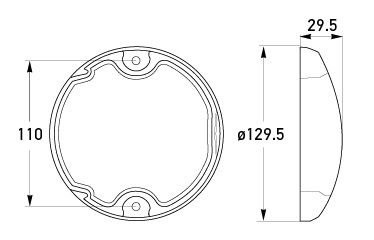

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2ZR 959 820-6xx Instruction Sheet.pdf 437.57 KB
