HELLA

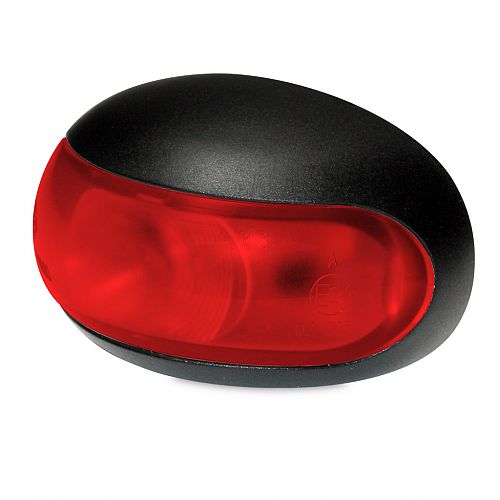

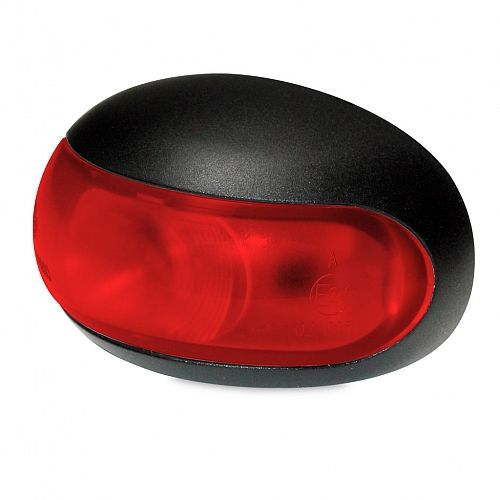

DuraLED® Rear Position/End Outline Lamp - ECE

DuraLED® Red rear position or end outline (REOL) LED lamp.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Product is compliant with China Compulsory Certification (CCC) Standards.

CCC

Product is compliant with China Compulsory Certification (CCC) Standards.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED<sup>®</sup> Rear Position/End Outline Lamp - 500mm Cable - Pack of 2 - ECE

DuraLED® Rear Position/End Outline Lamp - 500mm Cable - Pack of 2 - ECE

2XA 959 560-401
DuraLED<sup>®</sup> Rear Position/End Outline Lamp - 500mm Cable - Pack of 16 - ECE

DuraLED® Rear Position/End Outline Lamp - 500mm Cable - Pack of 16 - ECE

2XA 959 560-407
DuraLED<sup>®</sup> Rear Position/End Outline Lamp - 5m Cable - Pack of 2 - ECE

DuraLED® Rear Position/End Outline Lamp - 5m Cable - Pack of 2 - ECE

2XA 959 560-411
DuraLED<sup>®</sup> Rear Position/End Outline Lamp - 5m Cable - Pack of 10 - ECE

DuraLED® Rear Position/End Outline Lamp - 5m Cable - Pack of 10 - ECE

2XA 959 560-417

Specifications

Mounting

Surface mount. Suitable for horizontal mounting only.

Voltage

Multivolt™ for optimum brightness at input voltage from 8 to 28 volts.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

2XA 959 560-40x Pre-wired with 500mm of sheathed multi-core cable.
2XA 959 560-41x Pre-wired with 5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E4 02 7574 E4 10R 04-2906

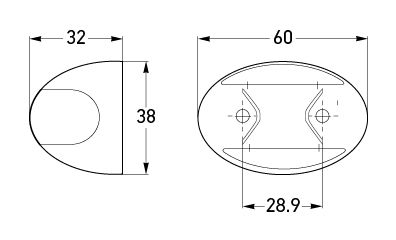

Outline

All dimensions in mm.
All dimensions in mm.
