HELLA

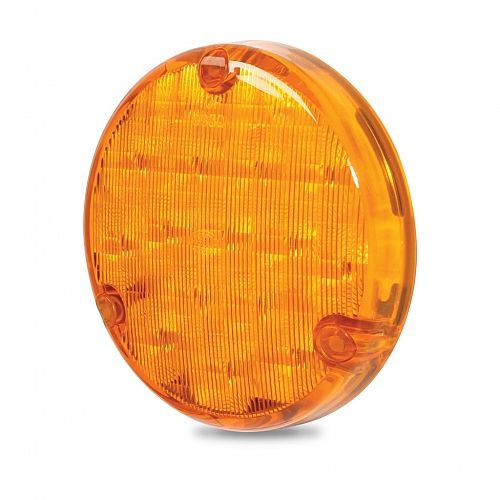

110mm Round LED Front Turn Signal Lamp - SAE

Low profile LED front turn signal lamp specifically designed for commercial transport applications. Features high-intensity LEDs and high impact acrylic lens for superior light output and impact resistance.

To view product designed for the New Zealand market, please click here



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

110mm Round LED Front Turn Signal Lamp - Chrome Base

110mm Round LED Front Turn Signal Lamp - Chrome Base

2BA 959 932-421
110mm Round LED Front Turn Signal Lamp - Black Base

110mm Round LED Front Turn Signal Lamp - Black Base

2BA 959 932-411
110mm Round LED Front Turn Signal Lamp - Module

110mm Round LED Front Turn Signal Lamp - Module

2BA 959 932-401

Specifications

Mounting

Mounting only with lens engraving “TOP” located correctly.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and 1500 watt Transient Voltage Suppressor (TVS)
Sealed against dust and water ingress.

Cable Length

Pre-wired with 200mm of cable.

Lens Material

PMMA

Approval Markings

SAE I6 08 DOT

Note

Clear lens or pendant mount is also available.

Outline

Chrome base - All dimensions in mm.
Chrome base - All dimensions in mm.
Black base - All dimensions in mm.
Black base - All dimensions in mm.
Module - All dimensions in mm.
Module - All dimensions in mm.
