HELLA

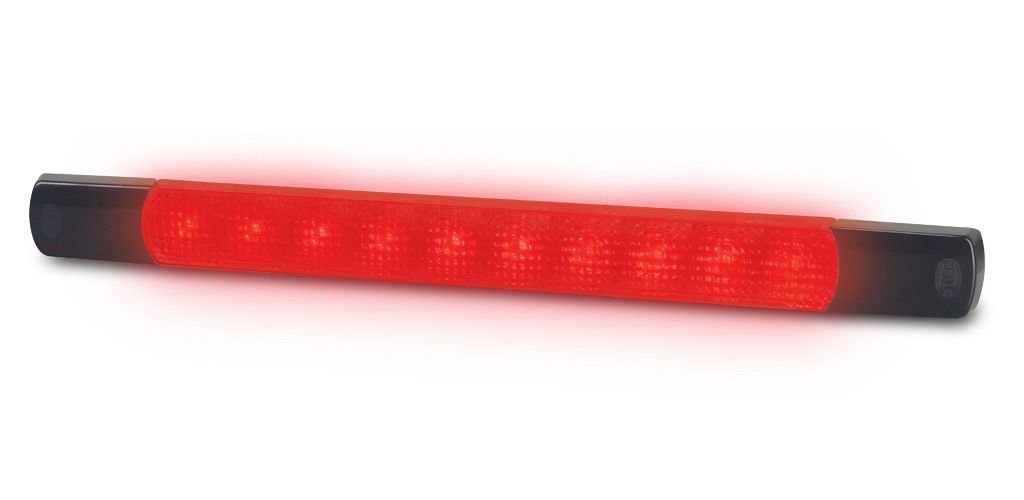

LED Rear Fog Lamp - Surface Mount - ECE

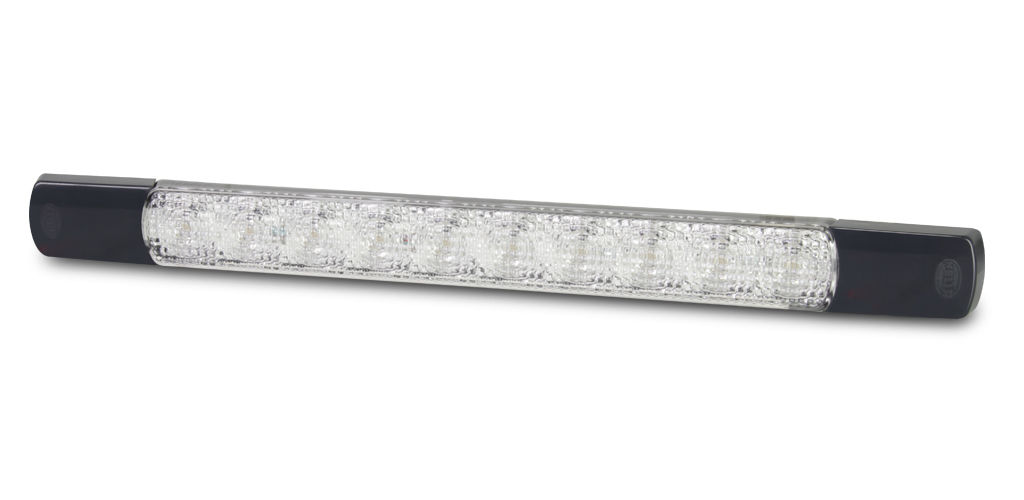

Surface mount rear fog lamp featuring a low profile, ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

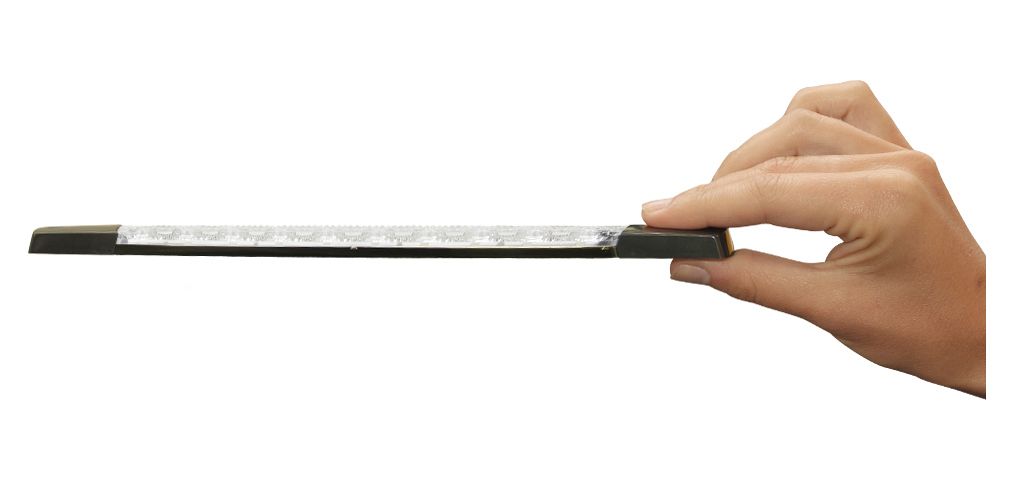

• Ultra slim with a profile height of only 11mm.
• Low power consumption.
• Grilamid® lens.
• Ultra long service life.
• Surface mount.

Features RFCommSafe™
To view and download more information please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Rear Fog Lamp - Slim Surface Mount - 12 Volt - ECE

PART NO: 2NE 980 889-501

LED Rear Fog Lamp - Slim Surface Mount - 24 Volt - ECE

PART NO: 2NE 980 889-601

Specifications

Mounting

Suitable for horizontal and vertical mounting.

Power Consumption

3W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Spare Part

9HD 980 885-008 White screw caps (MOQ 4)
9HD 980 885-018 Charcoal screw caps (MOQ 4)
9HD 980 885-108 Chrome plated screw caps (MOQ 4)

Approval Markings

E24 0010 E4 10R 04-2910

Outline

All dimensions in mm.
All dimensions in mm.
Hole pattern. All dimensions in mm.
Hole pattern. All dimensions in mm.

Documents

Document File Name File Size
  2NE 980 889-xxx_Instruc_Rear_Fog_Strip_Lamp.pdf 1.20 MB
