LED Rear Position/End Outline Lamp - ECE

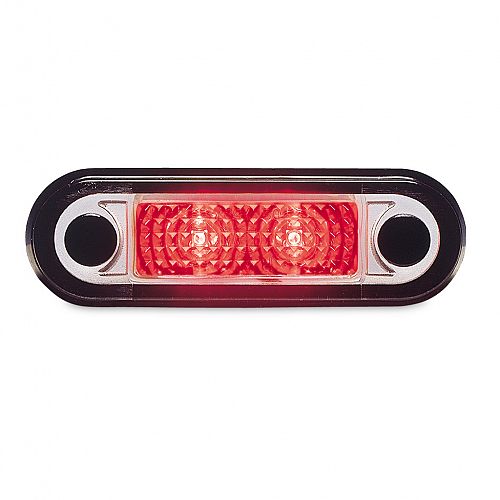

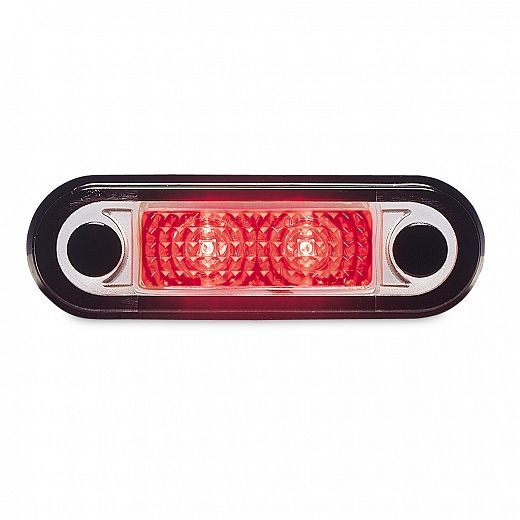

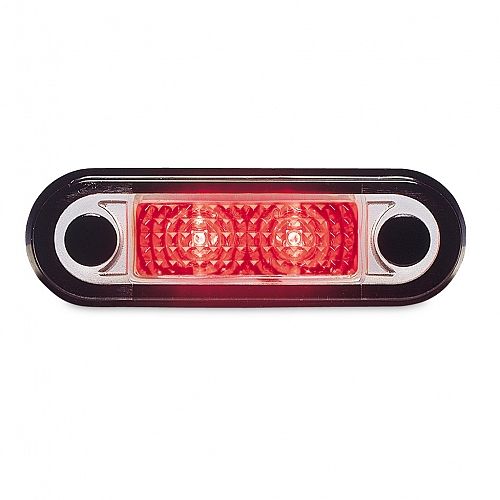

Flush mount red rear end outline (REOL) or rear position LED lamp.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Rear Position/End Outline Lamp - 500mm Cable - Pack of 2 - ECE

LED Rear Position/End Outline Lamp - 500mm Cable - Pack of 2 - ECE

2XA 959 790-401
LED Rear Position/End Outline Lamp - 500mm Cable - Pack of 30 - ECE

LED Rear Position/End Outline Lamp - 500mm Cable - Pack of 30 - ECE

2XA 959 790-407
LED Rear Position/End Outline Lamp - 5m Cable - Pack of 2 - ECE

LED Rear Position/End Outline Lamp - 5m Cable - Pack of 2 - ECE

2XA 959 790-411
LED Rear Position/End Outline Lamp - 5m Cable - Pack of 10 - ECE

LED Rear Position/End Outline Lamp - 5m Cable - Pack of 10 - ECE

2XA 959 790-417

Specifications

Mounting

Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness at input voltage from 8 to 28 volts.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

2XA 959 790-40x Pre-wired with 500mm of sheathed multi-core cable.
2XA 959 790-41x Pre-wired with 5m of sheathed multi-core cable.

Lens Material

PMMA

Spare Parts

9GD 959 515-127 Flat Seal
9GD 959 515-207 Curved Seal

Approval Markings

E4 02 7597 E4 10R 04-2906

Outline

All dimensions in mm.
All dimensions in mm.
