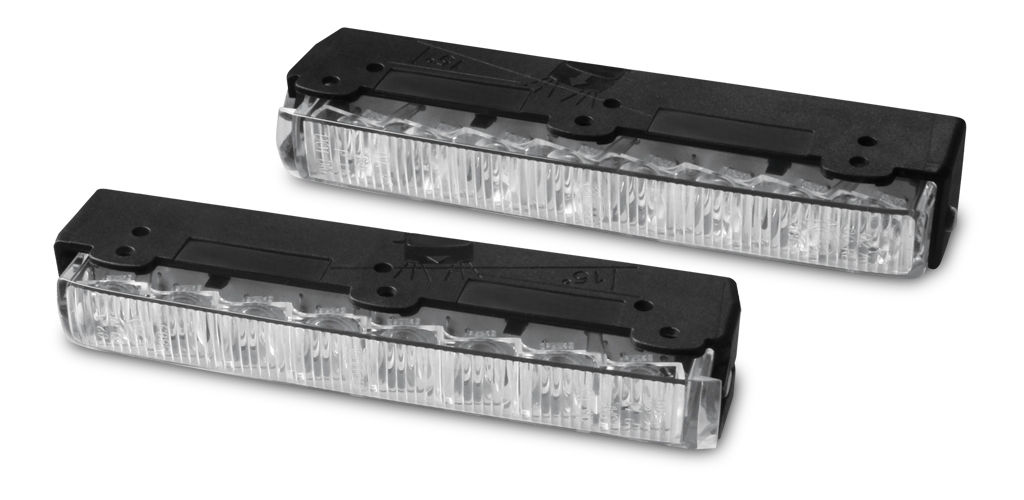

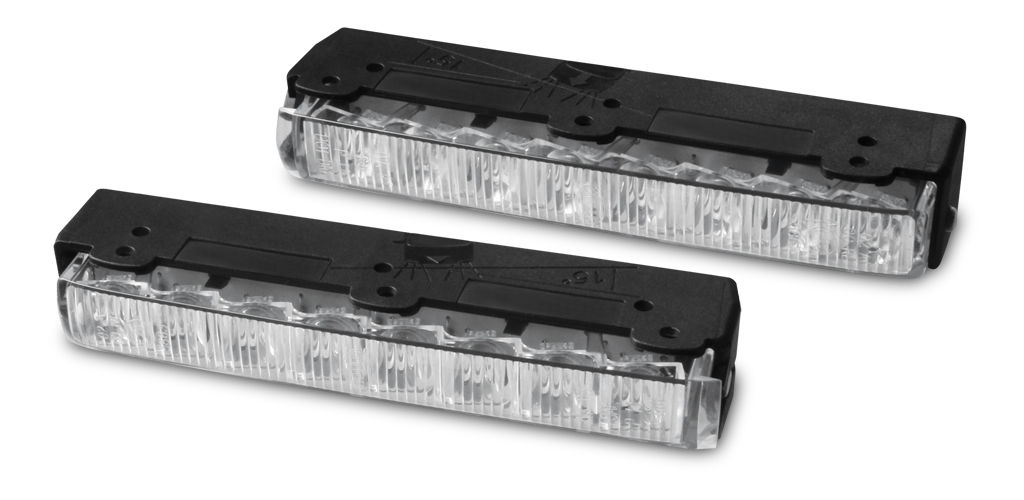

LED Daytime Running Lamps 15˚ ECE

A lens angle of 15 degrees allows installation as close as possible to the corners of a modern motor vehicle. These lamps were designed to fit the curved bumpers of modern vehicles to give the look of Original Equipment fitment. The lamps have extremely low power consumption at 2W per lamp and high impact acrylic lenses to protect against impact damage.

Features RFCommSafe™
To view and download more information please click here

15˚ lens angle allows installation as close as possible to corners of the vehicle.

To view product designed for the New Zealand market, please click here

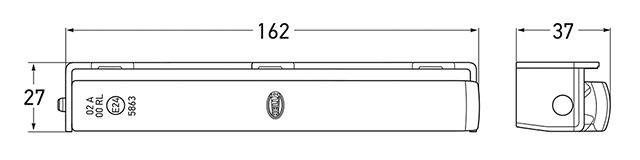

All dimensions in mm.

Rollover/tap the icons below for further details:

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Daytime Running Lamp 15˚- 12 Volt - ECE

PART NO: 2PT 980 860-001

Add to favourites

LED Daytime Running Lamp Kit 15˚- 12 Volt - ECE

PART NO: 2PT 980 860-801

Add to favourites

Specifications

Mounting

Suitable for horizontal mounting only.

Power Consumption

Protection

Reverse polarity protection.

IP 6K7	(Protection against dust and temporary water immersion)
IP 6K9K	(Protection against dust and high pressure/steam jet cleaning)

Cable Length

Single lamps are pre-wired with 2.5m of sheathed multi-core cable.
Lamps supplied with kit are pre-wired with 2.8m of sheathed multi-core cable.

Lens Material

PMMA

Spare Parts

8HG 980 864-101	Brackets (LH/RH)
5DF 980 816-001	LED DRL/PO Control Unit (12 Volt)
5DF 980 816-501	LED DRL/PO Control Unit (24 Volt)

Approval Markings

E24 5863

Kit Contents

2PT 980 860-801/...-851
2 x LED daytime running lamps
2 x Mounting brackets
6 x Mounting screws
1 x Changeover relay
1 x Instruction sheet
10 x Cable ties
4 x Accessory cable looms
