HELLA

110mm Round LED Reversing Lamp

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

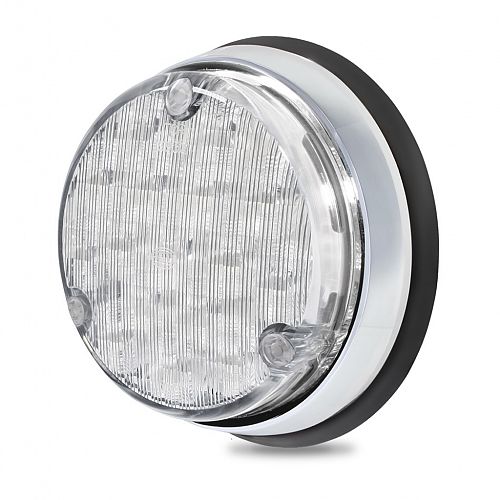

110mm Round LED Reversing Lamp - Chrome Base

110mm Round LED Reversing Lamp - Chrome Base

1459

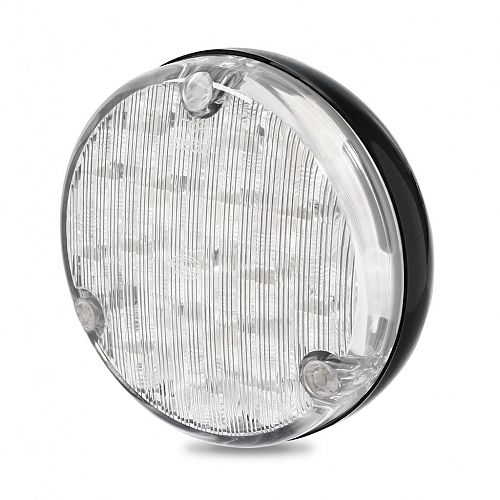

110mm Round LED Reversing Lamp - Black Base

110mm Round LED Reversing Lamp - Black Base

1467

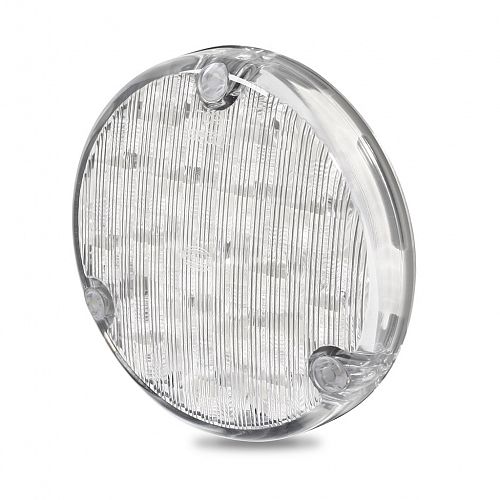

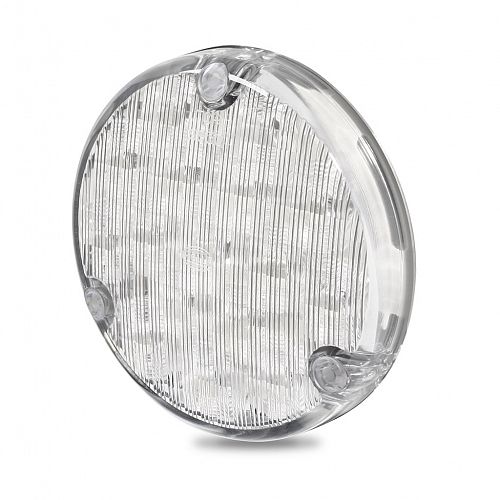

110mm Round LED Reversing Lamp - Module

110mm Round LED Reversing Lamp - Module

1465

Specifications

Mounting

Mount only with lens engraving "TOP" located correctly.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W

Protection

Reverse polarity and 1500 watt Transient Voltage Suppressor (TVS).
IP 6K6   (Protection against dust and high pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 1/00

Note

Reversing lamps are not designed for continuous operation.

Outline

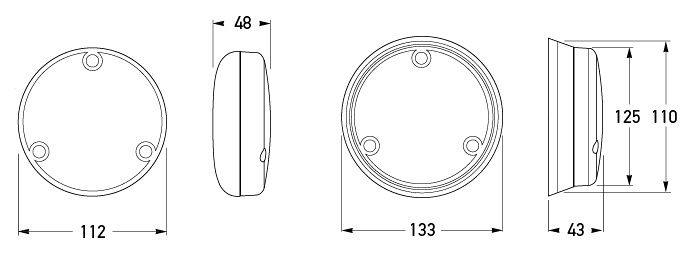

Left to right: Black base and Chrome base diagrams. All dimensions in mm.
Left to right: Black base and Chrome base diagrams. All dimensions in mm.

Documents

Document File Name File Size
  1459 Instruction Sheet.pdf 258.41 KB
  1467 Instruction Sheet.pdf 260.69 KB
  1465 Instruction Sheet.pdf 294.94 KB
