HELLA

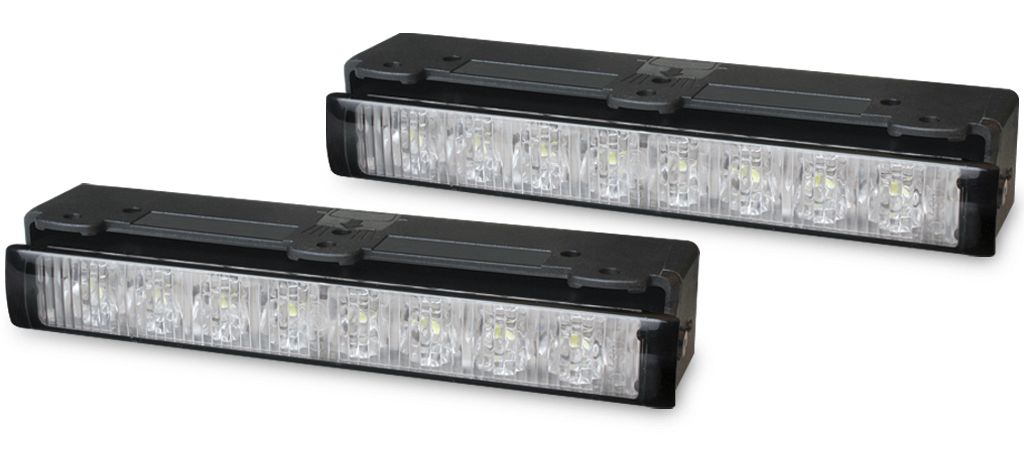

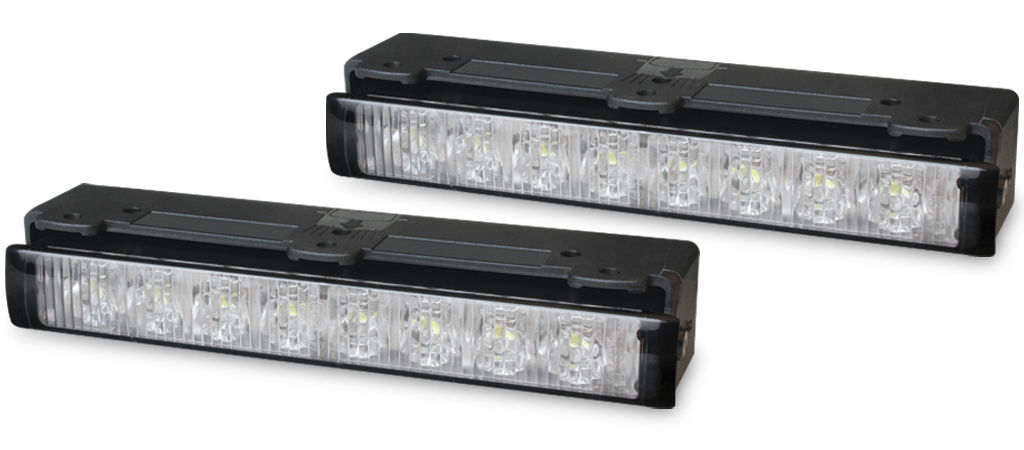

LED Safety DayLights™ - Easy-Fit

Be safe. Be seen. With HELLA’s Safety DayLights™. The forward facing signal lamps enhance the visibility of your vehicle significantly to other road users during daylight hours and thereby reduce the risk of an ‘accidental oversight’ collision. Failure to see a vehicle approaching, especially at intersections, has been identified as one of the most significant factors in daytime accidents.

Perpendicular   Designed to be mounted on vehicles with flat
fronts or motorbikes.


Easy-Fit installation

No extra parts required. LED lamp clips easily into place once wiring is complete and bracket is fitted.

“Never forget” safety enhancement
Safety DayLights™ will automatically switch ON once ignition is activated and turn OFF when headlights or park lamps are turned on.

Maximal visibility – Minimal power consumption
With a super low power consumption of only 2 watt the LED lights use 95 % less energy than dipped beam headlamps, saving 0.2 litres of fuel per 100 km.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Approved for use in New Zealand and Australia

See HELLA’s Safety DayLights™ Smart Controllers.
Designed to simplify Installation

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Safety DayLights™ Kit - Easy-Fit - 12 Volt

LED Safety DayLights™ Kit - Easy-Fit - 12 Volt

5636

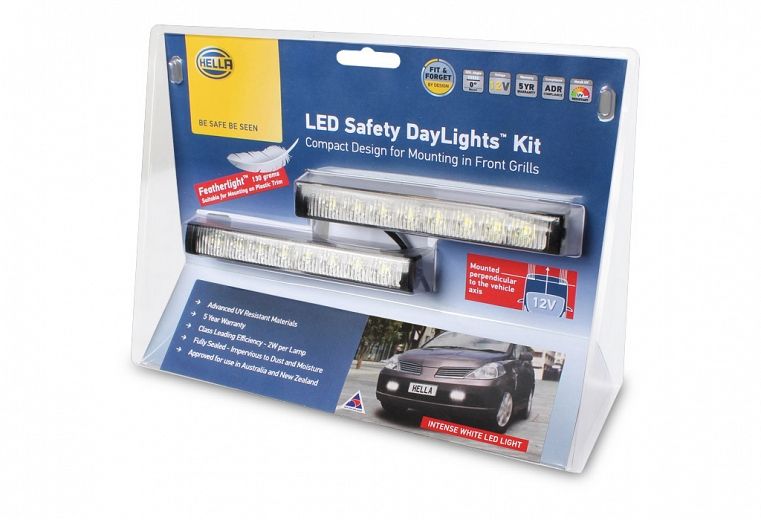

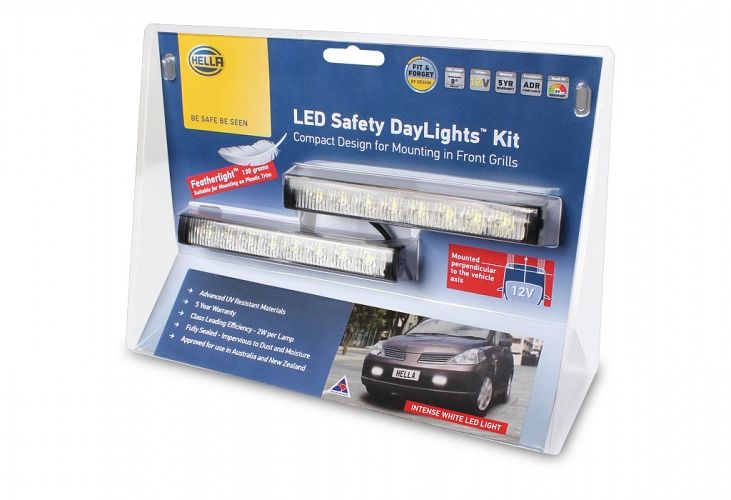

LED Safety DayLights™ Kit - Easy-Fit - 12 Volt, Blister pack

LED Safety DayLights™ Kit - Easy-Fit - 12 Volt, Blister pack

5636-BL
LED Safety DayLights™ Kit - Easy-Fit - 24 Volt

LED Safety DayLights™ Kit - Easy-Fit - 24 Volt

5636-24V
LED Safety DayLight™ - Easy-Fit - 12 Volt

LED Safety DayLight™ - Easy-Fit - 12 Volt

1013
LED Safety DayLight™ - Easy-Fit - 24 Volt

LED Safety DayLight™ - Easy-Fit - 24 Volt

1013-24V

Specifications

Mounting

Suitable for horizontal mounting.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7      (Protection against dust and temporary water immersion)
IP 6K9K    (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

1013 Single lamp 12V
1013-24V Single lamp 24V

Lens Material

High impact acrylic.

Compliance

ADR 76/00 E24 5875 ECE R87/00

Kit Contents

LED Safety DayLights™ Kit   LED Safety DayLights™ Kit - Blister Pack
P/Ns 5636 / 5636-24V   P/N *5636-BL
2 x LED Safety DayLights™   2 x LED Safety DayLights™
2 x Mounting brackets   2 x Mounting brackets
6 x Mounting screws   6 x Mounting screws
1 x Changeover relay   1 x Advanced smart controller relay
1 x Instruction sheet   1 x Terminal kit
    1 x Instruction sheet

* 5636-BL available with retail blister packaging including P/N 3090 Advanced Smart Controller Relay.

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  5636 Instruction Sheet.pdf 445.92 KB
