HELLA

LED Spoiler Centre High Mount Stop Lamp - ECE / SAE

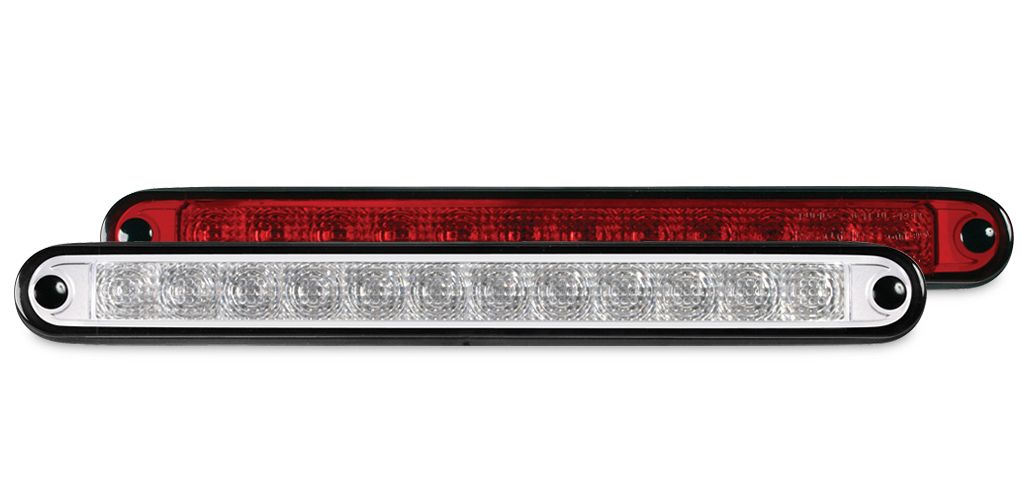

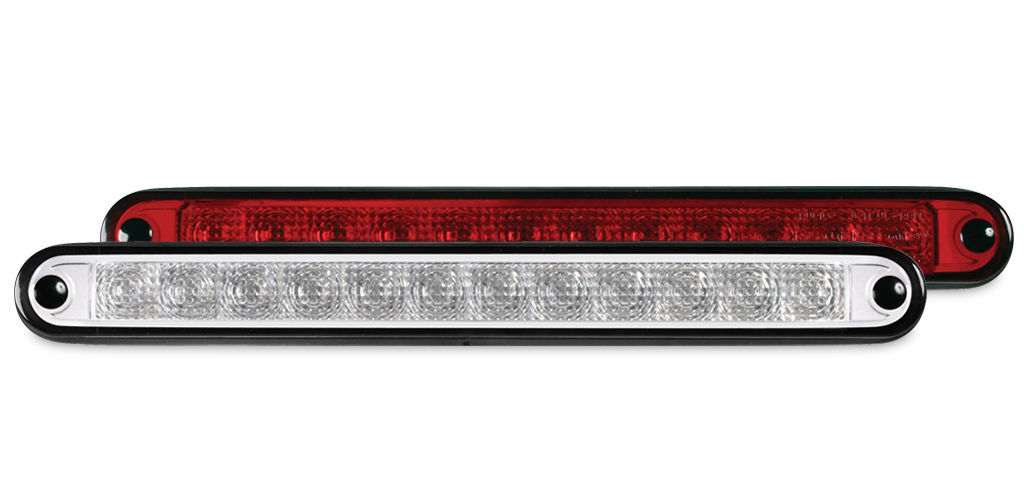

Spoiler or exterior mounted 12 LED centre high mount stop lamp, available with a red or clear lens. Pack of 10 lamps.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Product is compliant with China Compulsory Certification (CCC) Standards.

CCC

Product is compliant with China Compulsory Certification (CCC) Standards.

12 LED

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

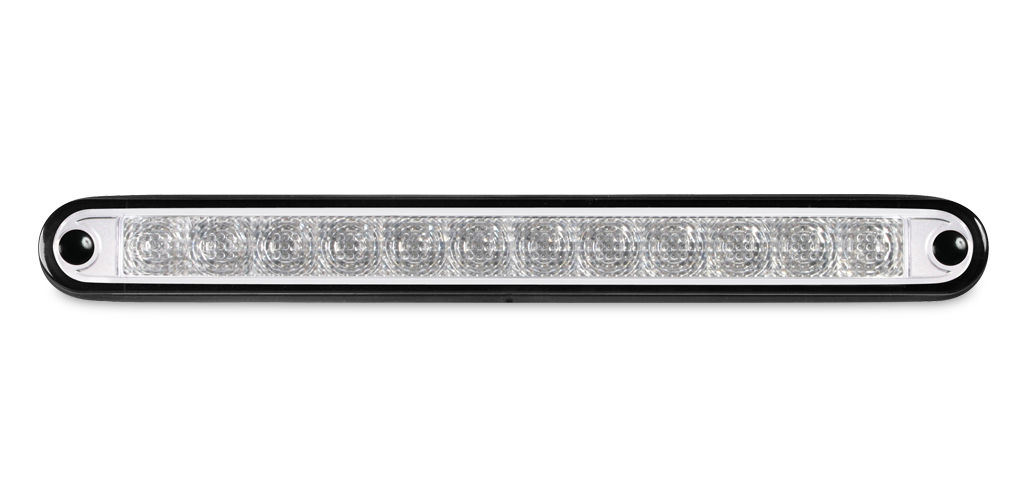

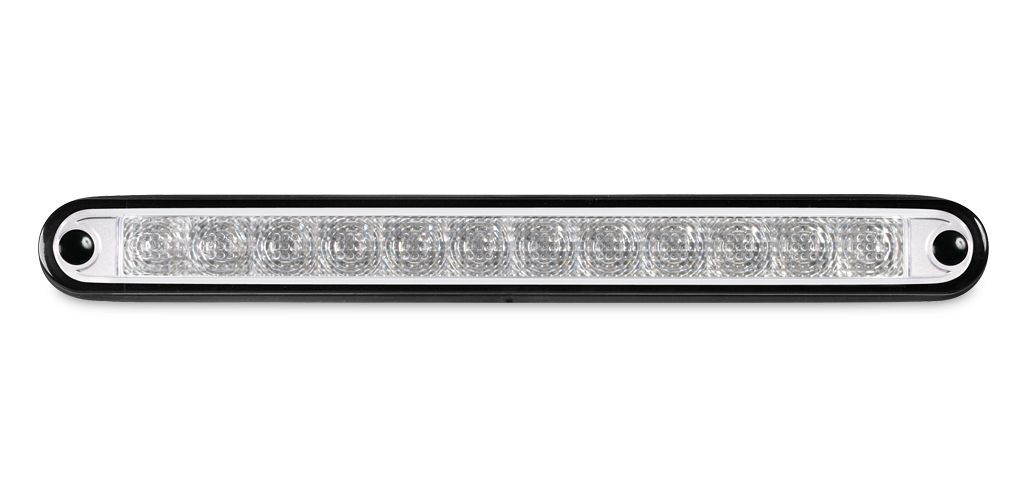

LED Spoiler Centre High Mount Stop Lamp - Clear Lens - 12 Volt - ECE / SAE

LED Spoiler Centre High Mount Stop Lamp - Clear Lens - 12 Volt - ECE / SAE

2DA 959 071-077
LED Spoiler Centre High Mount Stop Lamp - Clear Lens - 24 Volt - ECE / SAE

LED Spoiler Centre High Mount Stop Lamp - Clear Lens - 24 Volt - ECE / SAE

2DA 959 071-277

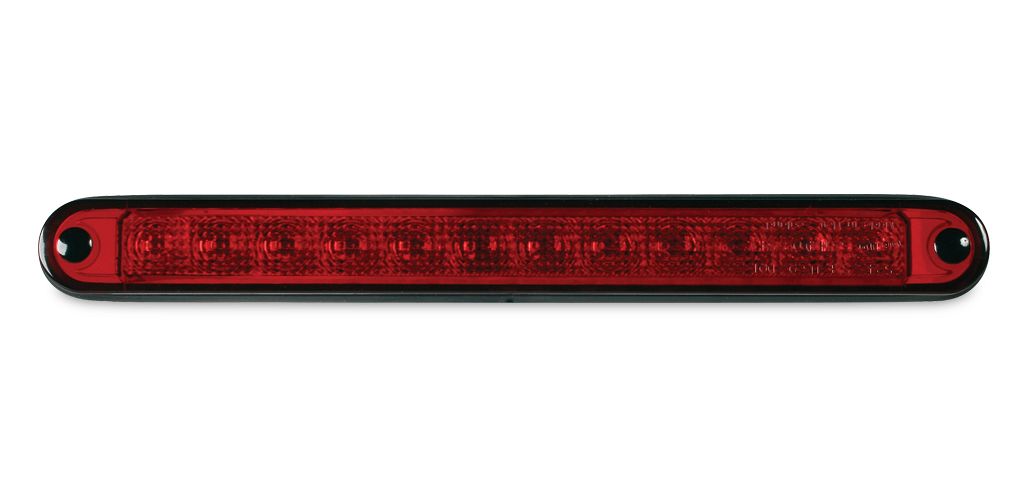

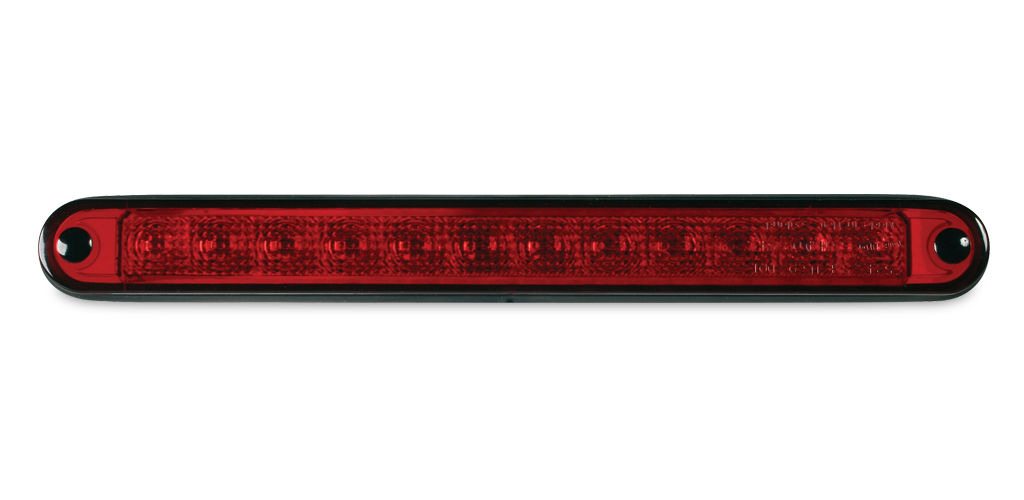

LED Spoiler Centre High Mount Stop Lamp - Red Lens - 12 Volt - ECE / SAE

LED Spoiler Centre High Mount Stop Lamp - Red Lens - 12 Volt - ECE / SAE

2DA 959 071-577
LED Spoiler Centre High Mount Stop Lamp - Red Lens - 24 Volt - ECE / SAE

LED Spoiler Centre High Mount Stop Lamp - Red Lens - 24 Volt - ECE / SAE

2DA 959 071-777

Specifications

Mounting

Suitable for horizontal mounting only. Two hole recess mount.

Voltage

12V DC and 24V DC versions are available.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E4 02 7547  SAE U3 97 DOT

Note

CCC marked versions are available upon request.

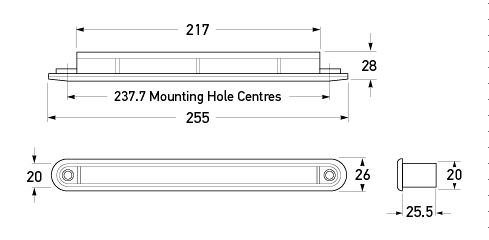

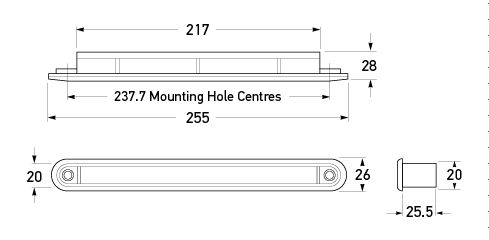

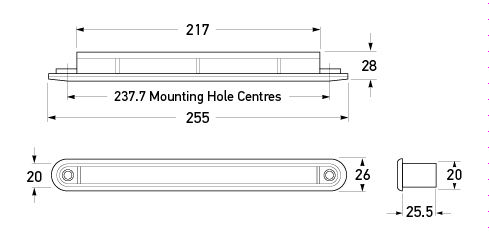

Outline

All dimensions in mm.
All dimensions in mm.
