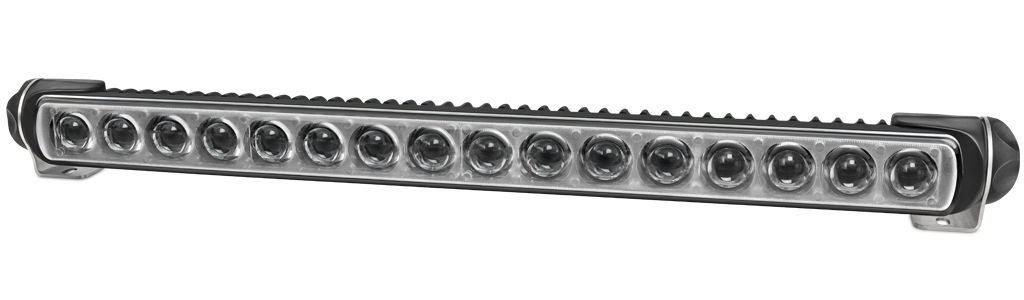

LED Light Bar 470 - HD Bracket

After the success of the HELLA LED Light Bar 350, HELLA is introducing the longer and brighter brother, the LED Light Bar 470. The new lamp features all the outstanding properties of the previous model plus an additional four high performance automotive standard LED’s and a maximum luminous intensity of 166,000 candela at a power consumption of only 35 watts.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref. 25 with 1 lux at approx. 330 metres) and Pencil Beam (Ref. 37.5 with 1 lux at approx. 410 metres). With only 950g weight the Light Bar is particularly popular for roof mount applications on ATV’s and Off-road vehicles.

The non corrosive, thermally conductive housing is highly resistant to degradation and due to its slim profile, this streamline Light Bar is ideal for applications where aerodynamic styling are a valued attribute. The flexible, adjustable mounting system ensures easy installation. The Light Bar features a Multivolt™ circuit for optimum brightness at a wide range of input voltages from 9 to 33 volts and is fully road legal with ECE approval.

• 16 high performance automotive grade LEDs
• Maximum luminous intensity of 166,000 candela
• Approved for use in New Zealand and Australia
• Low power consumption
• Highly adaptable mounting system
• Thermally conductive non-metal housing
• Light weight of only 950g


To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

16 LED

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 470 - HD Bracket - High Beam

LED Light Bar 470 - HD Bracket - High Beam

1397HD
LED Light Bar 470 - HD Bracket - Pencil Beam

LED Light Bar 470 - HD Bracket - Pencil Beam

1398HD

Specifications

Mounting

Horizontal mounting. Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

35W

Maximum Luminous Intensity

1397HD: 113,000 candela
1398HD: 166,000 candela

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Spare Parts

P/N 8HG 958 128-811 Double stainless steel mounting feet (one pair)
P/N 8HG 958 139-071 Single spare end bracket kit

Compliance

  E24 1947  R10/04

CE

1397HD: E24 0012  R112/01  Ref. 25
1398HD: E24 0013  R112/01  Ref. 37.5

Contents

1 x LED Light Bar 470 2 x HD mounting brackets 1 x Instruction booklet

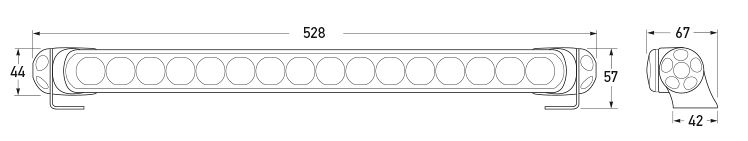

Outline

All dimensions in mm.
All dimensions in mm.

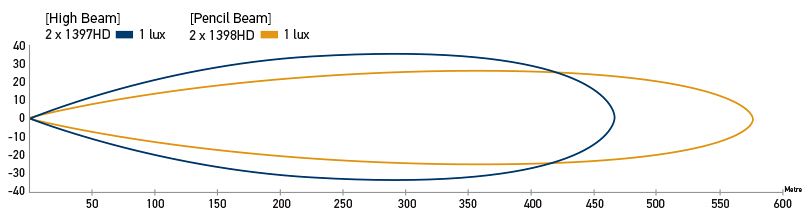

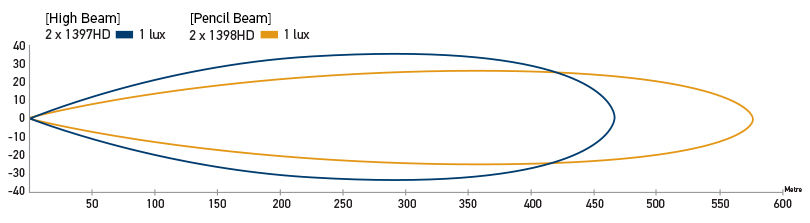

Light Output

LED Light Bar 470. Recorded with two lamps. Distance in metres.
LED Light Bar 470. Recorded with two lamps. Distance in metres.
