HELLA

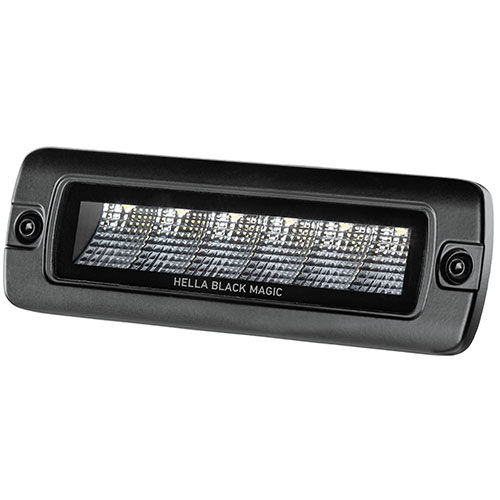

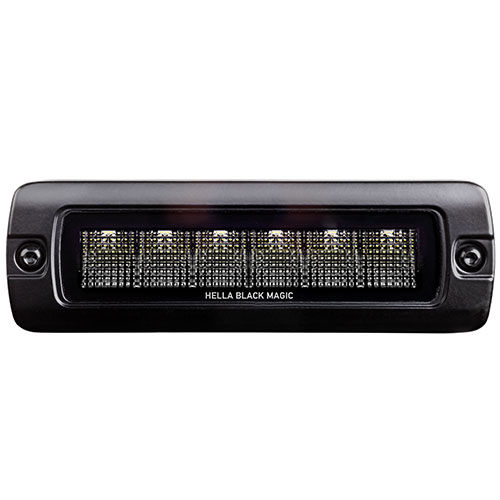

Black Magic Mini Light Bars Flush Mount

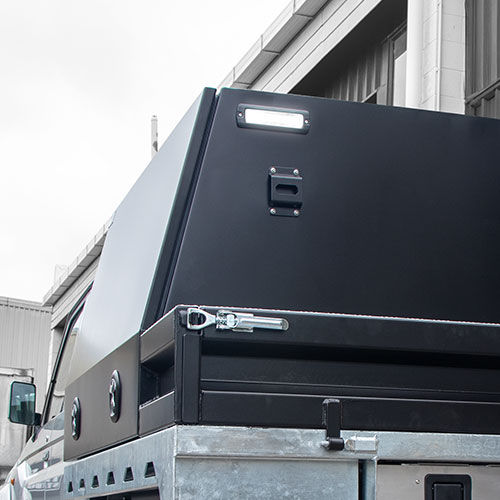

Full blackout appearance and sleek design that stands out from the crowd. The 6.2" Flush Mount Mini Light Bar can be easily integrated into the body work or bumper of your vehicle.

Impact and shock resistant, with IP 68 and IP 69K ratings for dust and water and backed by a 2 year warranty.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

• Flush Mount Design
• 2000 lumen output
• Full Blackout Appearance

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

Mini Light Bar 6.2" Flush Mount (Flood)

PART NO: 1FB 358 176-221

Specifications

Mounting

Flush Mount

Voltage

Multi-voltage suitable for 12 or 24V DC applications

Max Power Consumption

30W

Max Light Output

2000 lumen

Colour Temperature

5700K

Cable Length

800mm cable with open ends

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

505g

Housing

Aluminium

Compliance

CE, ECE R10

CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Documents

Document File Name File Size
  Black Magic Mini Light Bar Flush Mount Release_Web.pdf 387.39 KB
