HELLA

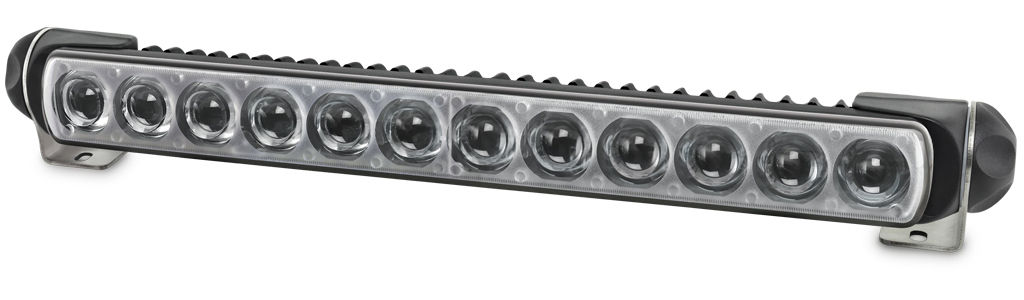

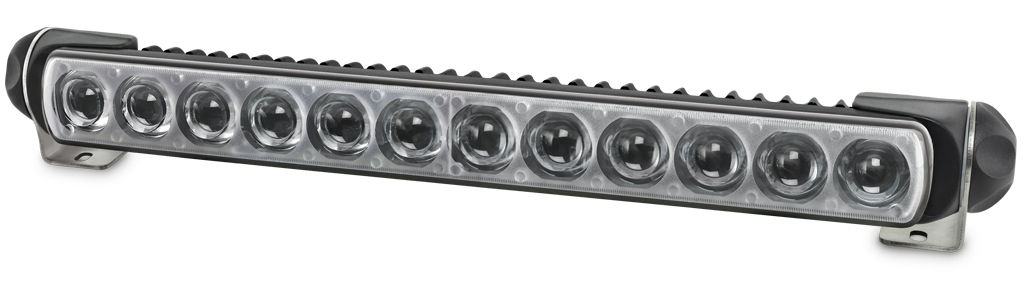

LED Light Bar 350 with HD Bracket

HELLA’s popular LED Light Bar 350 is now also available with a heavy duty bracket that will suit most vehicle installations. It is easy to mount and adjust and therefore ideal for numerous applications. Made of stainless steel, the new heavy duty bracket is ultra durable and non corrosive and the perfect choice for on and off road and applications in harsh environments.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref. 20 with 1 lux at approx. 320 metres) and Pencil Beam (Ref. 30 with 1 lux at approx. 380 metres).

The hermetically sealed and submersible Light Bar features a Multivolt™ circuit for optimum brightness at input voltages from 9 to 33 volts. It is fully road legal with ECE approval and comes with a comprehensive 5 year warranty, making the light bar the ideal choice for applications where durability and reliability are essential.

SEMA Global Media Awards - Winner   • 12 high performance automotive grade LEDs
• Approved for use in New Zealand and Australia
• Maximum luminous intensity of 145,000 candela
• Low power consumption
• Highly adaptable mounting system
• Available with stainless steel mounting brackets
Thermally conductive non-metal housing
• Light weight of only 700g


To find a HELLA reseller near you, click here.



 View below the Number Plate Brackets which suit the LED Light Bar Range:

 Number Plate Bracket for Light Bars



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 LED

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 350 with HD Bracket - High Beam

PART NO: 1FJ 958 040-031
Legacy PN: 1395HD

LED Light Bar 350 with HD Bracket - Pencil Beam

PART NO: 1FJ 958 040-041
Legacy PN: 1396HD

Specifications

Mounting

Horizontal mounting. Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

25W

Maximum Luminous Intensity

1395HD:   96,000 candela
1396HD: 145,000 candela

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Spare Parts

8HG 958 128-811 Double stainless steel mounting feet (one pair)
8HG 958 139-071 Single spare end bracket kit

Compliance

  E4 2909  R10/04

CE

1395HD: E24 0008  R112/01  Ref. 20
1396HD: E24 0009  R112/01  Ref. 30

Contents

1 x LED Light Bar 350 2 x HD mounting brackets 1 x Instruction booklet

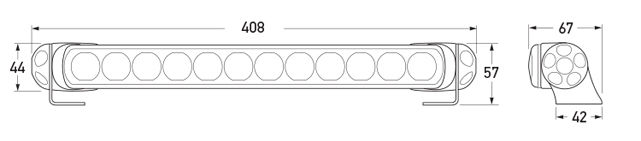

Outline

LED Light Bar 350 - HD Bracket. All dimensions in mm.
LED Light Bar 350 - HD Bracket. All dimensions in mm.

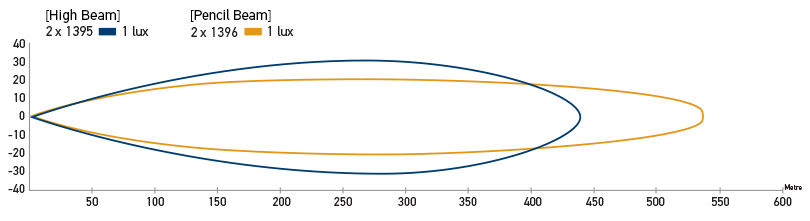

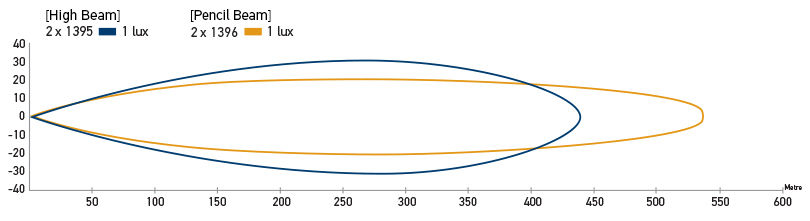

Light Output

LED Light Bar 350. Recorded with two lamps. Distance in metres.
LED Light Bar 350. Recorded with two lamps. Distance in metres.

Documents

Document File Name File Size
  LED Light Bar 350 - 139X - Instruction Sheet.pdf 4.26 MB
