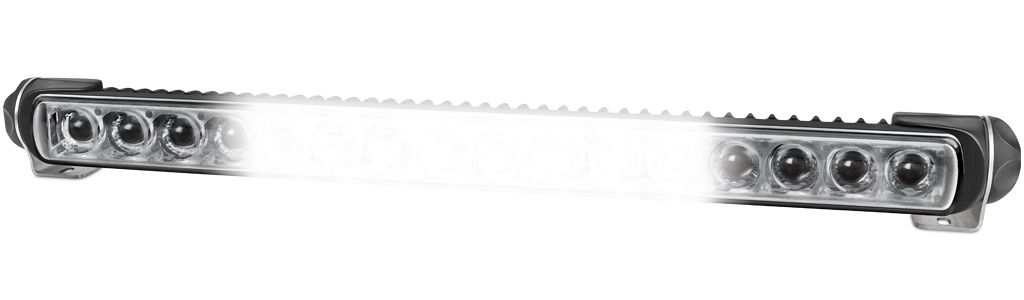

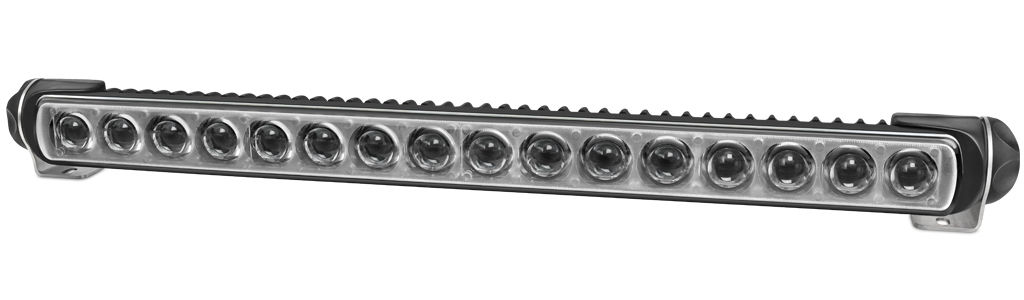

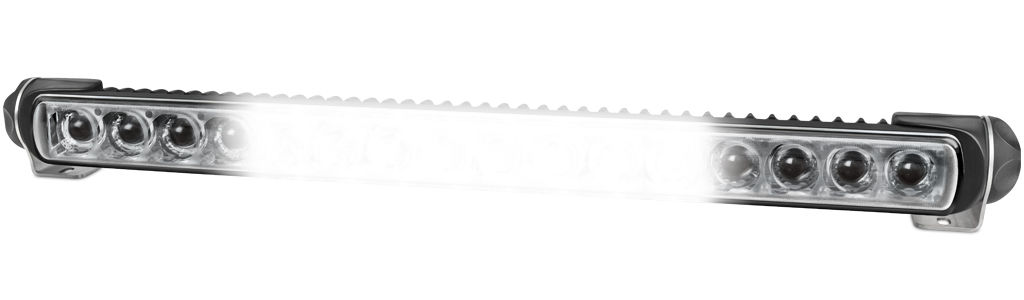

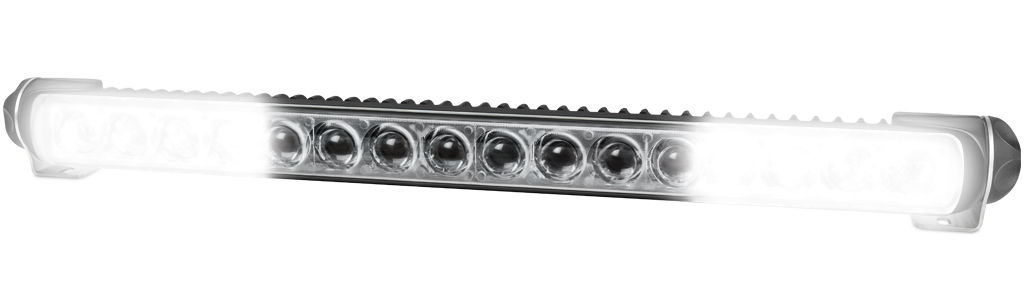

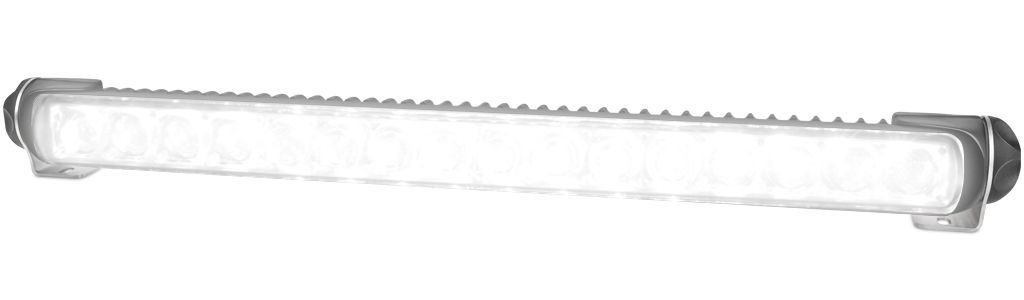

LED Light Bar 470 - Combi Work Lamp (Close Range and Long Range)

The LED Light Bar 470 Combi is a unique work lamp offering three light options: close range, long range or combined - all in a single light bar. The work lamp is a great addition to any Ute, ATV or off-road vehicle.

Only 1000g of weight means less stress on mounting locations, the low profile design will not restrict cooling airflow when fitted to the front of a vehicle - which can be a problem with larger lights. Don’t be fooled by its size though, this light bar certainly punches above its weight with its long distance and spread light output. MultivoltTM circuitry means the lamp can be used with both 12V or 24V DC systems, whilst only consuming 36W. Any input between 9 to 33 volts will give optimum brightness.

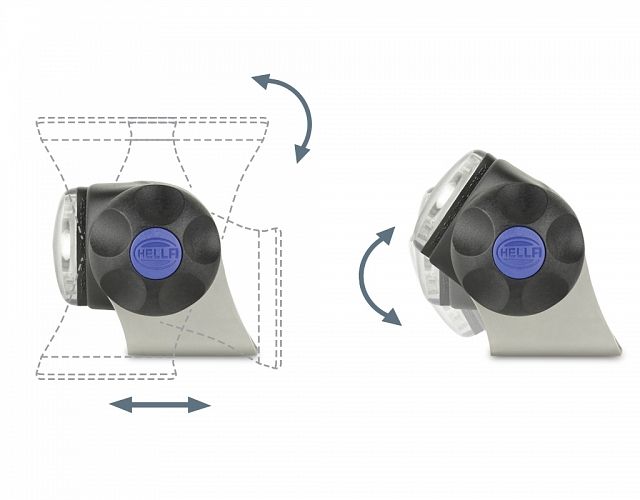

The adjustable mounting system ensures for easy installation and flexibility for any orientation. Providing unmatched corrosion resistance due to an innovative
thermally conductive polymer housing, and the toughness of a UV, chemical and impact resistant Grilamid® lens. The Combi Work Lamp is the natural choice when exceptional durability and long term reliability in demanding environments is needed.

Designed with Fit and Forget durability in mind, the completely sealed Combi Work Lamp is covered by a 5 year warranty.

NOTE: A work lamp must be switched independently of headlamps when mounted on a vehicle.

• Two separate light beams combined into a single light bar housing
• Light weight (only 1000g)
• Aerodynamic profile does not restrict cooling airflow
• Low power consumption (36W combined)
• Highly adaptable mounting system
• High resistance to corrosion
• Totally impervious to the environment

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 470 - Hybrid Work Lamp (Close Range and Long Range)

LED Light Bar 470 - Hybrid Work Lamp (Close Range and Long Range)

1599HD

Specifications

Mounting

Horizontal mounting. Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Combined: 36W
Close/Long Range: 18W/18W

Maximum Luminous Intensity

77,000 candela

Max. Light Output

2200 lumen

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Lens Material

Heavy duty Grilamid®

Accessories

8032 Number plate bracket LED Light Bar 470
8HG 958 128-811 Double stainless steel mounting feet (one pair)
8HG 958 139-071 HD single spare end bracket kit
8XS 958 337-021 LED Light Bar 470 - Clear protective cover
8XS 958 337-031 LED Light Bar 470 - Amber protective cover
8XS 958 337-111 LED Light Bar 470 - Protective cover

Compliance

CE

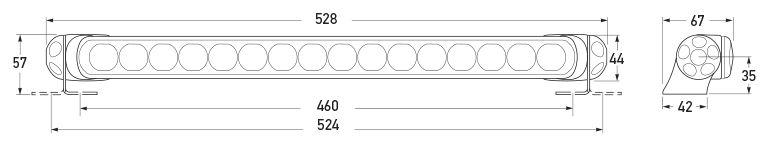

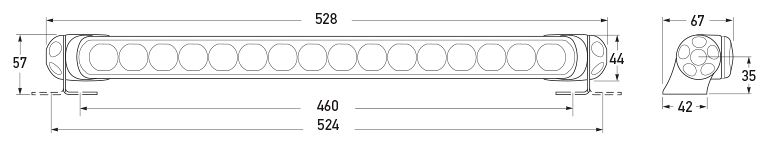

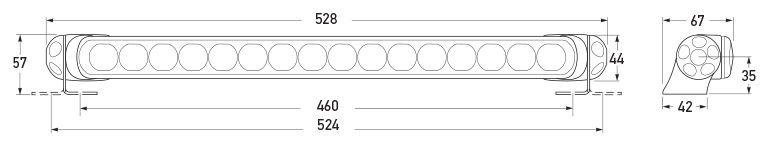

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

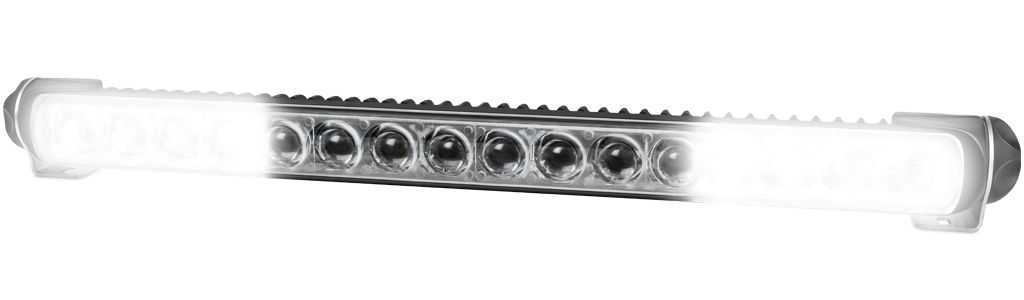

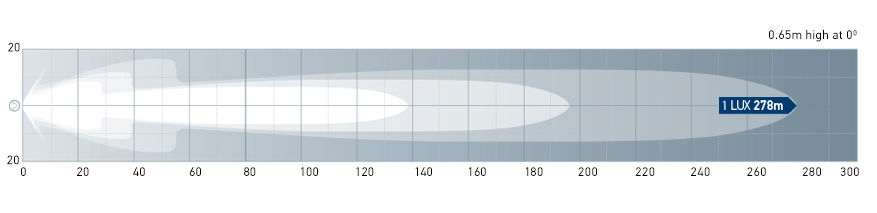

Beam pattern: Close range
Beam pattern: Close range

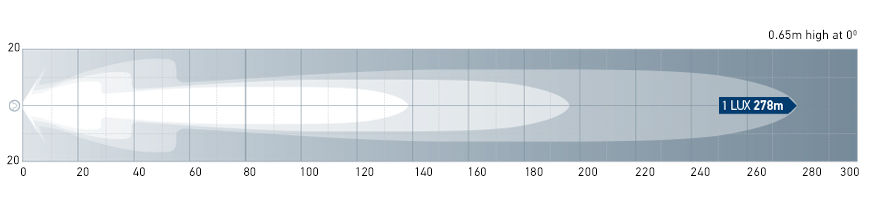

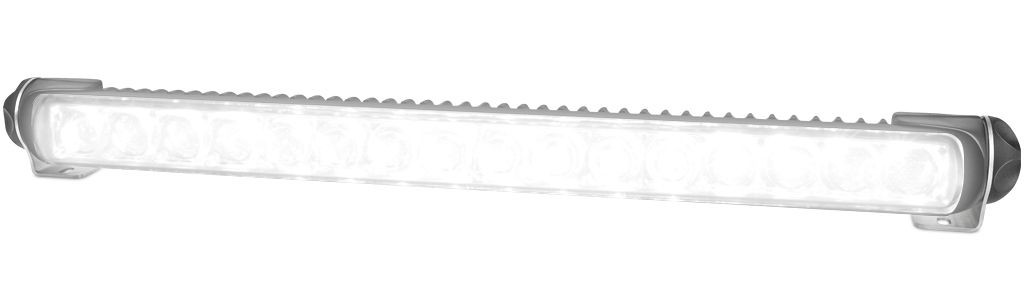

Beam pattern: Combined (Close Range and Long Range)
Beam pattern: Combined (Close Range and Long Range)
