HELLA

Luminator 3.0 LED High Beam Driving Lamp with Edge Position Light

The latest revolutionary Luminator LED driving lamp now features a distinctive position lamp function made possible by HELLA’s innovative Edge Light technology. Utilising the Rallye 4000 metal body, which has proven itself on rally cars and heavy machinery, these lamps are sturdy and reliable. With efficient low power consumption as well as high efficacy from the latest technology allowing up to nearly 600m of light for only 2x15W of power. The LED robustness and durable design allows for a long life and is supported by a HELLA 5 year warranty.

­• Bright white LED light (5900K)
• Two beam patterns, up to 595m

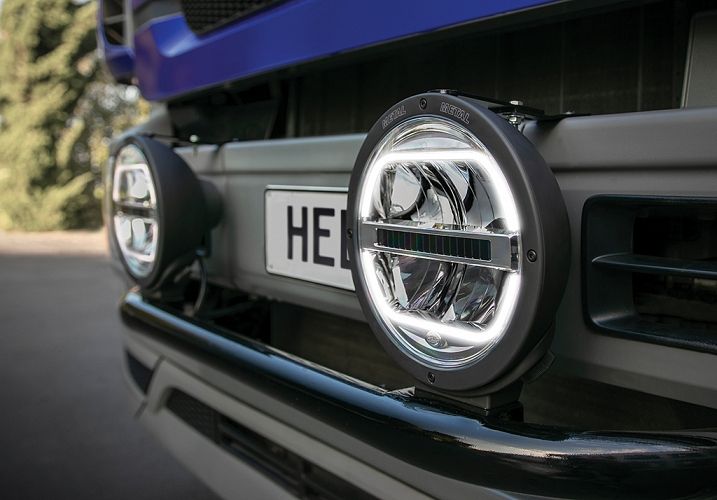

• Integrated LED Front Position Lamp
• Low power consumption (15W)
• Replaceable LED headlamp insert
• Shock resistant PC cover lens
• 5 Year Warranty

To find a HELLA reseller near you, click here.

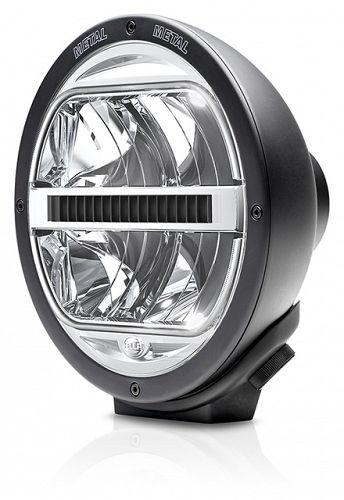

 Luminator 3.0 LED Driving Lamp



Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

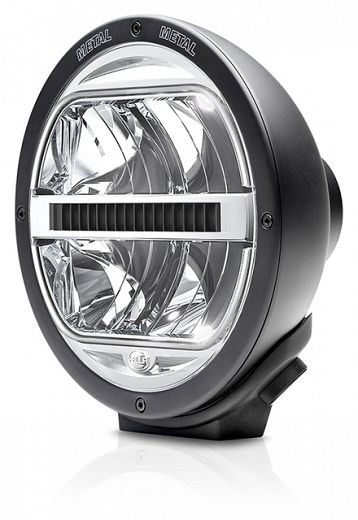

Luminator 3.0 LED Satin Black Spread Beam ECE Ref.25

PART NO: 1F8 016 560-001

Luminator 3.0 LED Satin Black Pencil Beam ECE Ref.50

PART NO: 1F8 016 560-011

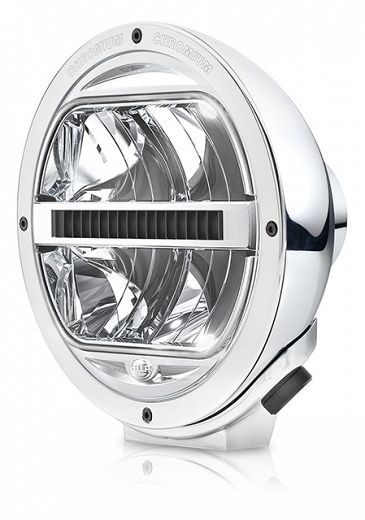

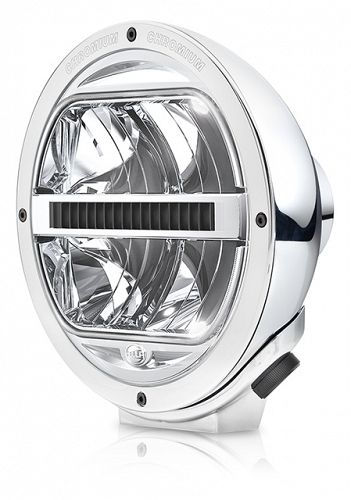

Luminator 3.0 LED Chrome Spread Beam ECE Ref.25

PART NO: 1F8 016 560-021

Luminator 3.0 LED Chrome Pencil Beam ECE Ref.50

PART NO: 1F8 016 560-031

Luminator 3.0 LED Spread Beam Insert - ECE Ref. 25

PART NO: 1F8 241 400-011

Luminator 3.0 LED Pencil Beam Insert - ECE Ref. 50

PART NO: 1F8 241 429-011

Specifications

Mounting

Upright or pendant

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 32 volts

Power Consumption

Driving lamp: 15W
Position lamp: Max 5W

Light Temperature

5900K

Weight

2.7kg

Protection

IP 6K7 Protection against dust and temporary water immersion
IP X9K Protection against high-pressure cleaner, specific for road vehicles
(Not suitable for submersion)

Cable Length

400mm cable supplied

Compliance

ECE R112 high beam ECE R7 position light ECE R10               CE

Spare Part

Luminator 3.0 LED Driving Lamp Insert
Part Number Beam Type ECE Ref.
1F8 241 400-011 Spread Beam ECE Ref. 25
1F8 241 429-011 Pencil Beam ECE Ref. 50

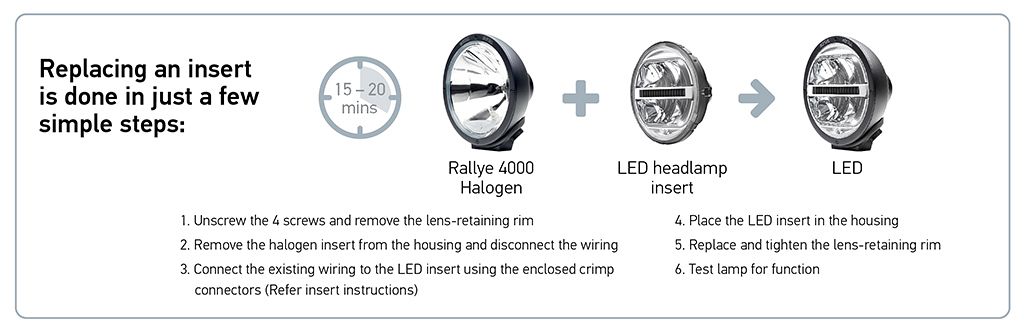

Suitable Halogen part numbers that may be converted:
1365, 1366, 1366CHROME, 1366C-BLUE, 1165 (to convert from fog to driving)

Outline

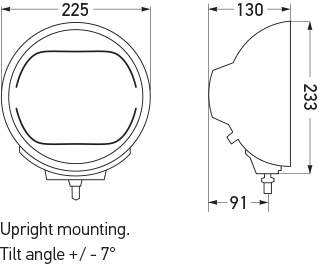

Luminator Driving Lamp Dimensions in mm.
Luminator Driving Lamp Dimensions in mm.
Lamp Insert Dimensions in mm.
Lamp Insert Dimensions in mm.

Light Output

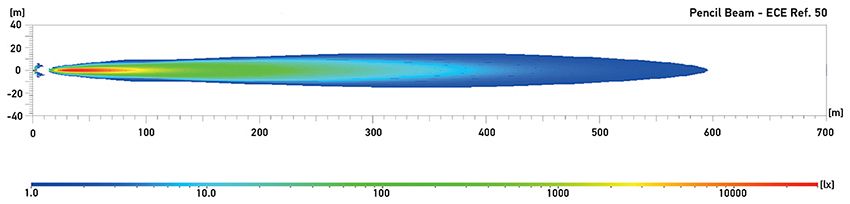

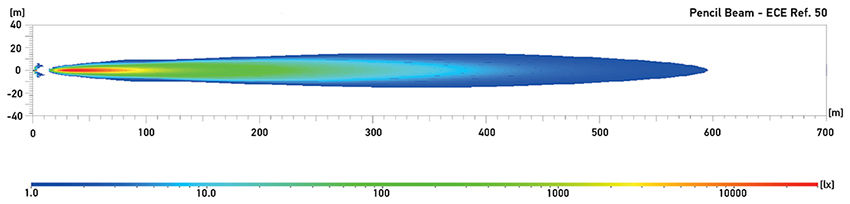

Pencil Beam. Light distribution is recorded with 2 lamps. Distance in metres.
Pencil Beam. Light distribution is recorded with 2 lamps. Distance in metres.

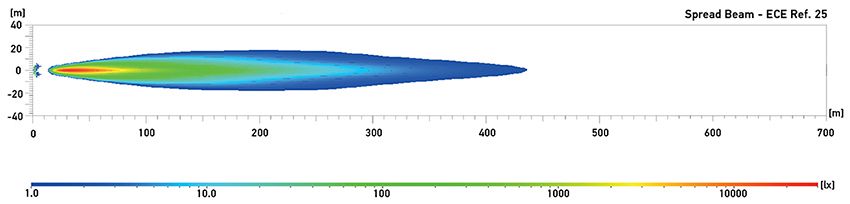

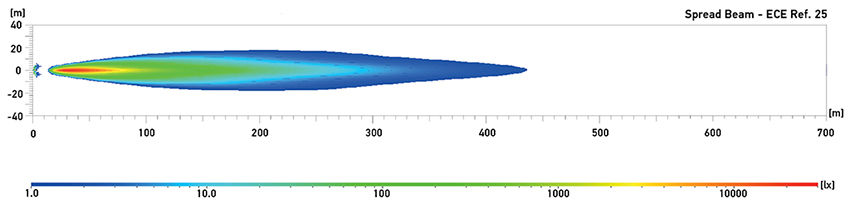

Spread Beam. Light distribution is recorded with 2 lamps. Distance in metres.
Spread Beam. Light distribution is recorded with 2 lamps. Distance in metres.
