HELLA

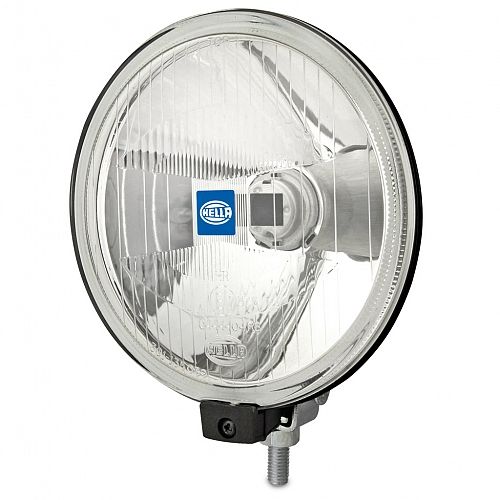

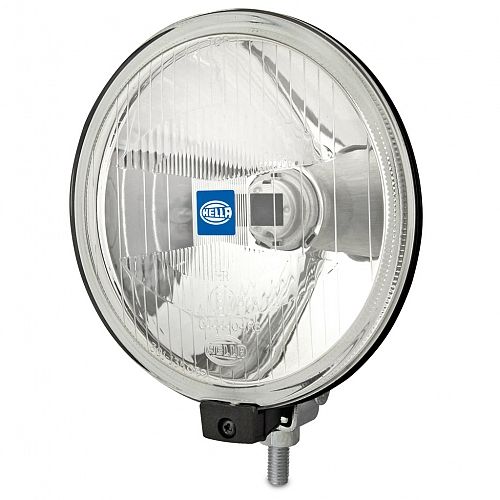

Comet 500 Spread Beam Driving Lamp

Comet 500 spread beam driving lamp with hardened glass lens and tough plastic body. Supplied with Protective Cover P/N 8121

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Comet 500 Spread Beam Driving Lamp

PART NO: 1F4 005 750-102
Legacy PN: 1308

Specifications

Mounting

Upright or pendant.

Power Consumption

55W

Bulbs to Suit

12V YC1255
24V YC2470

Spare Part

9.1308.01 Driving lamp insert
9.1308.08 Mounting Bracket Assembly
8121 Protective cover
8137 Clear protective cover
5224 12V Wiring Kit (includes Relay & Switch)

Compliance

E1 44404

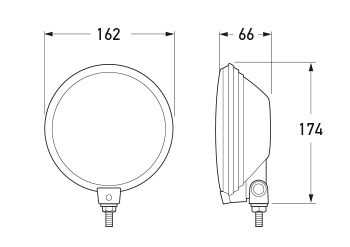

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

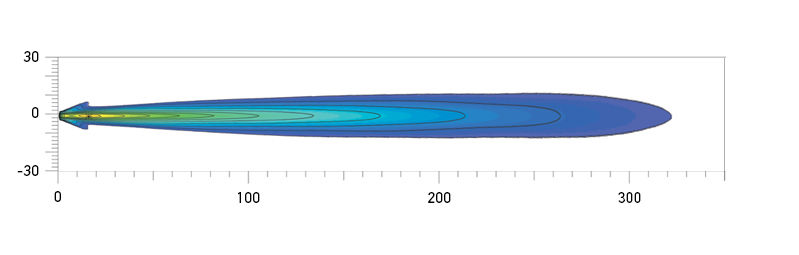

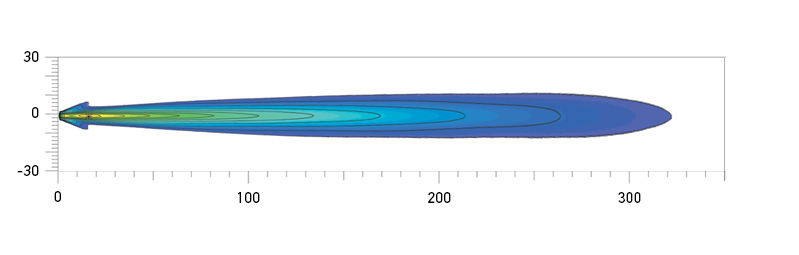

Comet 500 Spotlight distance. Recorded with single lamp. Distance in metres.
Comet 500 Spotlight distance. Recorded with single lamp. Distance in metres.
