HELLA

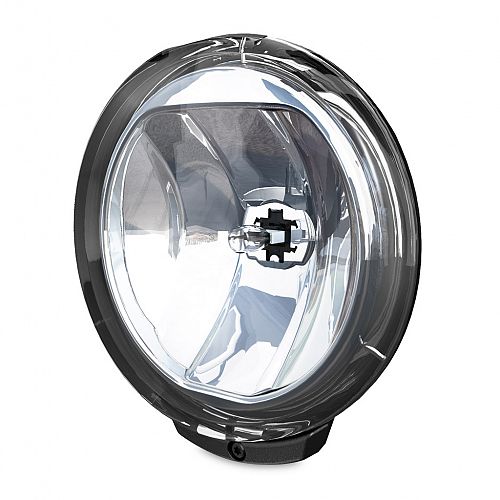

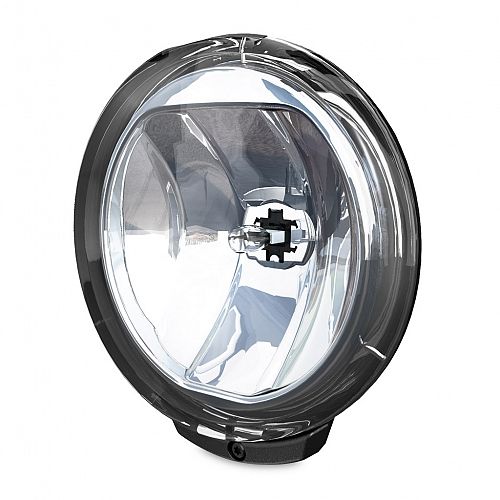

Comet FF 500 Spread Beam Driving Lamp

Comet FF 500 H3 spread beam driving lamp with black plastic housing. Complete with protective cover P/N 8XS 186 531-012.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Comet FF 500 Spread Beam Driving Lamp

Comet FF 500 Spread Beam Driving Lamp

1325

Specifications

Mounting

Upright

Power Consumption

55W

Bulbs to Suit

12V YC1255
24V YC2470

Spare Part

9.1325.01 Driving lamp insert
5224 12V Wiring Kit (includes Relay & Switch)

Compliance

E1 3222

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

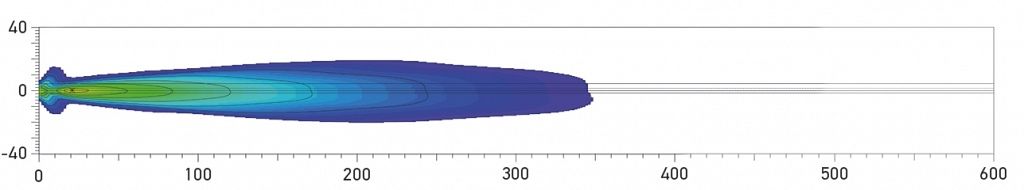

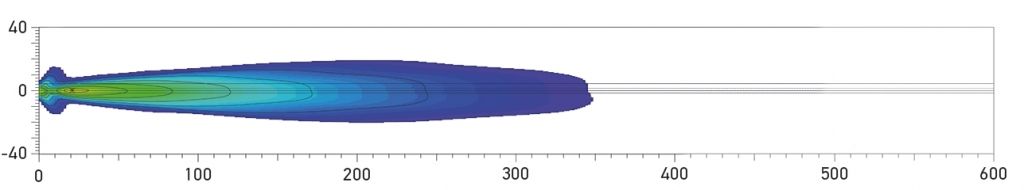

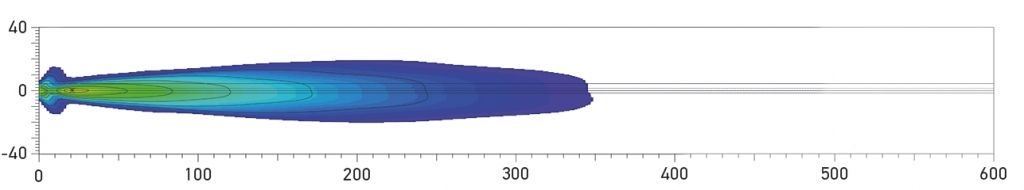

Comet FF 500 Spotlight distance. Recorded with single lamp. Distance in metres.
Comet FF 500 Spotlight distance. Recorded with single lamp. Distance in metres.
