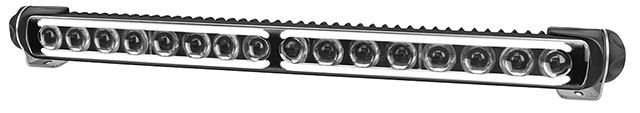

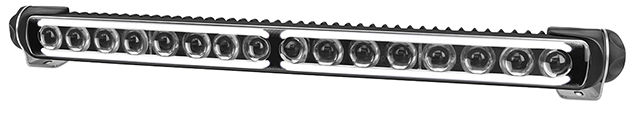

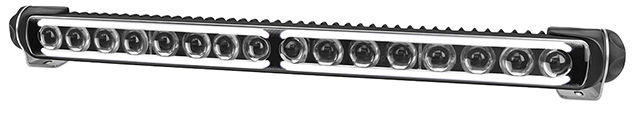

LED Light Bar 470 with front Position Function

Introducing a world-leading innovation from HELLA to enhance the front of your vehicle. For the first time, striking LED light pipe technology has been integrated into a powerful high beam headlamp light bar to provide an innovative position light.

Multivolt™ circuitry means the dual function lamp can be used on 12V or 24V DC, whilst only consuming 36W on high beam. Any input between 9 to 33 volts offers optimum brightness.

The adjustable mounting system ensures for easy installation and flexibility for any orientation. (Must be mounted according to local installation regulations for High beam and Position lamps.) Exceptional HELLA durability and long-term reliability through unmatched corrosion resistance and toughness is provided by a thermally conductive polymer housing.

Designed and manufactured in New Zealand for Fit and Forget peace of mind, the completely sealed HELLA LED Light Bar series is covered by a 5 year warranty.



• High beam with intergrated front position lamp
• Approved for use in New Zealand and Australia
  with ECE compliance (Two Lamps)
• 16 high performance automotive grade LEDs

• Maximum luminous intensity of 113,000 candela
• Highly adaptable mounting system
• Thermally conductive non-metal housing
• 5 year warranty


To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 470 with Front Position Function

PART NO: 1FJ 958 140-001

Specifications

Mounting

Upright or pendant

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts

Power Consumption

Position: 6W
High Beam: 36W

Maximum Luminous Intensity

113,000 candela

Light Output

1700 lumen

Protection

Reverse polarity and transient spike protection
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable

Accessories

8HG 958 139-071 HD single spare end bracket kit
8XS 958 337-021 LED Light Bar 470 - Clear protective cover
8XS 958 337-031 LED Light Bar 470 - Amber protective cover
8XS 958 337-111 LED Light Bar 470 - Protective cover

Compliance

E24 2845  R10/05

CE

E24 5930  R148/00 Front position
E24 5930  R149/00  Ref. 25

Contents

1 x LED Light Bar 470 Front Position 2 x HD mounting brackets 1 x Instruction booklet

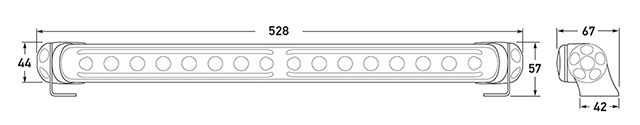

Outline

All dimensions in mm
All dimensions in mm

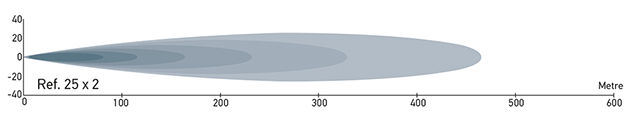

Light Output


Top
