HELLA

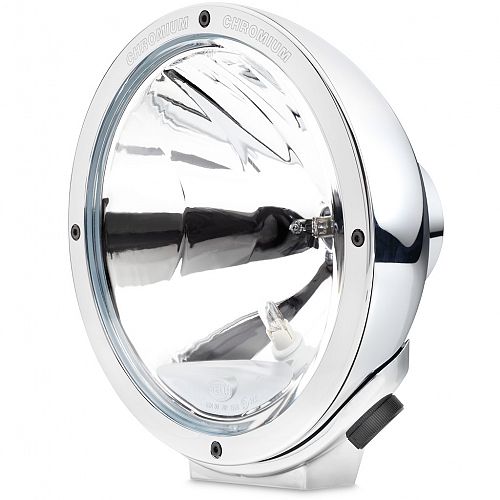

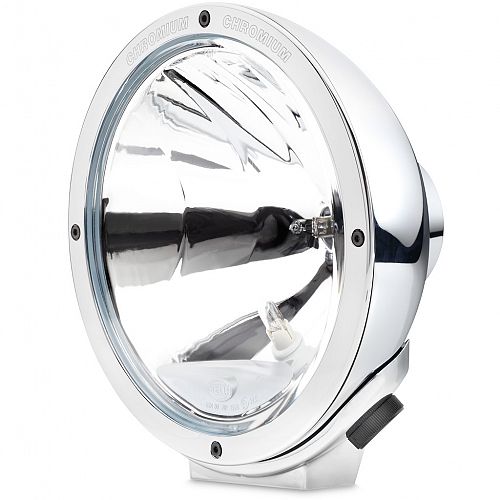

Rallye 4000 Chrome Spread Beam Driving Lamp

The Rallye 4000 spread beam driving lamp features clear glass optics and chrome plated zinc die-cast metal housing. Complete with protective cover P/N 8125 and Allen keys.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Rallye 4000 Chrome Spread Beam Driving Lamp

Rallye 4000 Chrome Spread Beam Driving Lamp

1366CHROME

Specifications

Mounting

Upright

Power Consumption

Driving lamp: 55W
Position lamp: 5W

Bulbs to Suit

  12V 24V
Driving lamp: C1255CB C2470
Position lamp: W125 W245

Spare Part

9.1366.02 Spread beam insert
9.1366C.07 Chrome lens retaining rim
8125 Protective Cover
8141 Clear Protective Cover
8126 Protective Grille
9.1365.06 Knurled Screw Set (2)
5224 12V Wiring Kit (includes Relay & Switch)

Compliance

E1 44484

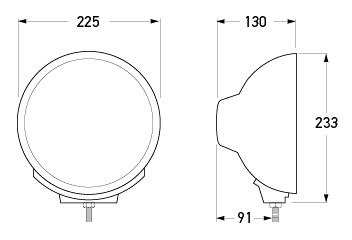

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Rallye 4000 Spread Beam distance. Recorded with single lamp. Distance in metres.
Rallye 4000 Spread Beam distance. Recorded with single lamp. Distance in metres.
