HELLA

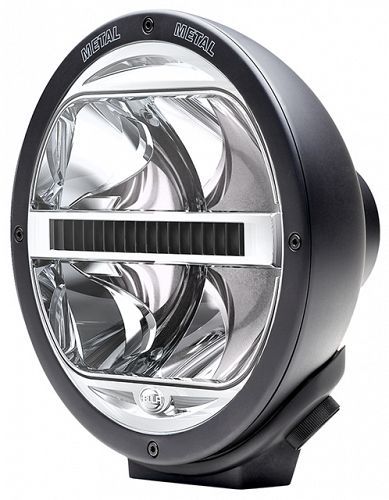

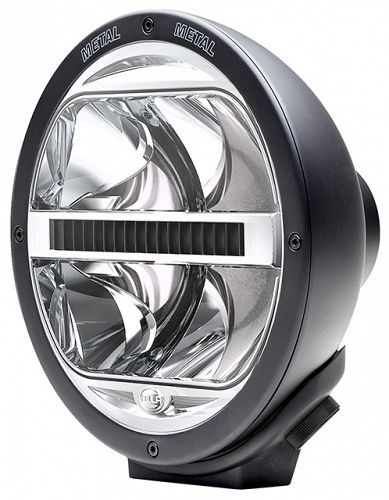

Rallye 4000 LED High Beam Driving Lamp

The new Rallye 4000 LED driving lamp combines performance and durability like never before. These lamps are sturdy and reliable with an efficient low power consumption of 33W. The high efficacy from the latest technology allows up to nearly 1.3km of light. The LED robustness and durable design allows for a long life and is supported by a HELLA 5 year warranty.

Note: Due to the high performance of these LED driving lamps, they exceed the allowed maximum light intensity to be ECE compliant, and therefore are recommended for Motorsport or off-road use only.

­• Bright white LED light (5900K)
• Two beam patterns, up to 1.3km visibility
• Longer reaching beam than HID Predators

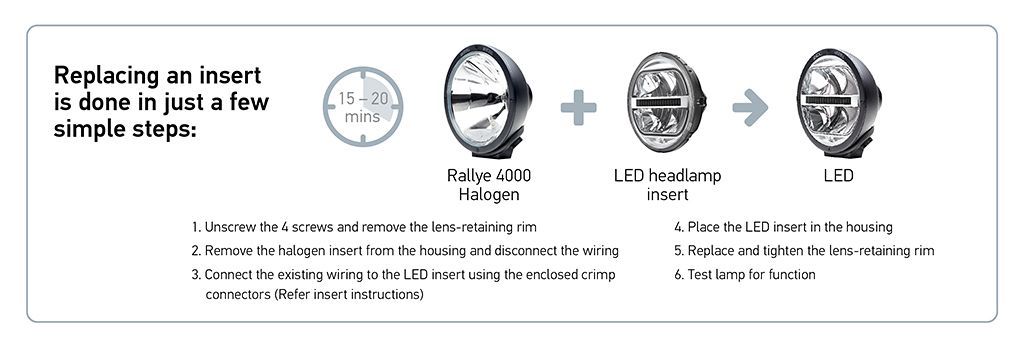

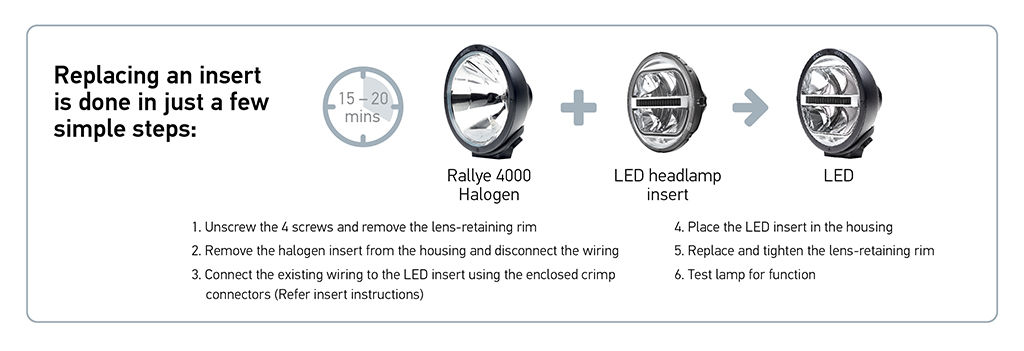

• Lamp inserts can be retrofitted into Rallye 4000 housings
• Shock resistant PC cover lens
• 5 Year Warranty



To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Rallye 4000 LED Satin Black Wide Beam Driving Lamp

PART NO: 1F8 016 560-101
Legacy PN: 1366LED

Rallye 4000 LED Satin Black Narrow Beam Driving Lamp

PART NO: 1F8 016 560-111
Legacy PN: 1365LED

Rallye 4000 LED Insert Wide Beam

PART NO: 1F8 241 430-011

Rallye 4000 LED Insert Narrow Beam

PART NO: 1F8 241 449-011

Specifications

Mounting

Upright or pendant

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 32 volts

Power Consumption

33W

Light Temperature

5900K

Weight

2.7kg

Protection

IP 6K7 Protection against dust and temporary water immersion
IP X9K Protection against high-pressure cleaner, specific for road vehicles
(Not suitable for submersion)

Cable Length

400mm multi-core cable and plug

Compliance

ECE R10 CE

Spare Part

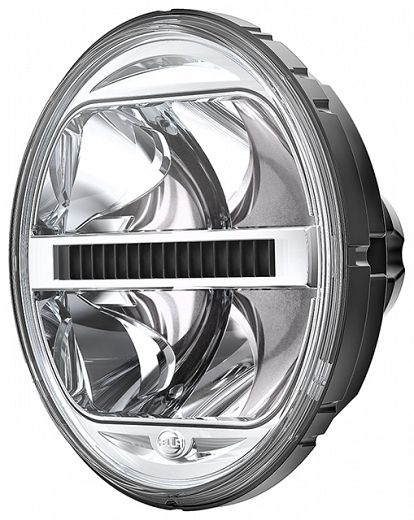

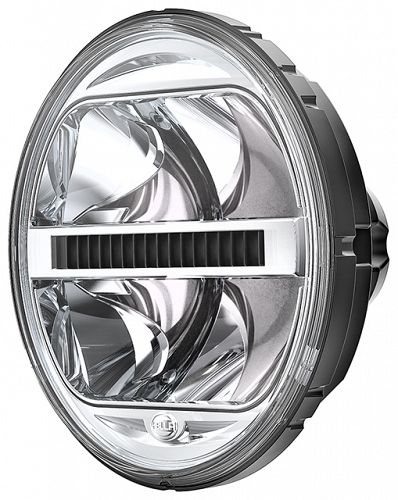

Rallye 4000 LED Driving Lamp Insert
Part Number Beam Type
1F8 241 430-011 Wide Beam
1F8 241 449-011 Narrow Beam

Suitable Halogen part numbers that may be converted:
1365, 1366, 1366CHROME, 1366C-BLUE, 1165 (to convert from fog to driving)

Outline

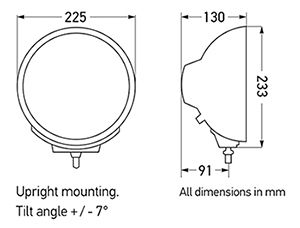

Rallye 4000 LED Driving Lamp Dimensions in mm.
Rallye 4000 LED Driving Lamp Dimensions in mm.
Lamp Insert Dimensions in mm.
Lamp Insert Dimensions in mm.

Light Output

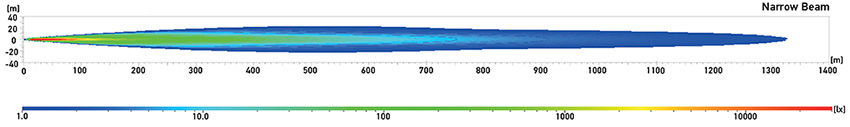

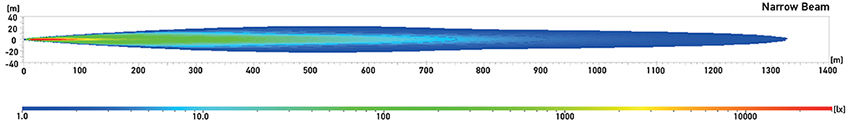

Narrow Beam. Light distribution is recorded with 2 lamps. Distance in metres.
Narrow Beam. Light distribution is recorded with 2 lamps. Distance in metres.

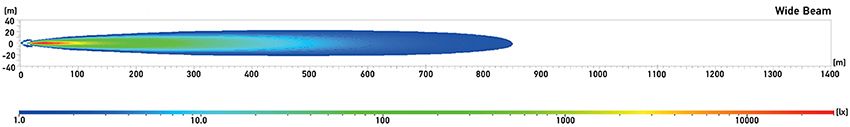

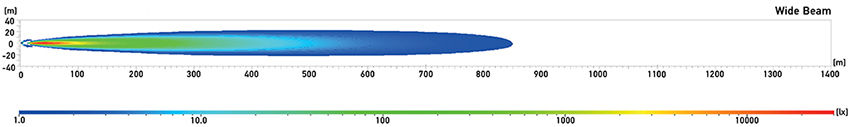

Wide Beam. Light distribution is recorded with 2 lamps. Distance in metres.
Wide Beam. Light distribution is recorded with 2 lamps. Distance in metres.
