HELLA

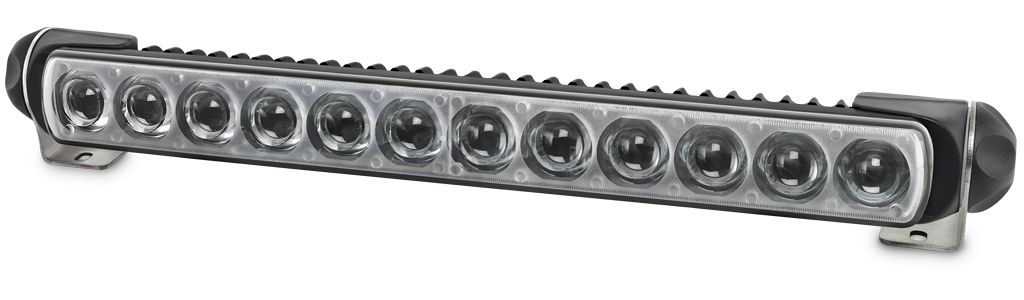

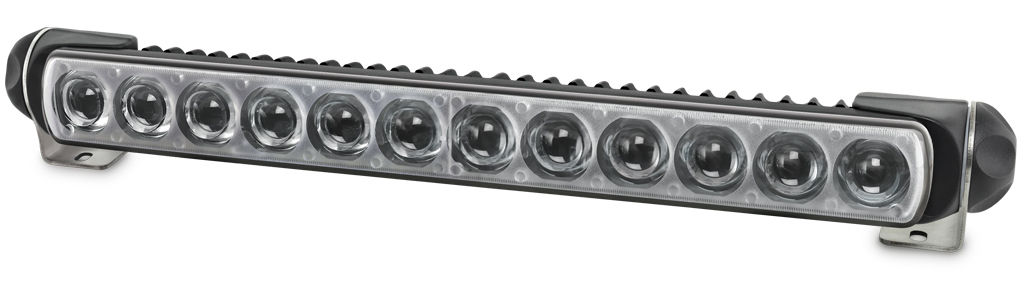

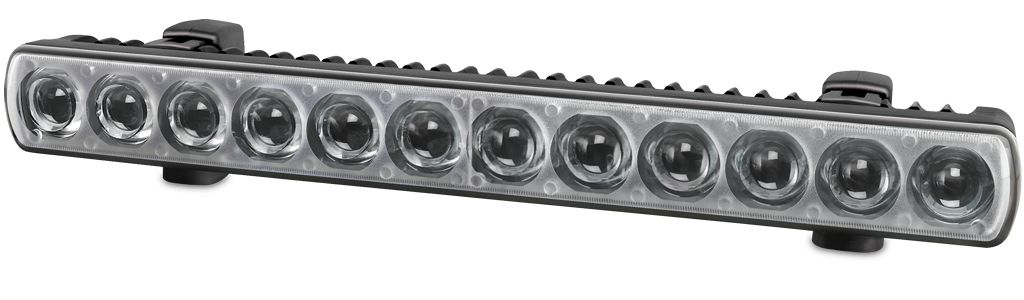

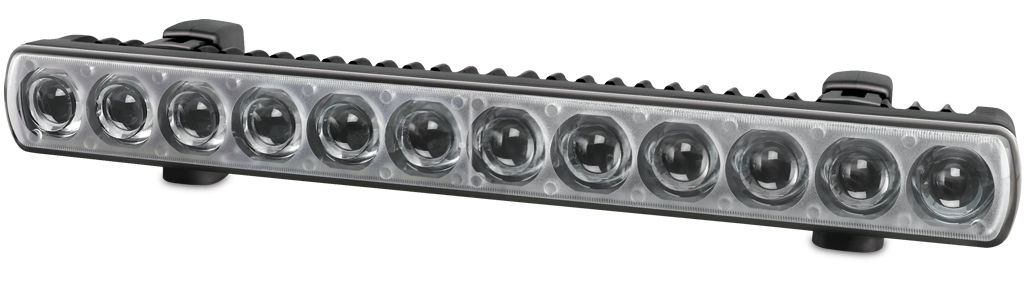

LED Light Bar 350 - Plastic Bracket

This innovative, light weight HELLA LED Light Bar is the first such lamp with a body manufactured entirely from non corrosive, thermally conductive high performance plastics. This aerodynamic powerhouse features 12 durable high performance automotive grade LED’s and a maximum luminous intensity of 145,000 candela with a mere power consumption of only 25 watts.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (P/N 1395 - Ref 20 with 1 lux at approx. 320 metres) and Pencil Beam (P/N 1396 - Ref 30 with 1 lux at approx. 380 metres).

The hermetically sealed and submersible Light Bar features a Multivolt circuit for optimum brightness at input voltages from 9 to 33 volts, is fully road legal with ECE approval and comes with a comprehensive 5 year warranty.

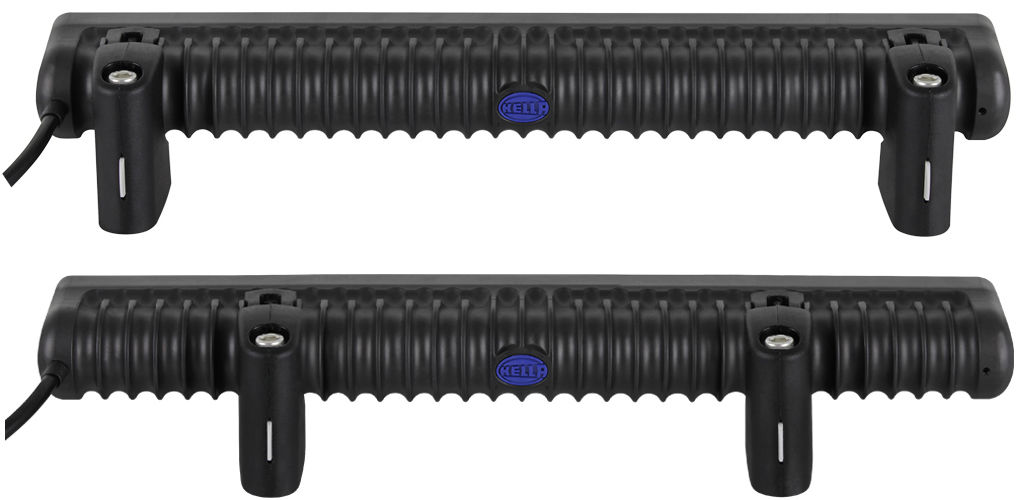

Available separately with single or double stainless steel mounting bracket kits:
P/N 8HG 958 139-841 (Single bracket kit for one lamp)
P/N 8HG 958 139-851 (Double bracket kit for two lamps)

SEMA Global Media Awards - Winner   • 12 high performance automotive grade LEDs
• Approved for use on public roads
• Maximum luminous intensity of 145,000 candela
• Low power consumption
• Highly adaptable mounting system
• Available with stainless steel mounting brackets
Thermally conductive non-metal housing
• Light weight of only 700g


To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

12 LED

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 350 - Plastic Bracket - High Beam

LED Light Bar 350 - Plastic Bracket - High Beam

1395
LED Light Bar 350 - Plastic Bracket - Pencil Beam

LED Light Bar 350 - Plastic Bracket - Pencil Beam

1396

Specifications

Mounting

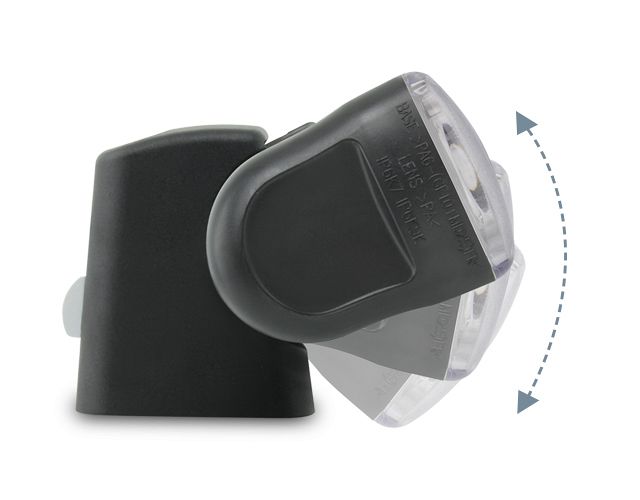

Horizontal mounting. Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

25W

Maximum Luminous Intensity

1395:    96,000 candela
1396:  145,000 candela

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Compliance

  E4 2909  R10/04

CE

1395: E24 0008  R112/01  Ref. 20
1396: E24 0009  R112/01  Ref. 30

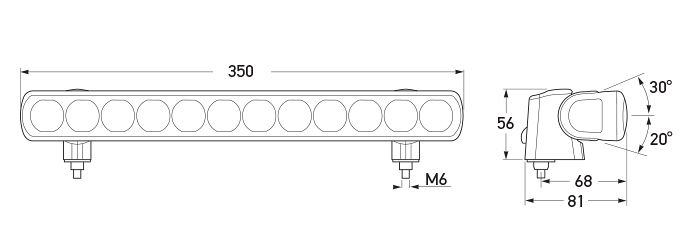

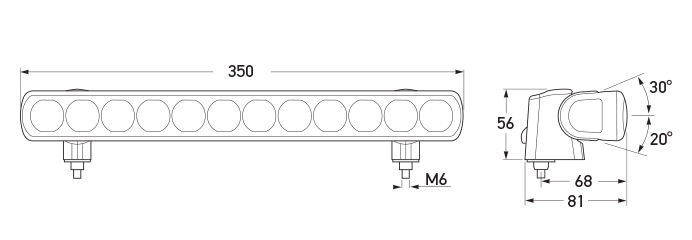

Outline

All dimensions in mm.
All dimensions in mm.

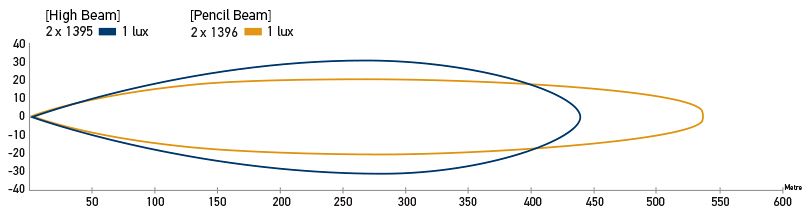

Light Output

LED Light Bar 350. Recorded with two lamps. Distance in metres.
LED Light Bar 350. Recorded with two lamps. Distance in metres.

Documents

Document File Name File Size
  LED Light Bar 350 - 139X - Instruction Sheet.pdf 4.26 MB
