HELLA

HD Double Bracket Kit - suit LED Light Bar

HELLA’s easy to install bracket assembly for the popular LED Light Bar 350 is also available for double mounting applications.

Two light bars can be stacked together while allowing each light bar to be individually adjusted thereby giving you the option to mix and match the driving and work light patterns according your individual needs.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

HD Double Bracket Kit suit LED Light Bar

HD Double Bracket Kit suit LED Light Bar

8HG 958 139-851

Specifications

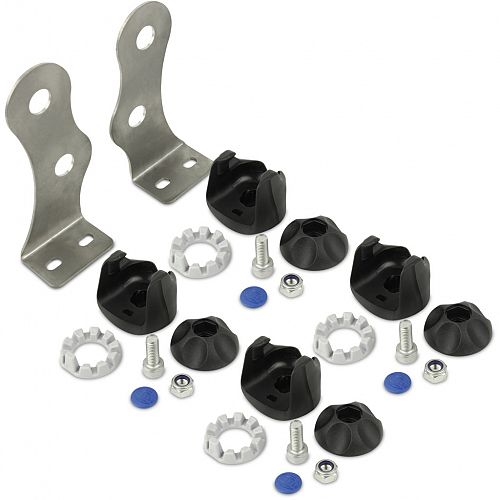

Kit Contents

2 x Stainless Steel Double Mounting Feet
4 x Stainless Steel M8 x 20mm Cap Screws
4 x Stainless Steel M8 Nylon Lock Nuts
4 x End Adaptors
4 x Friction Washers
4 x End Clamps
4 x Screw Caps

Outline

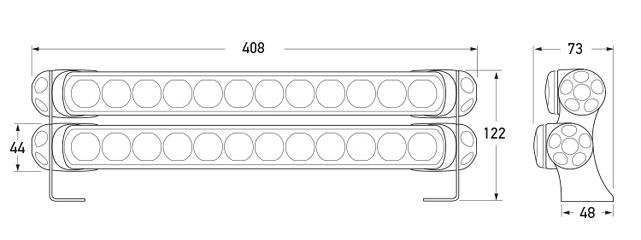

LED Light Bar 350 Dual Mount. All dimenions in mm.
LED Light Bar 350 Dual Mount. All dimenions in mm.

Light Output

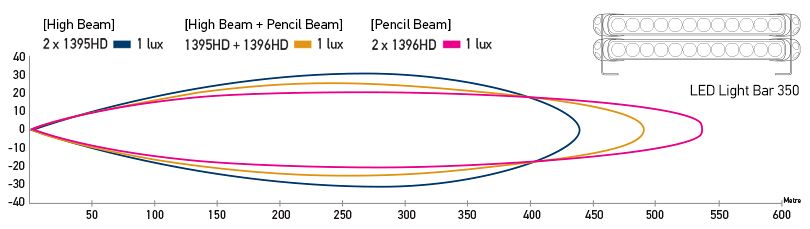

Beam patterns. Recorded with two lamps. Distance in metres.
Beam patterns. Recorded with two lamps. Distance in metres.

Documents

Document File Name File Size
  8HG 958 139-8xx - Instruction Sheet.pdf 1.28 MB
