HELLA

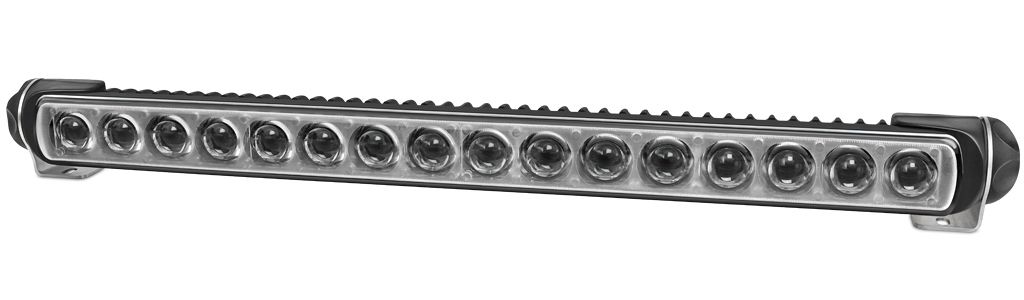

LED Light Bar 470 with HD Bracket - ECE

The longer and brighter LED Light Bar 470 features all the outstanding properties of the LED Light Bar 350 but with an additional four high performance automotive LED’s and a maximum luminous intensity of 166,000 candela at a power consumption of only 35 watts.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref 25 with 1 lux at approx. 330 metres) and Pencil Beam (Ref 37.5 with 1 lux at approx. 410 metres). With only 950g weight the Light Bar is particularly popular for roof mount applications on ATV’s and Off-road vehicles. The non corrosive, thermally conductive housing is highly resistant to degradation and due to its slim profile, this streamline Light Bar is ideal for applications where aerodynamic styling are a valued attribute. The flexible, adjustable mounting system ensures easy installation.

The Light Bar 470 features a Multivolt circuit for optimum brightness at a wide range of input voltages from 9 to 33 volts and is fully road legal with ECE approval.

• 16 high performance automotive grade LEDs
• Maximum luminous intensity of 166,000 candela
• Highly adaptable mounting system
• Thermally conductive non-metal housing
• Low power consumption

• Light weight of only 950g

To view product designed for the New Zealand market, please click here



View below the Number Plate Brackets which suit the LED Light Bar Range:

 Number Plate Bracket for Light Bars



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 LED

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 470 with HD Bracket - ECE - High Beam

PART NO: 1FJ 958 130-111

LED Light Bar 470 with HD Bracket - ECE - Pencil Beam

PART NO: 1FJ 958 130-011

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

35W

Maximum Luminous Intensity

 1FJ 958 130-111:  113,000 candela
 1FJ 958 130-011:  166,000 candela

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Approval Markings

 E24 10R 05-1947  1FJ 958 130-111: E24 0012  1FJ 958 130-011: E24 0013

Contents

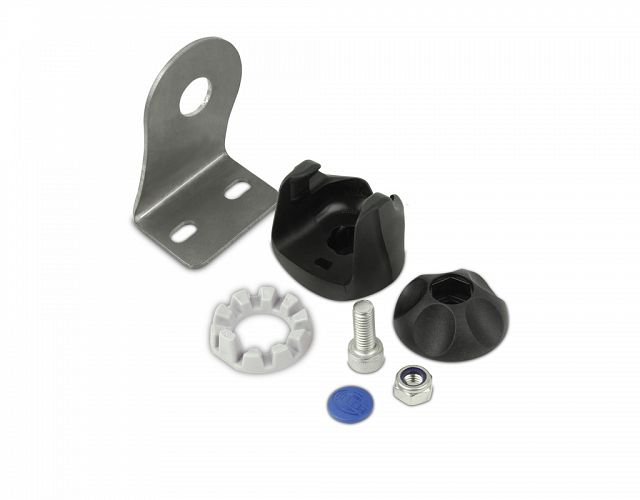

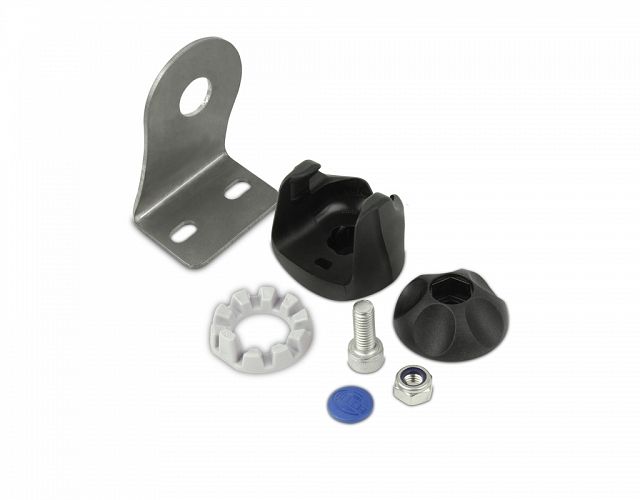

1 x LED Light Bar 470  2 x HD mounting brackets  1 x Instruction booklet

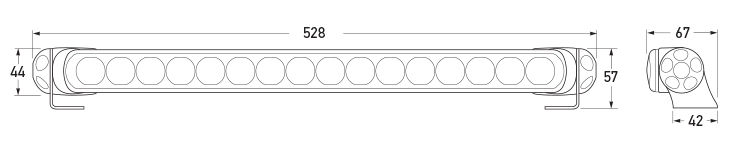

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

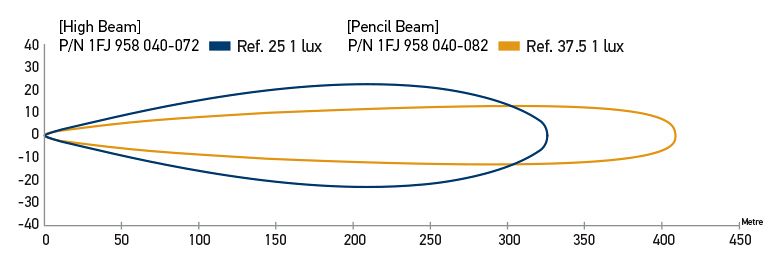

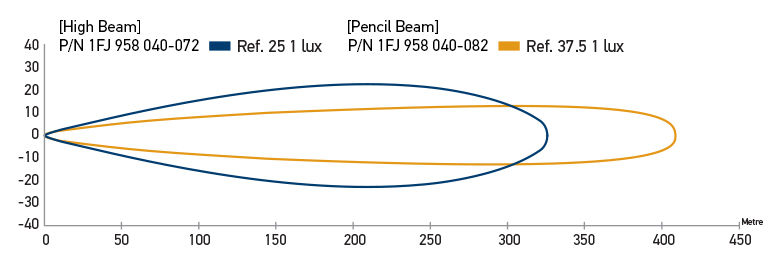

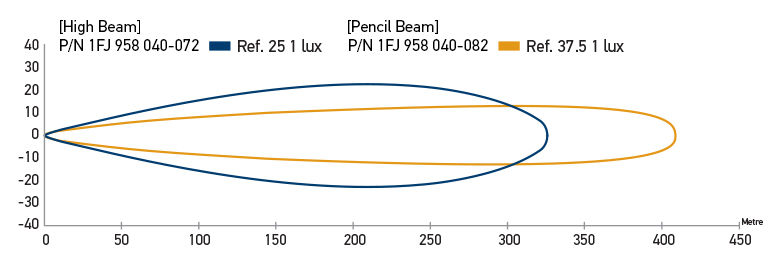

Beam Pattern - Recorded with one lamp. Distance in metres.
Beam Pattern - Recorded with one lamp. Distance in metres.
