LED Light Bar 350 - HD Bracket - ECE

This innovative, light weight HELLA LED Light Bar is the first such lamp with a body manufactured entirely from non corrosive, thermally conductive high performance plastics. This aerodynamic powerhouse features 12 durable high performance automotive grade LED’s and a maximum luminous intensity of 145,000 candela with a mere power consumption of only 25 watts.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref 20 with 1 lux at approx. 320 metres) and Pencil Beam (Ref 30 with 1 lux at approx. 380 metres).

The hermetically sealed and submersible Light Bar features a Multivolt circuit for optimum brightness at input voltages from 9 to 33 volts, is fully road legal with ECE approval and comes with a comprehensive 5 year warranty.

SEMA Global Media Awards - Winner   • 12 high performance automotive grade LEDs
• Approved for use on public roads
• Maximum luminous intensity of 145,000 candela
• Low power consumption

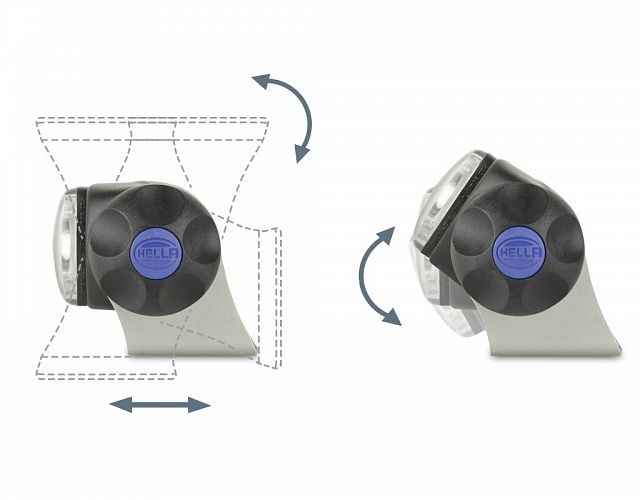

• Highly adaptable mounting system
• Available with stainless steel mounting brackets
Thermally conductive non-metal housing
• Light weight of only 700g


To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

12 LED

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

Corrosion Proof

Benefits include strength and corrosion resistance.

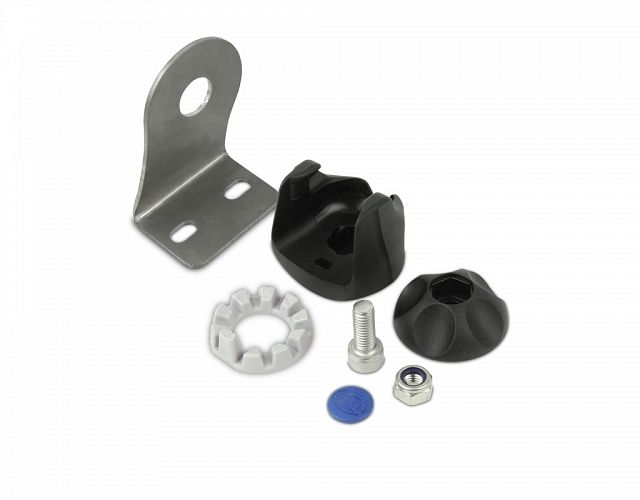

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Light Bar 350 - HD Bracket - ECE - High Beam

LED Light Bar 350 - HD Bracket - ECE - High Beam

1FJ 958 040-072
LED Light Bar 350 - HD Bracket - ECE - Pencil Beam

LED Light Bar 350 - HD Bracket - ECE - Pencil Beam

1FJ 958 040-082

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

25W

Maximum Luminous Intensity

 1FJ 958 040-001  96,000 candela
 1FJ 958 040-051  145,000 candela

Protection

Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Approval Markings

 E4 10R 04-2909  1FJ 958 040-001 E24 0008  1FJ 958 040-051 E24 0009

Contents

1 x LED Light Bar 350  2 x HD mounting brackets  1 x Instruction booklet

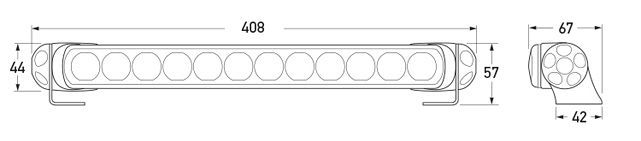

Outline

All dimensions in mm.
All dimensions in mm.

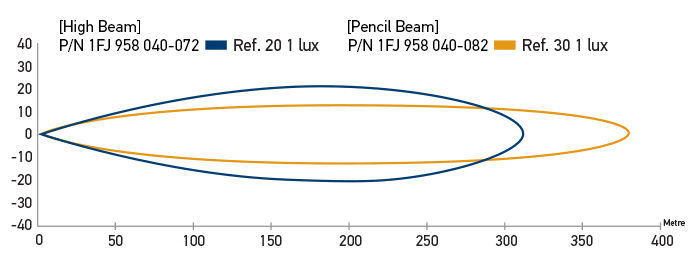

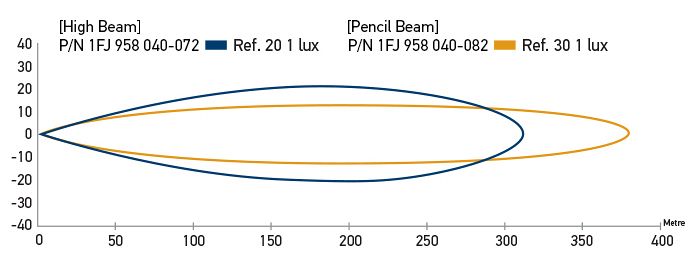

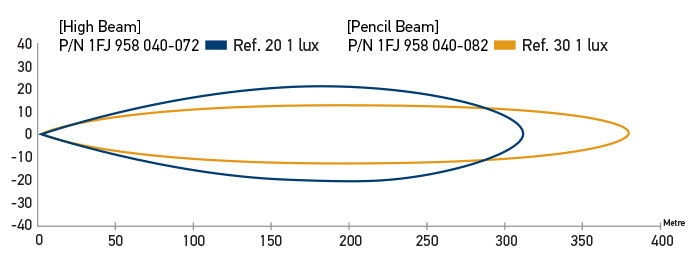

Light Output

Beam Pattern - Recorded with one lamp. Distance in metres.
Beam Pattern - Recorded with one lamp. Distance in metres.
