HELLA

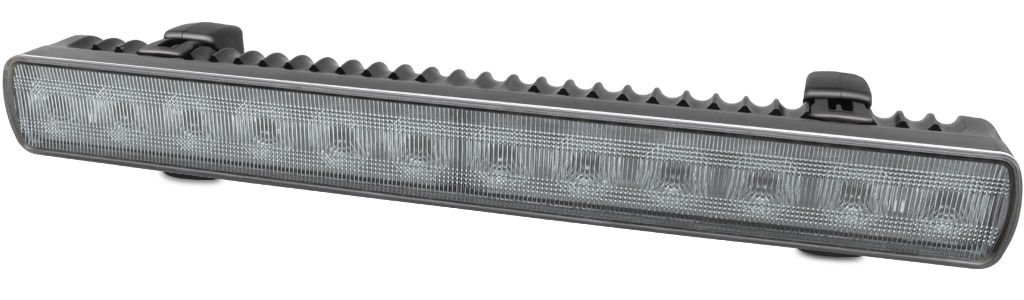

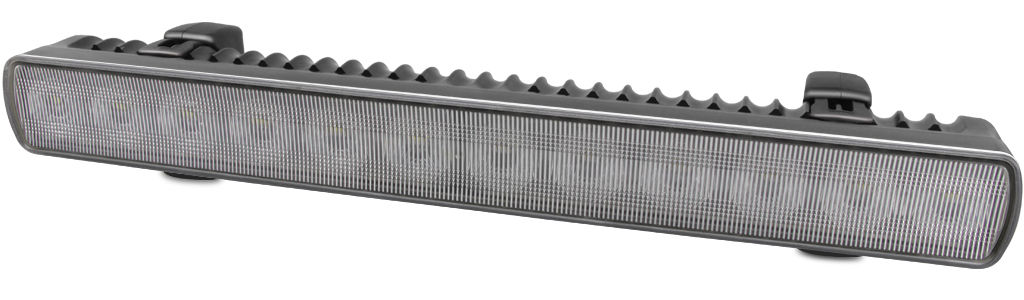

BL350 LED Work Lamp

BL350 LED work lamp incorporates the latest technology to offer a powerful, durable lighting solution for a multitude of applications. Featuring energy efficient Multivolt™ technology, this work lamp will appeal to applications where energy efficiency and reliability are a must. These lamps offer a formidable net light output of 2200 lumen

• 12 high performance LEDs.
• Luminaire Performance* 2200 lumen.
• Low power consumption of 25W.

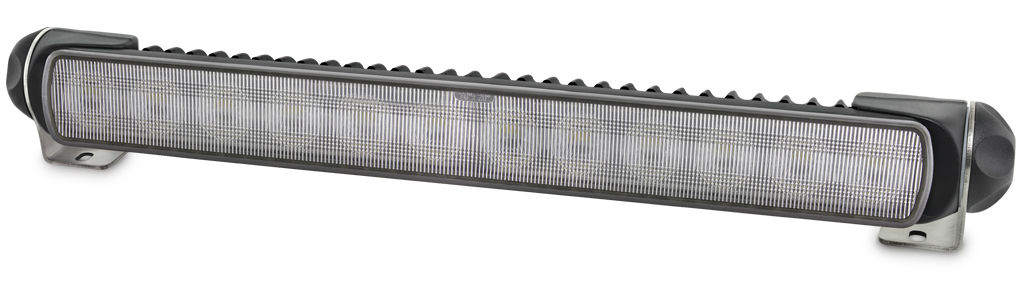

• Available with stainless steel mounting brackets
• Thermally conductive non-metal housing.
• Dust and waterproof.

Designed with Fit and Forget durability in mind, the BL350 LED work lamp features a highly impact resistant lens made of Grilamid®, a crystal clear polyamide with superior tolerance to chemical and long term harsh UV exposure, as well as a technologically advanced thermally conductive non-metal housing.

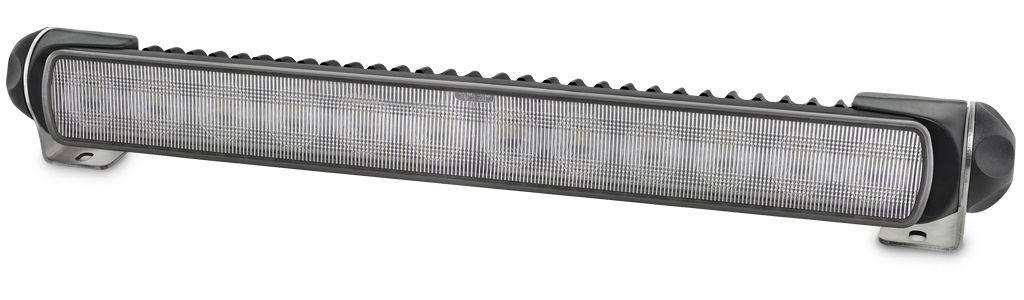

Available separately with single or double stainless steel mounting bracket kits:
P/N 8HG 958 139-841 (Single bracket kit for one lamp)
P/N 8HG 958 139-851 (Double bracket kit for two lamps)

*Luminaire Performance refers to the real performance of the lamp, not the much higher theoretical performance of the LEDs, as is often used.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

12 LED

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

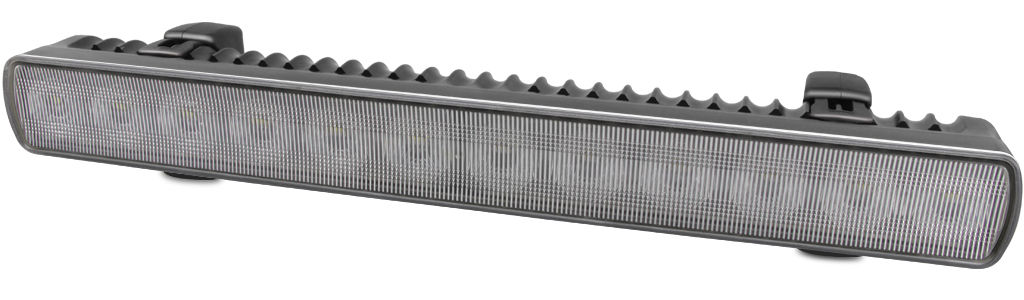

BL350 LED Work Lamp - Extra Wide

BL350 LED Work Lamp - Extra Wide

1GJ 958 040-501

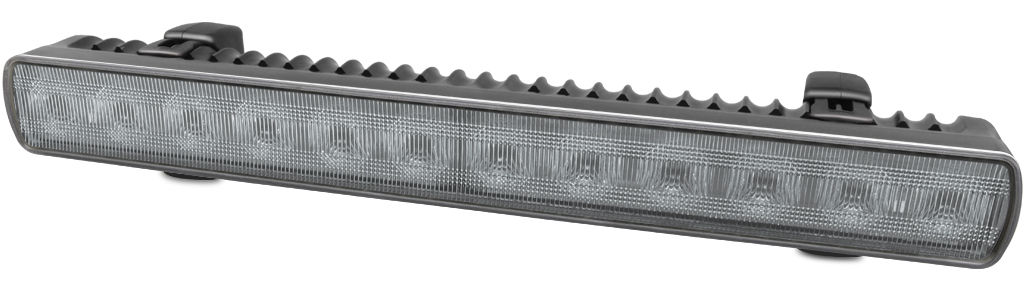

BL350 LED Work Lamp - Close Range

BL350 LED Work Lamp - Close Range

1GJ 958 040-551
BL350 LED Work Lamp - Long Range

BL350 LED Work Lamp - Long Range

1GJ 958 040-601

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

25W

Max. Light Output

2200 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi core cable.

Lens Material

Grilamid®

Compliance

CE

CE

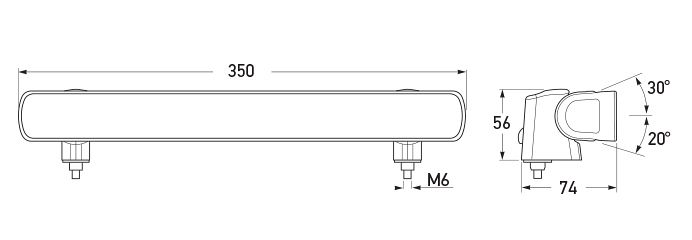

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Beam Pattern: BL350 Work Lamp - Extra Wide.
Beam Pattern: BL350 Work Lamp - Extra Wide.

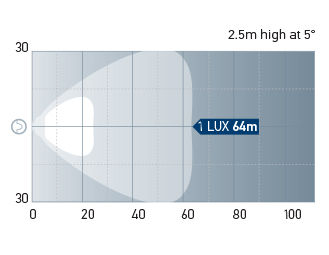

Beam Pattern: BL350 Work Lamp - Close Range.
Beam Pattern: BL350 Work Lamp - Close Range.

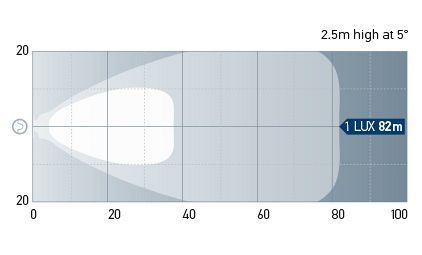

Beam Pattern: BL350 Work Lamp - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam Pattern: BL350 Work Lamp - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.

Documents

Document File Name File Size
  1GJ 958 040-xxx Instruction Sheet.pdf 3.77 MB
