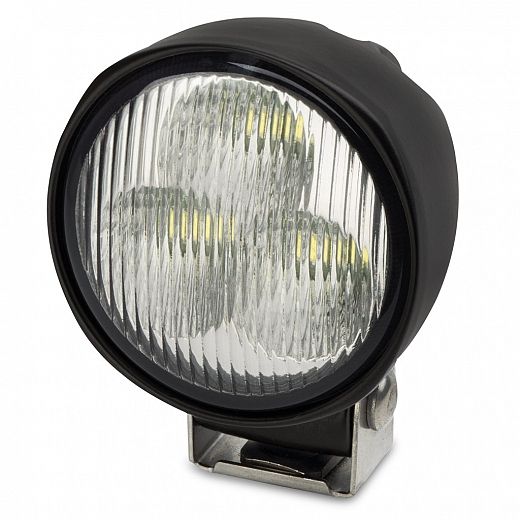

Module 70 LED Generation IV Work Lamp

The Generation IV M70 lamp is now exceptionally bright with a powerful light output of 2500 lumens.

Equipped with 3 high-performance multichip LEDs the new M70 LED work lamp produces 2500 lumens of crisp white light while consuming just 30W of power. (2.5A @ 12V DC). Completely sealed (IP 6K9K) this lamp is particularly suitable for tough conditions and work areas.

Advanced Multivolt 9-33V electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltage. Pre-wired with 2.0m cable and a 316 stainless steel bracket, this work lamp can be easily installed.

• Powerful LED work lamp (2500lm).
• Innovative light performance in a compact design.
• Low power consumption.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

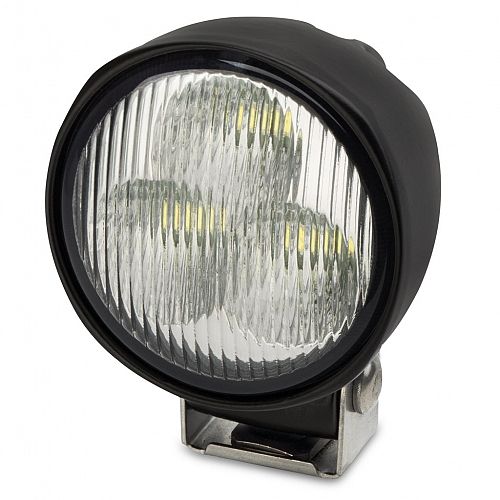

Module 70 LED Generation IV Work Lamp - Close Range

Module 70 LED Generation IV Work Lamp - Close Range

1567

Specifications

Mounting

Upright or pendant.
37mm mounting lug with rubber bushing.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

30W

Max. Light Output

2500 lumen

Protection

Reverse polarity protection.
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2.0m of sheathed twin core cable.

Compliance

 CE E1 ECE-R10

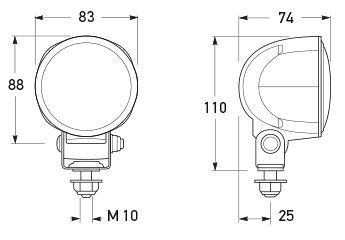

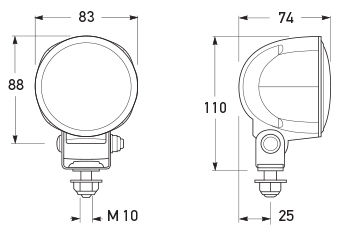

Outline

All dimensions in mm.
All dimensions in mm.

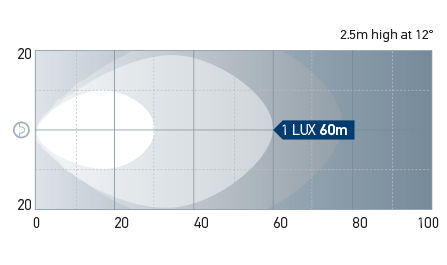

Light Output

Beam pattern: 1567 - Close Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: 1567 - Close Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
