HELLA

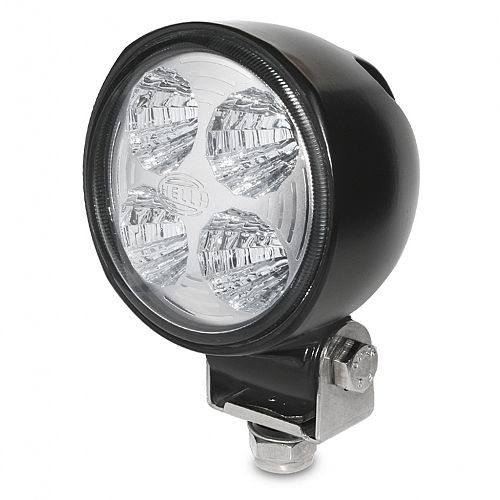

M70 LED Work Lamp - Close Range

M70 LED Multivolt™ work lamp features 4 high performance white LEDs providing consistent close range illumination and lamp protection with 12 or 24V systems. High-sheen metallised Free-Form (FF) reflector and clear glass lens. Housed in an impact resistant aluminium die-cast housing, fully sealed for an ultra long service life in demanding high vibration environments.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

M70 LED Work Lamp - Close Range - 9-33 Volts

M70 LED Work Lamp - Close Range - 9-33 Volts

1547-LED
M70 LED Work Lamp - Close Range - 10-100 Volts

M70 LED Work Lamp - Close Range - 10-100 Volts

1547-LEDEV

Specifications

Mounting

Upright or pendant.

Voltage

1547-LED Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.
1547-LEDEV Multivolt™ for optimum brightness at input voltages from 10 to 100 volts.

Power Consumption

13W

Max. Light Output

1547-LED 800 lumen
1547-LEDEV 600 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed cable.

Compliance

E1 CE

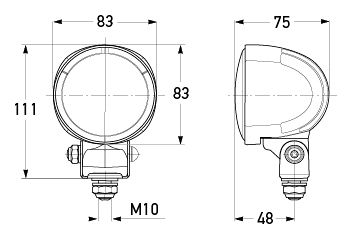

Outline

All dimensions in mm.
All dimensions in mm.

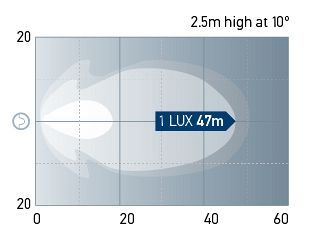

Light Output

Beam pattern - Close range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern - Close range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
