HELLA

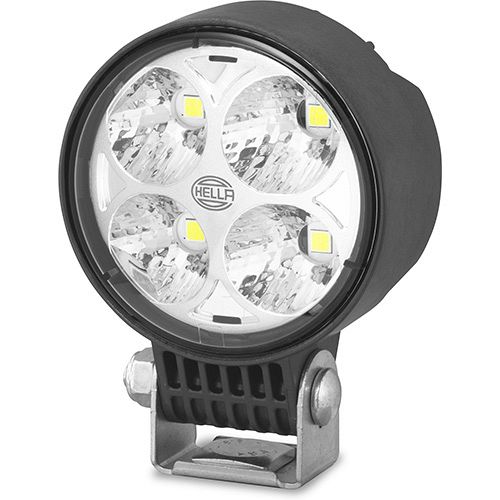

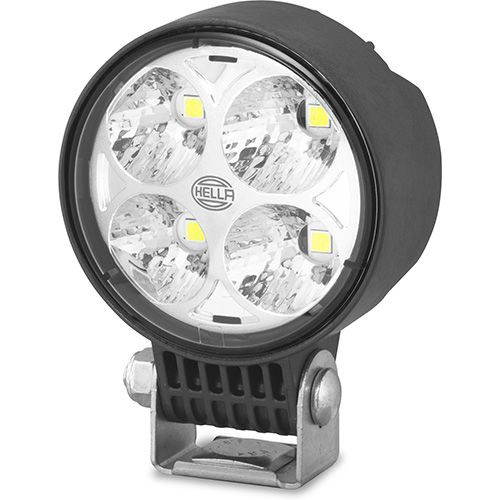

M70-S II 1850 lumen LED Work Lamp - Long Range

The Module 70 range is one of New Zealand's most trusted small work lamps. The upgraded M70-S II Long Range delivers an impressive 1850 lumens of consistent illumination, making it the ultimate solution for long-range lighting. Designed to work seamlessly with 12V or 24V systems, this lamp is perfect for a wide range of applications.

Its innovative, lightweight housing is crafted from a corrosion-resistant, thermally conductive synthetic material, featuring cooling fins to ensure efficient heat dissipation.The M70-S II offers unmatched durability and performance even in the toughest, high-vibration environments.

Experience brighter, more reliable lighting with reduced power consumption and a body built to withstand the elements. The M70-S II is your go-to for efficient and dependable illumination, whether you’re tackling demanding work sites or everyday tasks.

  • Increased Brightness
  • Corrosion resistant body
  • Low power consumption
  • Light weight

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Module 70-S II Long Range Work lamp

PART NO: 1G0 996 776-211

Specifications

Mounting

Upright or pendant.

Lens

Polycarbonate

Voltage

Multivolt™ for optimum brightness at input voltages from 9-32V DC

Power Consumption

19W (1.6 A @ 12 V, 0.8 A @ 24 V)

Max. Light Output

1850 lumen

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Connection

DEUTSCH DT connector

Compliance

E12    ECE R10, ADR/GGVSEB  CISPR 25 Class 5 (12V) and Class 4 (24V)  CE

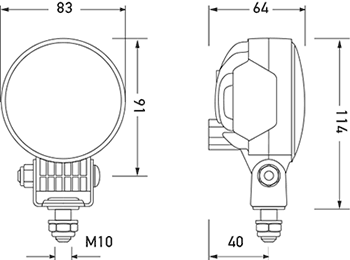

Outline

All dimensions in mm
All dimensions in mm

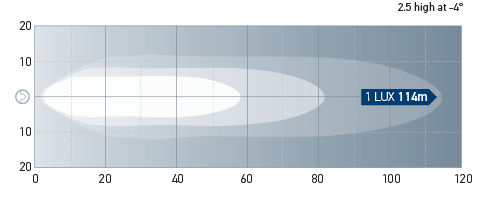

Light Output

1G0 996 776-211 Module 70-S Long Range
1G0 996 776-211 Module 70-S Long Range
