Module 50 LED Ultra-Compact Work Lamp

With the Module 50 LED, HELLA now offers an ultra-compact work lamp that achieves a high light output despite its size. A specially developed lens system concentrates the light and distributes it to the range of operation. The Module 50 LED is the smallest work lamp in the HELLA product range and is therefore particularly suitable for installations with space constraints.
At 800 lumens, the light output is well suited to close-range illumination.
There is also an optic-free version that facilitates long-range and/or spot illumination. Thanks to its powerful light output, the Module 50 LED can replace standard halogen work lamps (e.g. H3/55 Watt) – despite only having a power consumption of 15 Watts.
With its colour temperature of 5,700 Kelvin, the light from the LED work lamp is very similar to daylight. This helps to distinguish colours more easily in the dark, and thus facilitate the human eye’s sensory perception task. This in turn facilitates work at night and prevents the eyes tiring quickly.

• Innovative LED technology
• Ultra-compact design
• Sturdy housing
• Dust and waterproof

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

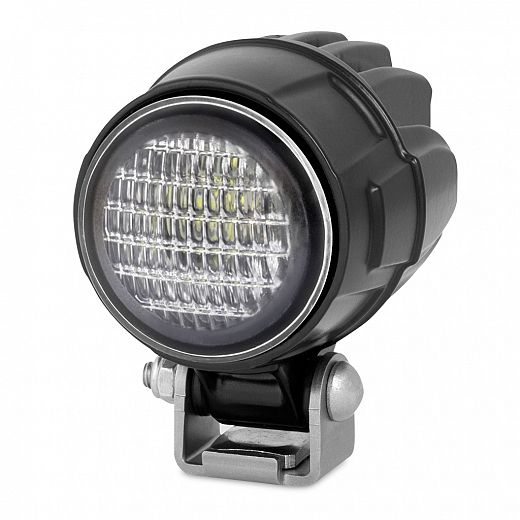

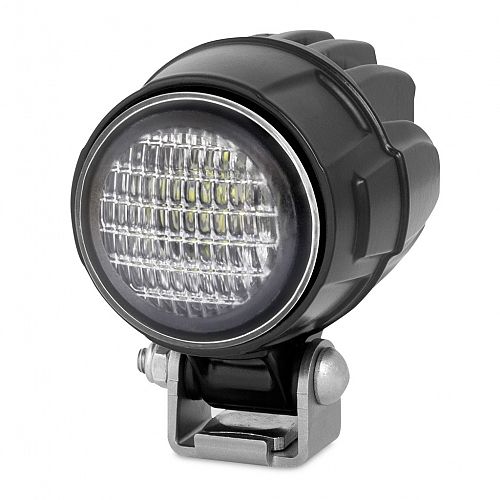

Module 50 LED Ultra-Compact Work Lamp - Close Range

Module 50 LED Ultra-Compact Work Lamp - Close Range

1560

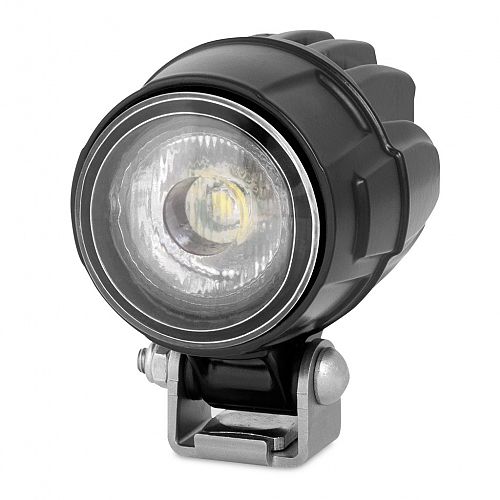

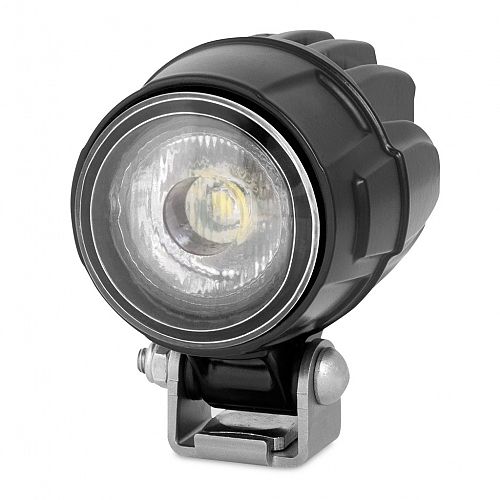

Module 50 LED Ultra-Compact Work Lamp - Long Range

Module 50 LED Ultra-Compact Work Lamp - Long Range

1560-LR

Specifications

Mounting

Upright.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

15W

Light Output

800 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed twin core cable and DT plug.

Compliance

ECE  R10

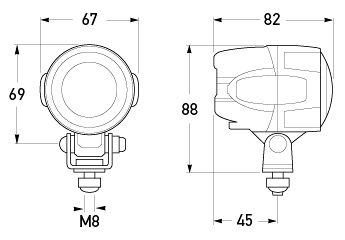

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

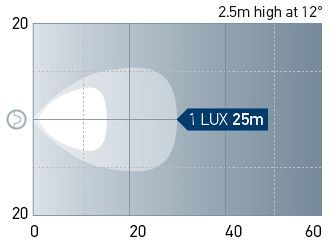

Beam pattern: Module 50 - Close range.
Beam pattern: Module 50 - Close range.

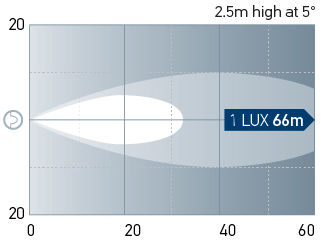

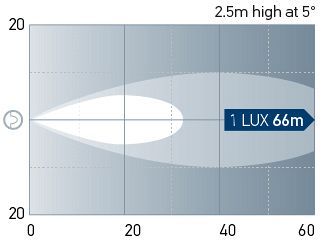

Beam pattern: Module 50 - Long range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Module 50 - Long range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
