Module 90 LED Work Lamp

The Module 90 LED is a robust work lamp in a universal, attractive design. The black aluminium housing features cooling fins which ensure the required heat dissipation from the 4 high-power LEDs. In addition, temperature sensors protect the work lamp from overheating.

Thanks to its powerful light output of 3400 lumens, the module 90 LED can replace Xenon work lamps, despite consuming just 40W of power. This makes this LED work lamp ideal for use on battery operated vehicles or on vehicles where the alternator is already under a heavy load.

The light is distributed by a specially developed, multifaceted reflector, thus ensuring homogeneous illumination. The light can be operated at both 12V or 24V DC. The integrated electronics protect the device in the event of a polarity reversal and guarantee constant brightness, even when operating with voltage fluctuations between 9 and 33 volts DC. At 6500°K, the light from the LED work lamp is very similar to daylight. This helps to distinguish colours more easily in the dark, and thus facilitate the human eye’s sensory perception task.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

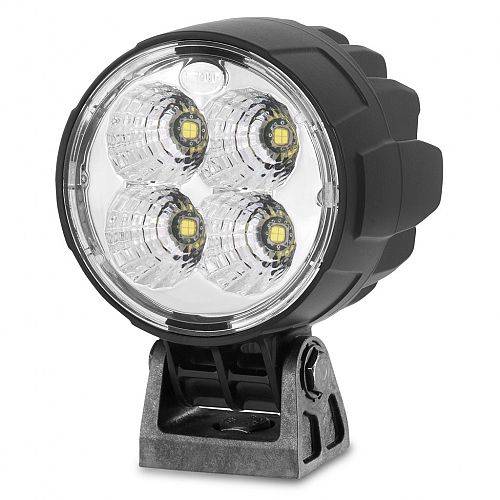

Module 90 LED Work Lamp - Close Range

Module 90 LED Work Lamp - Close Range

1564

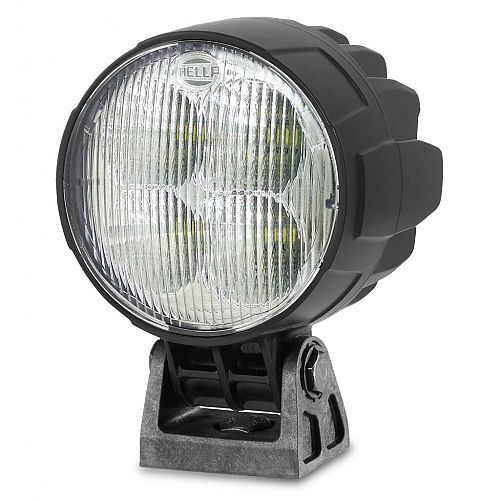

Module 90 LED Work Lamp - Long Range

Module 90 LED Work Lamp - Long Range

1564-LR

Specifications

Mounting

Upright or pendant.
Swivel mount 9.1530.07 available as an optional extra.
Detachable pipe socket base also available.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

40W

Max. Light Output

3400 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2.0m of sheathed cable with DT plug.

Spare Part

9.1557.05 Plug and lead 0.75mm2
9.1549.05 Plug and lead 1.25mm2

Compliance

E1    ECE R10  CE

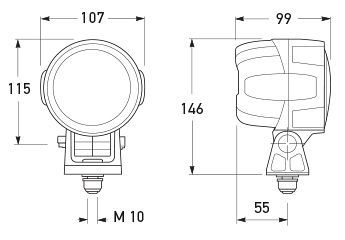

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

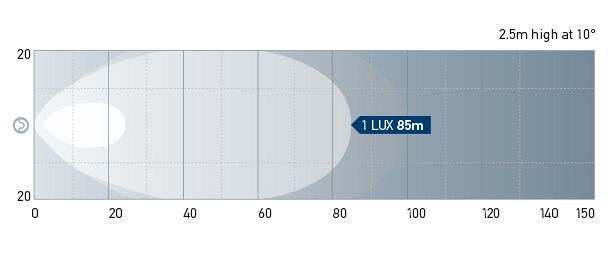

Beam pattern: 1564 - Close Range.
Beam pattern: 1564 - Close Range.

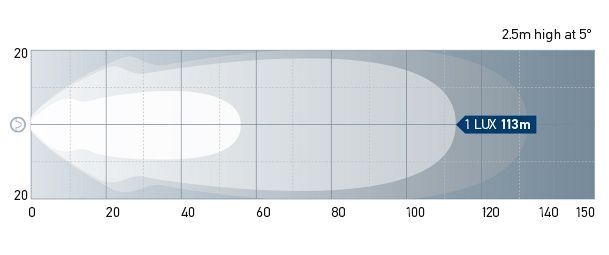

Beam pattern: 1564-LR - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: 1564-LR - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
