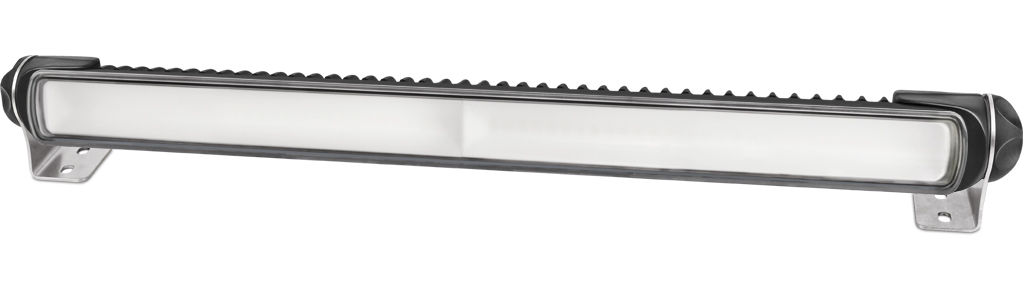

BL470 LED Work Lamp - Diffuse Flood

The BL470 LED work lamp features a unique diffuse flood lens with a powerful light output of 3600 lumen while only consuming 36W.

It is ideal for illuminating decks, garages, workshops, trailers, caravans and other close range applications where large amounts of light are needed. The dual function level (100% and 10%) is also handy for reducing power consumption during long term use.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

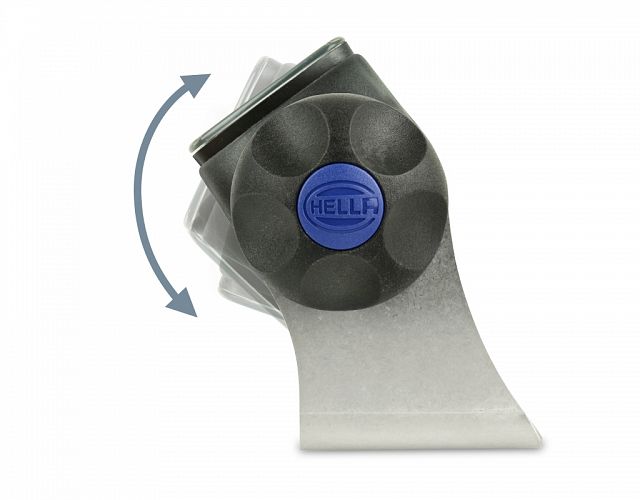

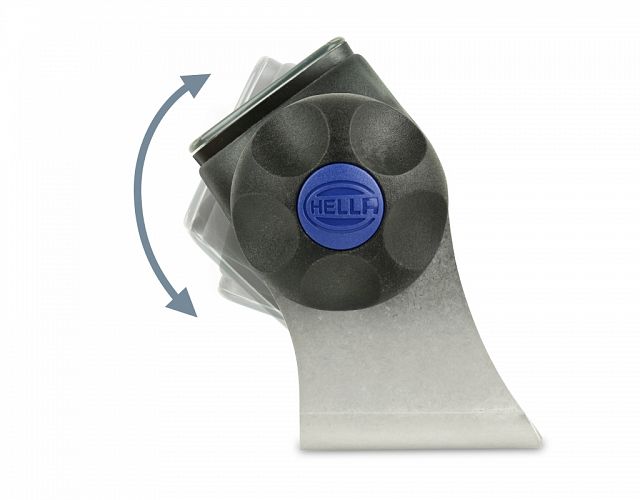

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

BL470 LED Work Lamp - Diffuse Flood

BL470 LED Work Lamp - Diffuse Flood

1GJ 958 130-521

Specifications

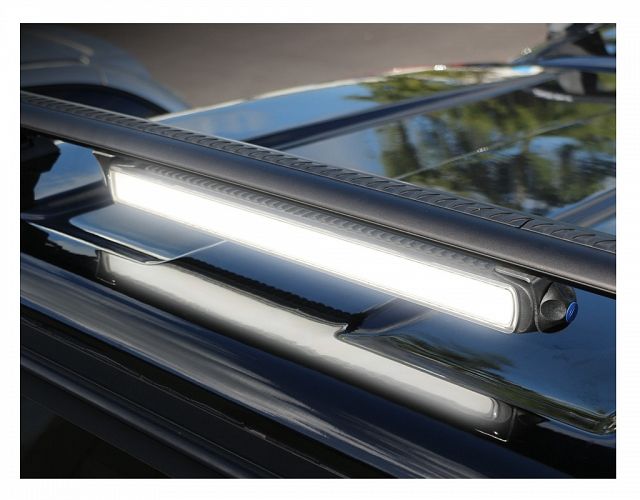

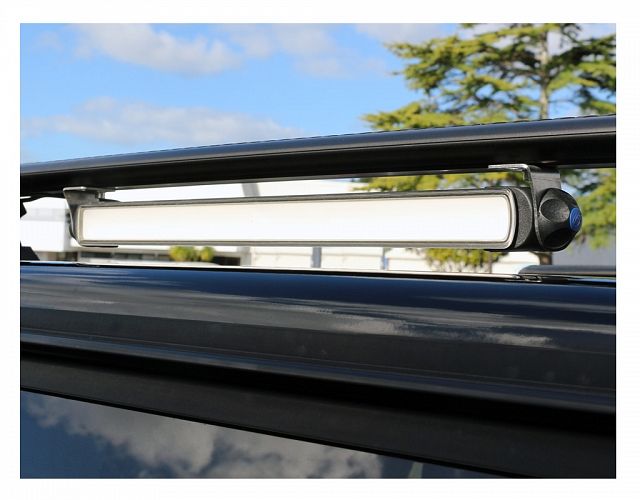

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Low: 4W
High: 36W

Max. Light Output

3600 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

CE

CE

Contents

1 x BL470 LED Work Lamp 2 x HD mounting brackets 1 x Instruction booklet

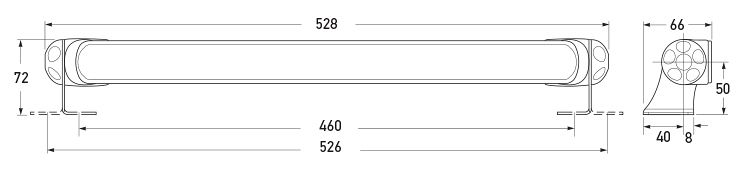

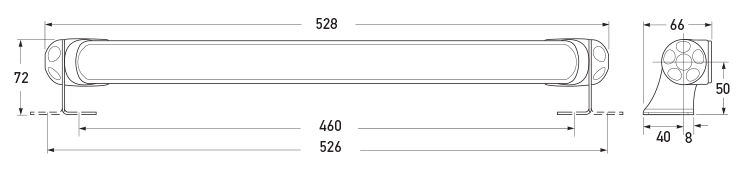

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

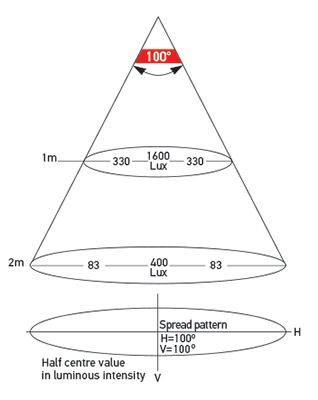

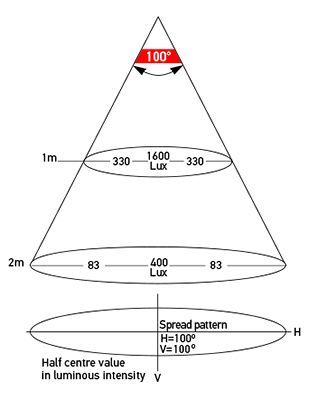

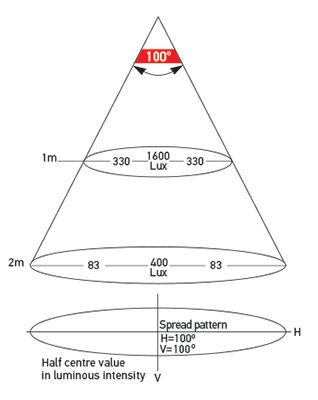

Illumination Chart: Diffuse Flood
Illumination Chart: Diffuse Flood
