HELLA

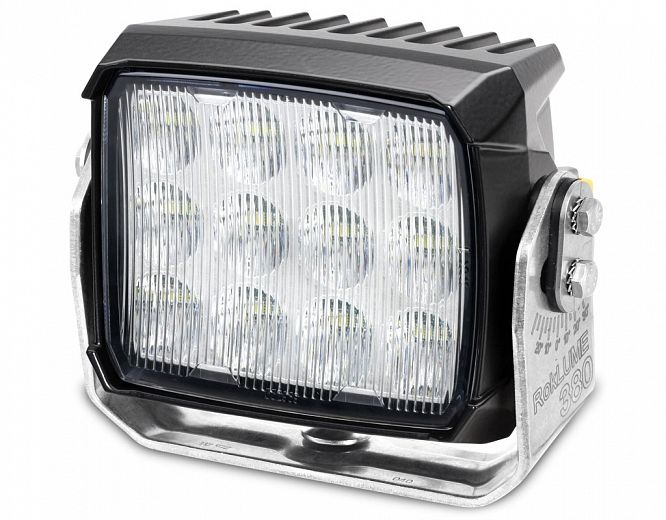

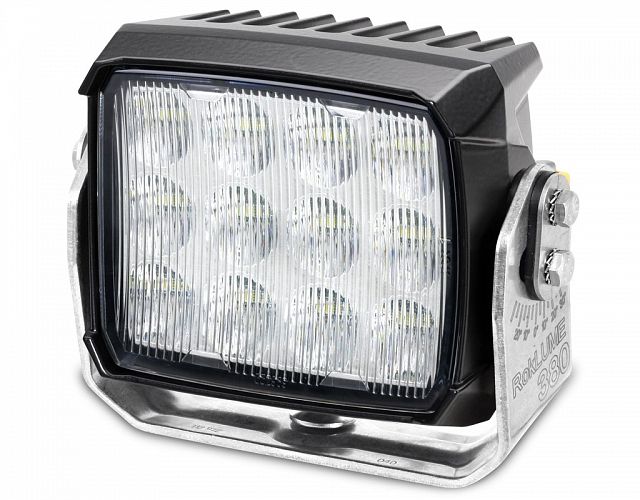

RokLUME 380 LED Work Lamp - Close Range Heavy Duty

The RokLUME 380 Close Range features a powerful light output of 7500 measured lumens and an extremely robust design, ideal for the most demanding environments and applications. The latest LEDs and engineered optics combine to produce a broad and even light reaching up to 142m long by 100m wide. The colour temperature of 5000K is similar to daylight meaning improved comfort and reduced eye strain over long periods of use.

NanoSafe Technology - LED Work Lamps

NanoSafe - Housing Technology
NanoSafe is a advanced non-stick and easy to clean surface coating. Three additional layers were implemented into the NanoSafe coating leading to much higher and longer resistance against corrosion.

The NanoSafe technology is ideal for mining applications, where conditions are extremely harsh.

The lamp is extremely tough! A hard-coated polycarbonate lens provides increased protection against impact. Secure and reliable mounting is achieved thanks to the heavy duty 316 stainless steel bracket and a proven rubber dampening system keeps vibration in check.

• Massive 7500 Lumen measured light output
• Completely sealed against dust and water
• Rugged, tested to 200g shock loads

• Double insulated silicone supply cable with DT connector

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

RokLUME 380 LED Work Lamp - Close Range Heavy Duty

RokLUME 380 LED Work Lamp - Close Range Heavy Duty

1GA 996 197-011

Specifications

Mounting

Upright or pendant.

Voltage

20 - 32V

Power Consumption

84W

Max. Light Output

7500 lumen

Protection

Reverse polarity protection.
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

300mm harness with DT socket (counter plug supplied)

Compliance

ECE R10      CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

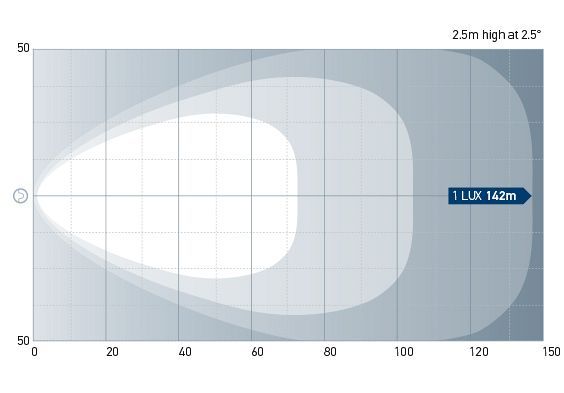

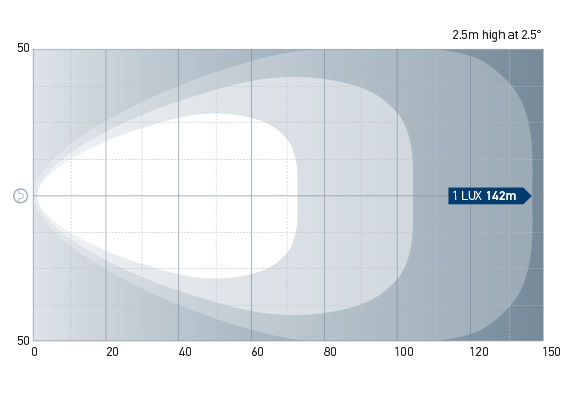

RokLUME 380 Close Range - Beam Pattern
RokLUME 380 Close Range - Beam Pattern
