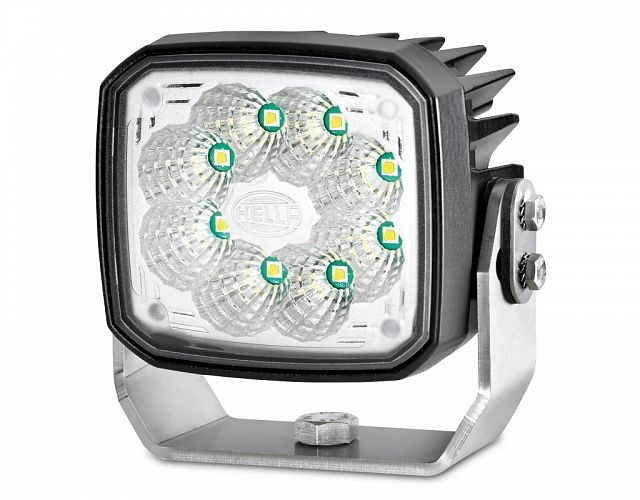

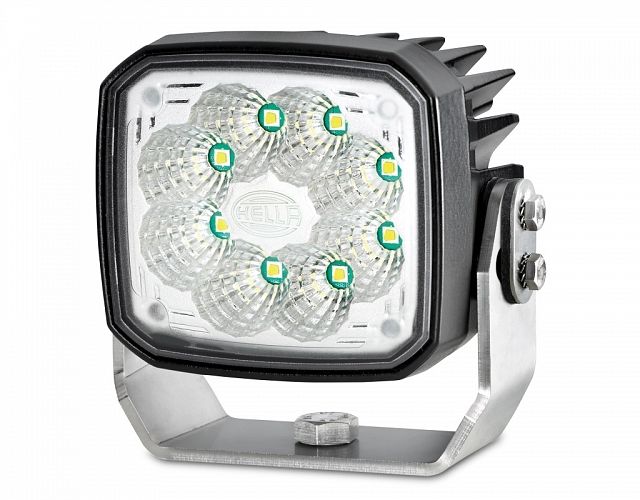

Ultra Beam Gen II LED Work Lamp - Heavy Duty

The world’s most popular work lamp series, Ultra Beam, has now been updated to a brighter version. The Ultra Beam Gen II offers high light output in a practical design, meaning that it can be used almost anywhere thanks to its compact dimensions. The light output is a powerful 4,000 lumens with a power consumption of only 56W. The light is distributed by a specially developed multi-faceted reflector, thus ensuring homogeneous illumination.

The integrated electronics protect the device in the event of polarity inversion and guarantee constant brightness, even when operating with voltage fluctuations between 9 and 33 Volts. This ensures that the work lamp stays functional and guarantees safe working at night. With its colour temperature of 6,500° Kelvin, the light from the LED work lamp is very similar to daylight.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

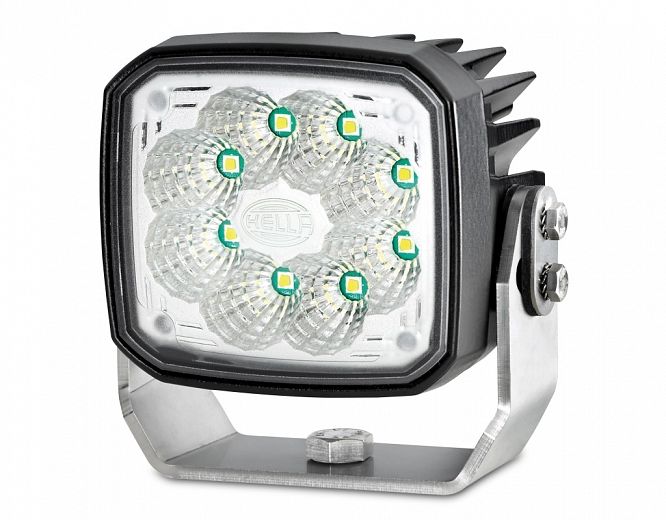

Ultra Beam Gen II LED Work Lamp - Close Range - Heavy Duty

Ultra Beam Gen II LED Work Lamp - Close Range - Heavy Duty

1566-HD

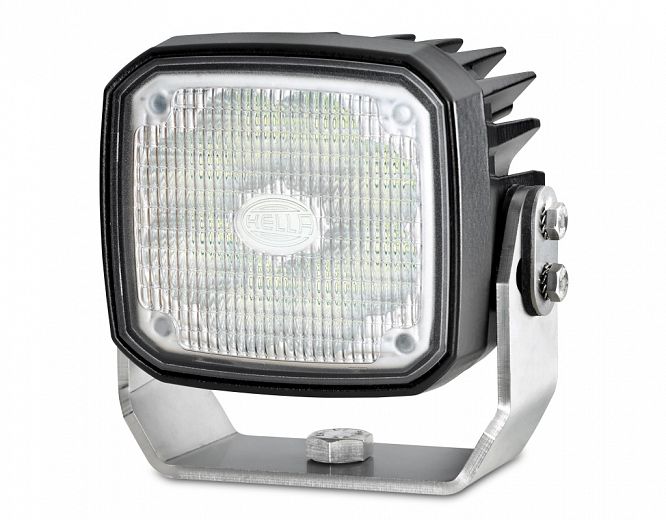

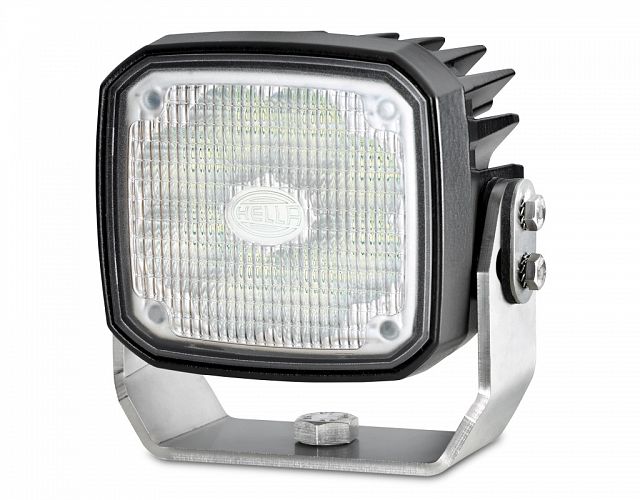

Ultra Beam Gen II LED Work Lamp - Long Range - Heavy Duty

Ultra Beam Gen II LED Work Lamp - Long Range - Heavy Duty

1566-HDLR

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

56W

Max. Light Output

4000 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed twin core cable and DT plug.

Compliance

ECE R10  CE

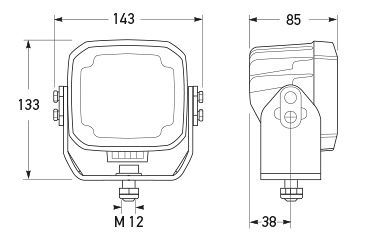

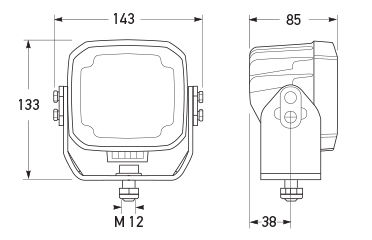

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

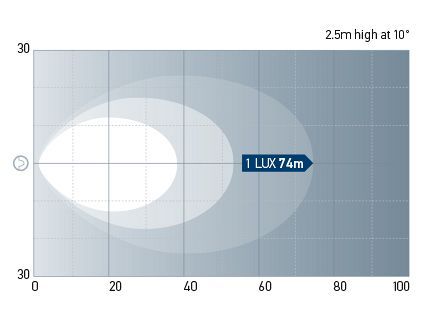

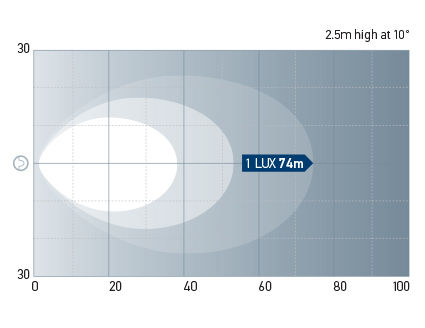

Close Range Beam Pattern
Close Range Beam Pattern

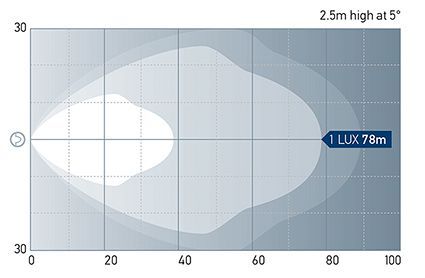

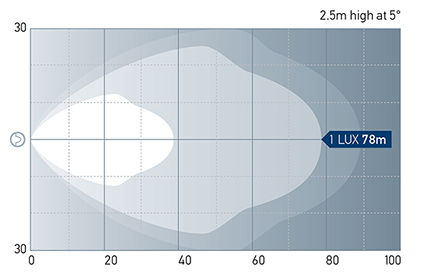

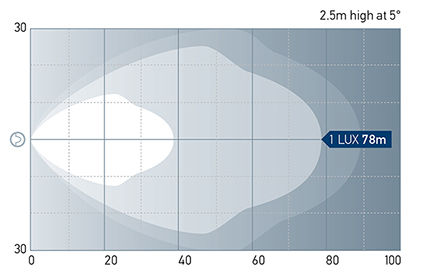

Long Range Beam Pattern<br><br>One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Long Range Beam Pattern

One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
