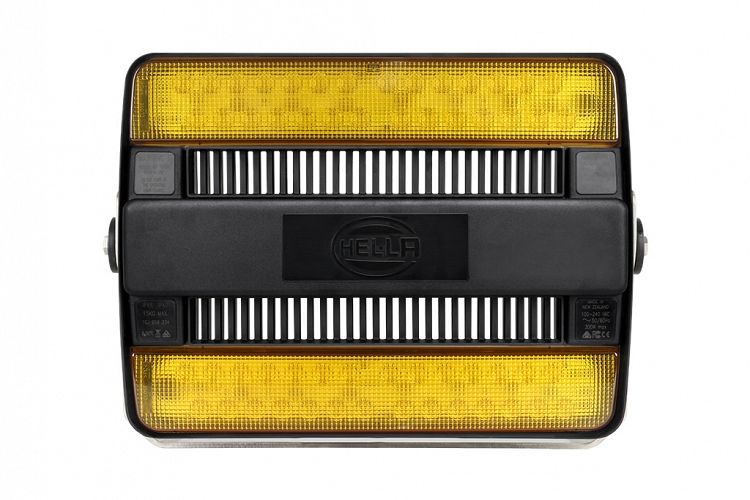

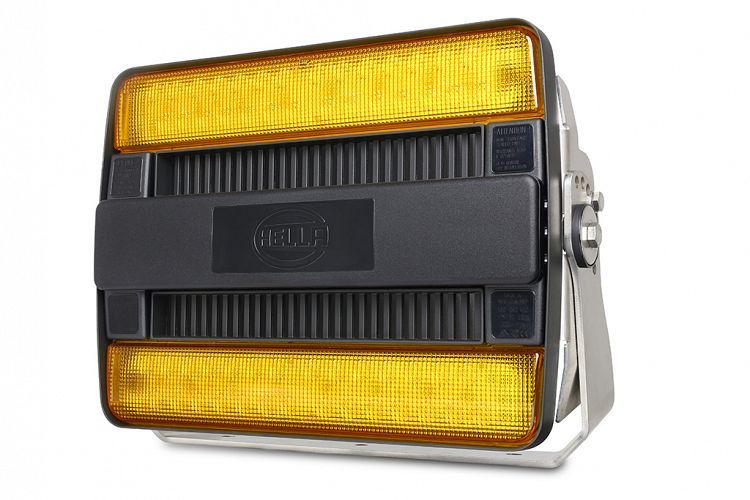

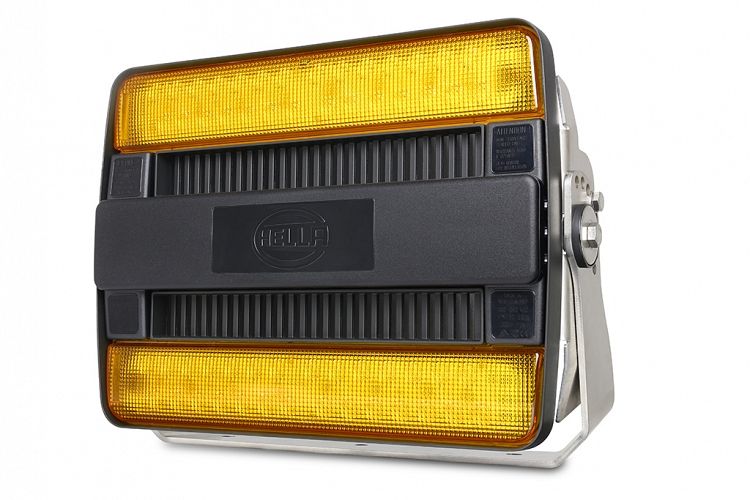

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty

The Amber 110/230V AC HypaLUME has been designed for applications where high output lighting in extreme environments is required. Using light with a warmer colour temperature can provide additional improvements in visibility for areas of high dust, fog and/or snowy conditions. The lamp produces a net output of 19,000 lumens at a voltage input range of 100-240V AC whilst only consuming 260W.

Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp withstands the toughest conditions. The premium aluminium housing is corrosion resistant with a non-stick and easy to clean surface coating. Heavy duty polycarbonate lens offers unbeatable toughness against impacts and vibration. The LEDs have a colour temperature of 2500K to produce significantly reduced glare compared to traditional white flood lighting.

The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME is also protected from over voltage and short circuit faults. The HypaLUME is designed to operate over a temperature range from -40°C to +50°C.

Rollover/tap the icons below for further details:

LED Technology

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

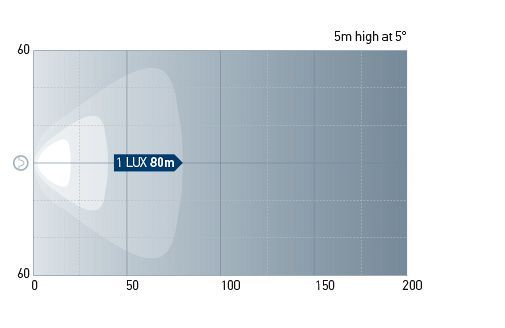

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Close Range

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Close Range

PART NO: 1GJ 958 334-111

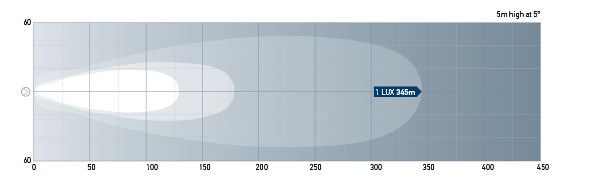

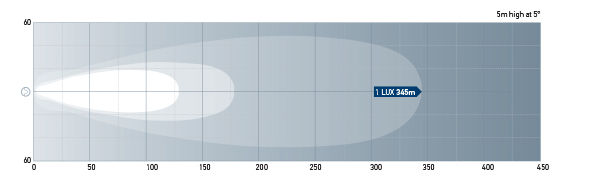

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Long Range

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Long Range

PART NO: 1GJ 958 334-121

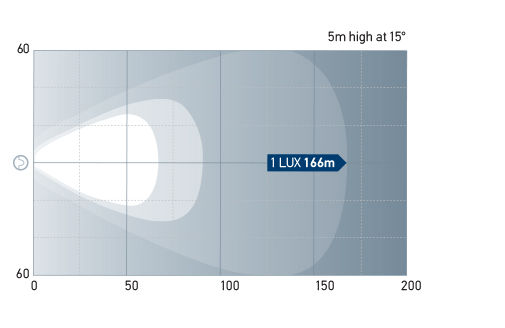

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Extra Wide

HypaLUME 110/230V AC Amber LED Flood Light - Heavy Duty - Extra Wide

PART NO: 1GJ 958 334-131

Specifications

Mounting

Upright or pendant.

Voltage

Optimum brightness at input voltages from 100-240V AC

Power Consumption

260W max.

Actual Light Output

19,000 lumen typical (Extra wide: 15,500 lumen typical)

Operating Temperature

-40oC to +50oC

LED Colour Temperature

2500 K

Protection

IP 66 (Protection against dust and high pressure water jets)
IP 67 (Protection against dust and temporary water immersion)
Over voltage, short circuit and over temperature protection

Cable Length

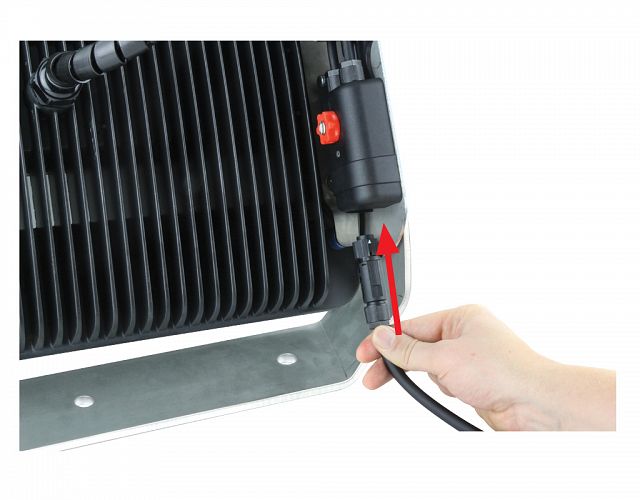

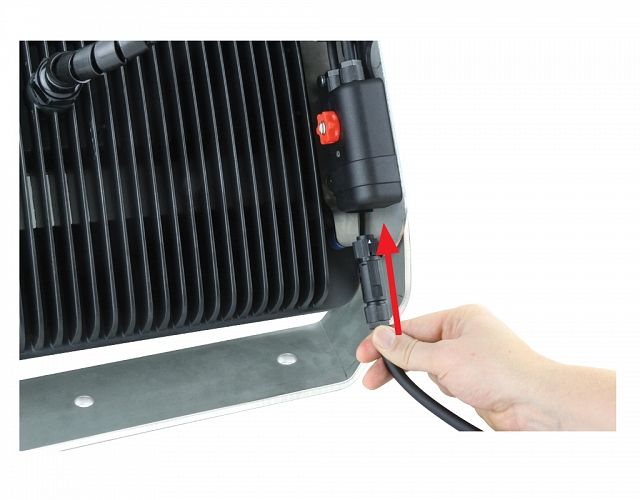

Supplied with 2.0m of easy plug-in sheathed cable

Connection

Wieland RST Mini - 16A

Lens Material

Polycarbonate

Compliance

CE IEC 60598.2.5 CE

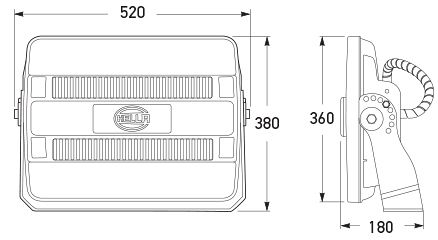

Outline


Top
