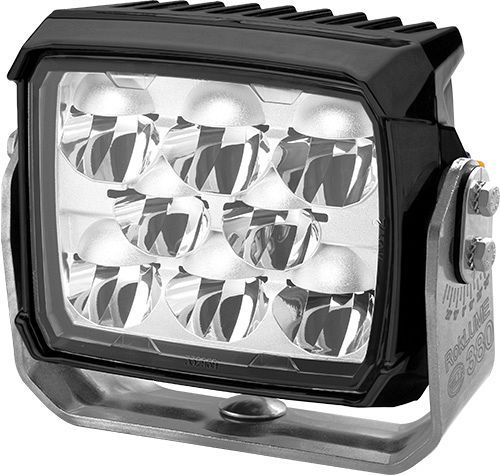

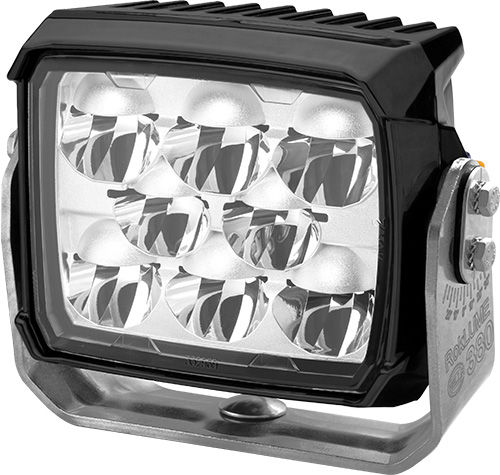

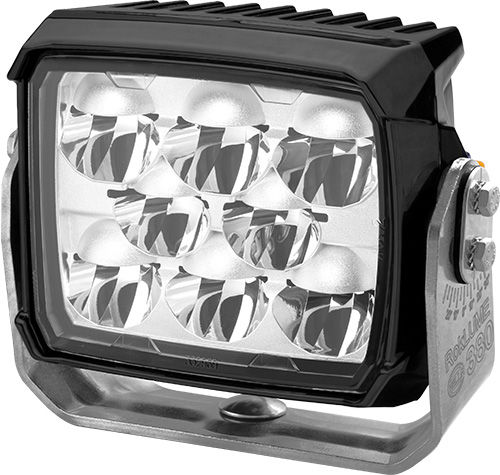

RokLUME 380N LED Work Lamp - ZEROGLARE

HELLA developed the ZEROGLARE illumination with a new reflector design and optical system to bring the safety and comfort of highway driving to mining operations!

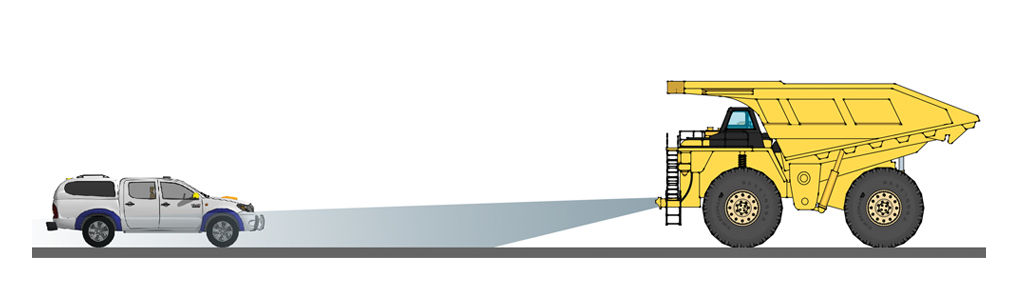

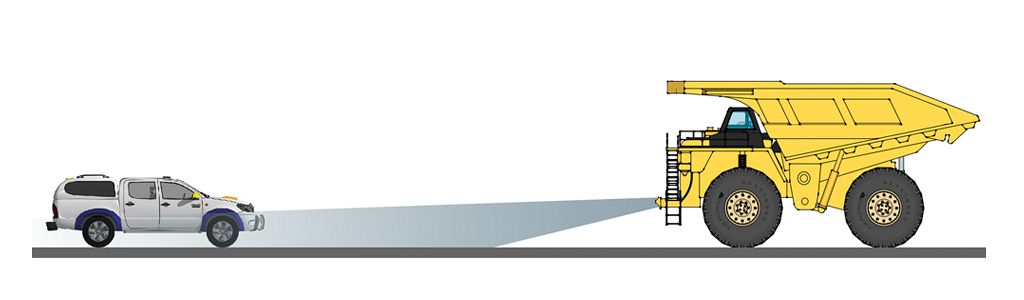

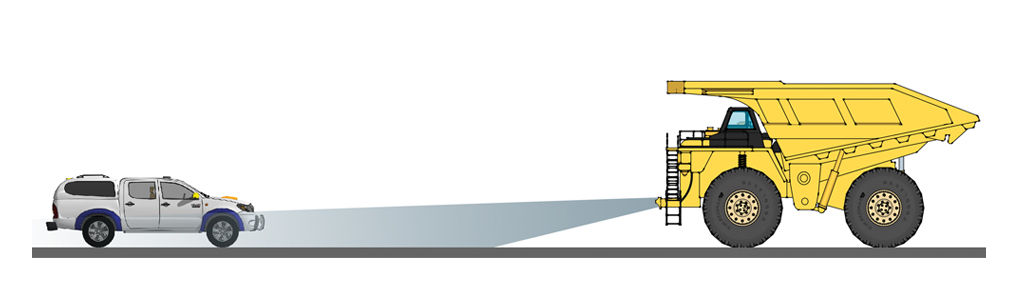

The ZEROGLARE optical system ensures no light will be directed into the eyes of oncoming drivers, eliminating the occurrence of discomfort or disability glare. The innovative optical system has a sharp horizontal cut-off line to control the light onto the ground in front of the vehicle and not into the oncoming operator’s field of vision. The beam cut off also significantly reduces glare in conditions such as fog or dust.

NanoSafe Technology - LED Work Lamps

NanoSafe - Housing Technology
NanoSafe is a advanced non-stick and easy to clean surface coating. Three additional layers were implemented into the NanoSafe coating leading to much higher and longer resistance against corrosion.

The NanoSafe technology is ideal for mining applications, where conditions are extremely harsh.

The RokLUME 380N ZEROGLARE is the perfect work lamp for the tough conditions in a mining business. The impact resistant hard-coated polycarbonate lens and the premium anti-corrosion aluminium housing ensure a long service life and maintenance-free lighting product. The heavy duty stainless steel bracket and the rubber dampening system keep everything in check from vibration. The electronic components fulfill the statutory approvals including ECE R10 and RCM compliance.

• Sharp cut off beam for reduced glare.
• Excellent for use in foggy or dusty conditions.
• Completely sealed against dust and water.
• Double insulated silicone supply cable with DT connector.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

RokLUME 380N ZEROGLARE Work Lamp

PART NO: 1GA 996 197-261

Specifications

Mounting

Upright, Pendant, and Horizontal Mounting

Material Description

Housing: die-cast aluminium, NanoSafe coating
Cover lens: hard-coated plastic
Bracket: stainless steel

Voltage

20-32V DC (24V DC Nominal)

Power Consumption

84W Max (4.5A Max)

Cable Length

300mm harness with DT socket (counter plug supplied)

Temperature range

- 40°C to + 85°C

Colour Temperature

5,000K

Protection

Reverse polarity protection.
IP6K8 (Protection against dust and prolonged water immersion)
IP6K9K (Protection against dust and high-pressure/steam jet cleaning)

Compliance

ECE-R10  CISPR 25 Class 4    CE

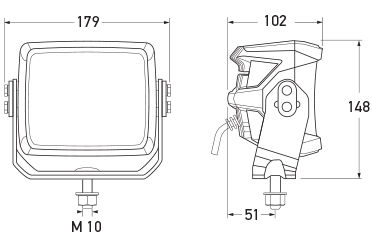

Outline

All dimensions in mm
All dimensions in mm

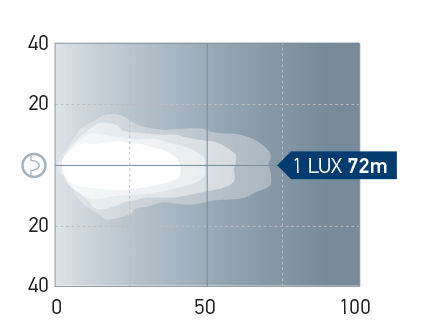

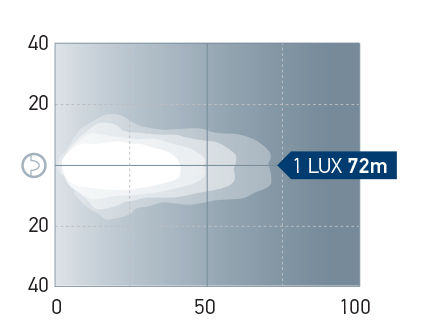

Light Output
