HELLA

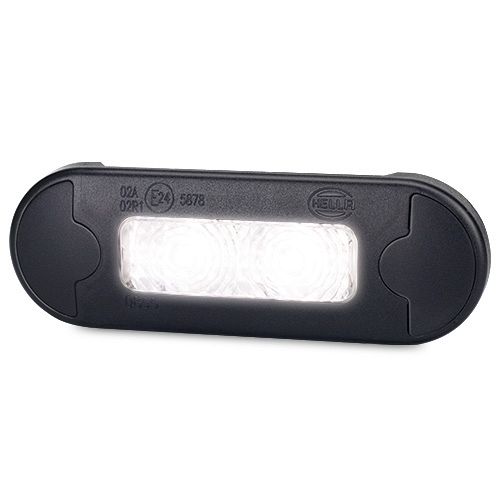

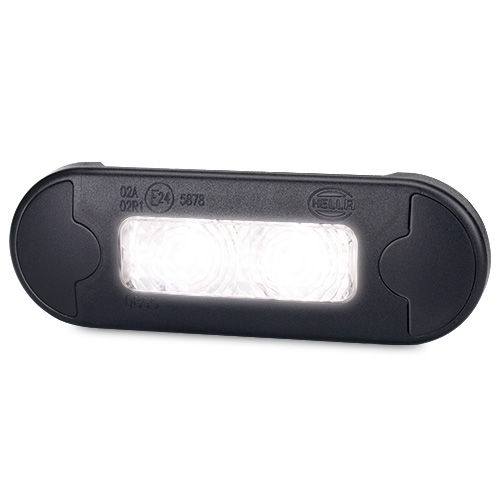

DuraLED® Flush Mount Front Position/End Outline Lamp - ECE

White front position or front end outline LED lamp (FEOL) with high impact resistant and ultra durable Grilamid® lens. Sophisticated slim profile surface mount. Optic appears clear until illuminated.

Available with stainless steel rim.

Low power consumption – Long service life
Economical running costs

Tough under pressure
Withstands high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Completely sealed, maintenance free. Superior materials feature impact, shock, vibration, UV and corrosion resistance ensuring an ultra long service life.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - ECE

2PF 959 855-201
DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - Pack of 24 - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - Pack of 24 - ECE

2PF 959 855-207
DuraLED® Flush Mount Front Position/End Outline Lamp - 2.5m Cable - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 2.5m Cable - ECE

2PF 959 855-241
DuraLED® Flush Mount Front Position/End Outline Lamp - 2.5m Cable - Pack of 16 - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 2.5m Cable - Pack of 16 - ECE

2PF 959 855-247
DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - ECE

2PF 959 855-251
DuraLED®  Flush Mount Front Position/End Outline Lamp - 500mm Cable - Pack of 24 - ECE

DuraLED® Flush Mount Front Position/End Outline Lamp - 500mm Cable - Pack of 24 - ECE

2PF 959 855-257

Specifications

Mounting

Flush mount. Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness at input voltage from 9 to 33 volts.

Power Consumption

0.5W

Protection

Reverse polarity and transient spike protection.
IP 6K7  (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

2PF 959 855-2xx Pre-wired with 500mm of sheathed multi-core cable.
2PF 959 855-24x Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9AB 959 685-201 Polished stainless steel rim - ECE engraved
9HD 980 858-018 White screw cap (Pack of 4)

Lens Material

Grilamid®

Approval Markings

E24 5878 E4  10R 04-2899

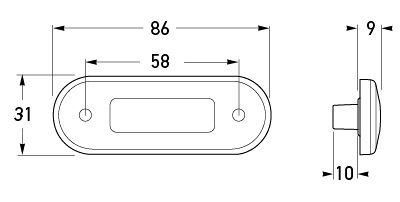

Outline

All dimensions in mm.
All dimensions in mm.
Optional Stainless Steel rim
Optional Stainless Steel rim
Hole pattern
Hole pattern

Documents

Document File Name File Size
  2PF 959 855-2xx Instruction Sheet.pdf 637.34 KB
