HELLA

LED Recess Mount Cab Marker Lamp

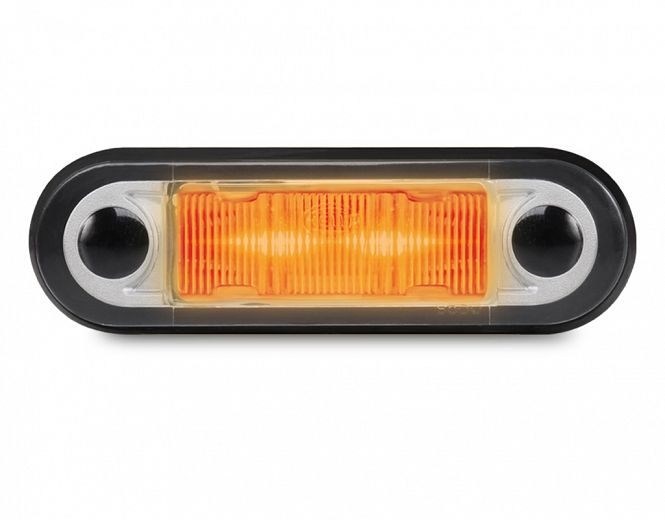

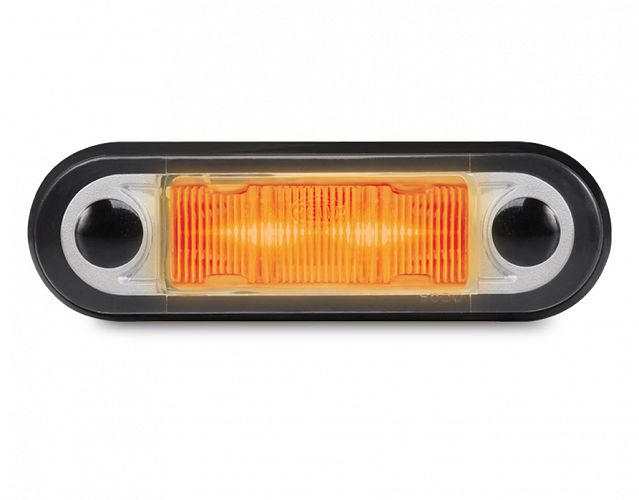

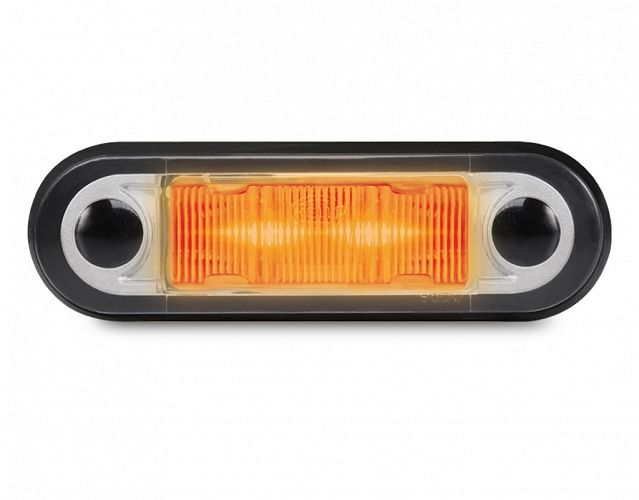

Amber cab marker LED lamp. Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Recess Mount Cab Marker Lamp

LED Recess Mount Cab Marker Lamp

2057
LED Recess Mount Cab Marker Lamp - Bulk pack 4

LED Recess Mount Cab Marker Lamp - Bulk pack 4

2057-BULK

Specifications

Optics

Optic appears clear until illuminated

Mounting

Recess mount.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6   (Protection against dust and high pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.
Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Compliance

ADR 45/01

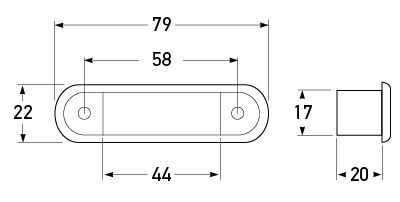

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2057 Instruction Sheet.pdf 467.99 KB
