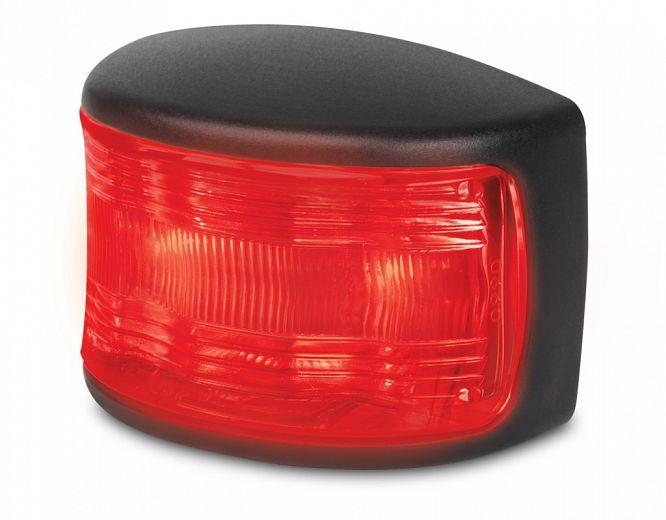

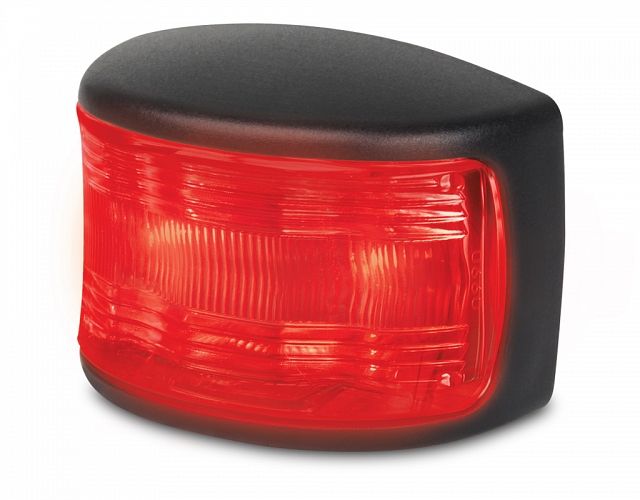

DuraLED® Heavy Duty Rear Position/End Outline Lamp with DT Connector

DuraLED® Heavy duty red rear position or end outline LED lamp (REOL) with DT connector and nylon housing. Featuring ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance.

Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Heavy Duty Rear Position/End Outline Lamp with DT Connector

PART NO: 2XA 980 990-601
Legacy PN: 2312

DuraLED® Heavy Duty Rear Position/End Outline Lamp with DT Connector - Bulk pack 8

PART NO: 2XA 980 990-607
Legacy PN: 2312BULK

Specifications

Optics

Optic appears clear until illuminated

Mounting

Surface mount.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high pressure/steam jet cleaning)

Spare Part

4960-P 2 pole DT plug, wedge and 2 contacts.
9.1557.05 2 Pole Plug with 2.0m of Sheathed Multi-core Cable 0.75mm2 Tinned

Lens Material

Grilamid®

Compliance

ADR 49/00

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XA 980 990-60x_Instruc_2312_2312BULK_DuraLED_Rear_Outl-Position_Lamp.pdf 303.82 KB
