HELLA

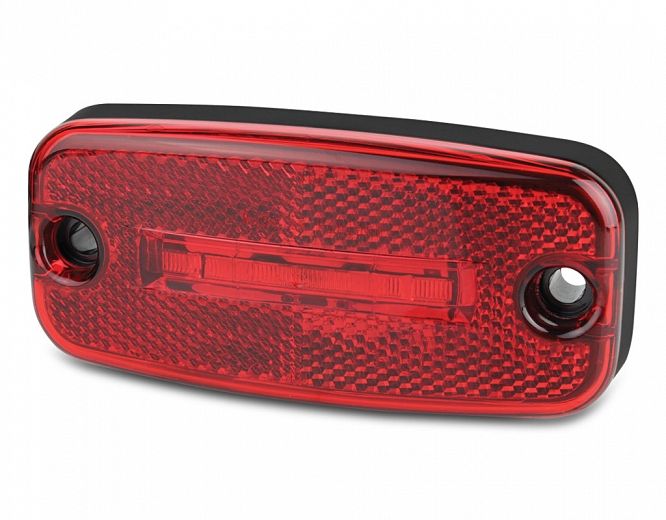

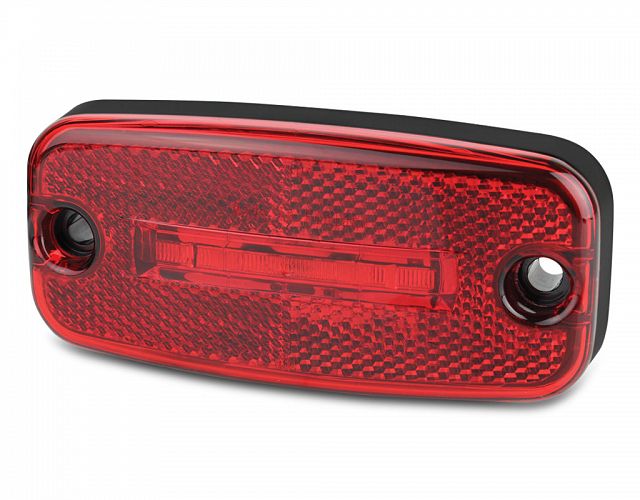

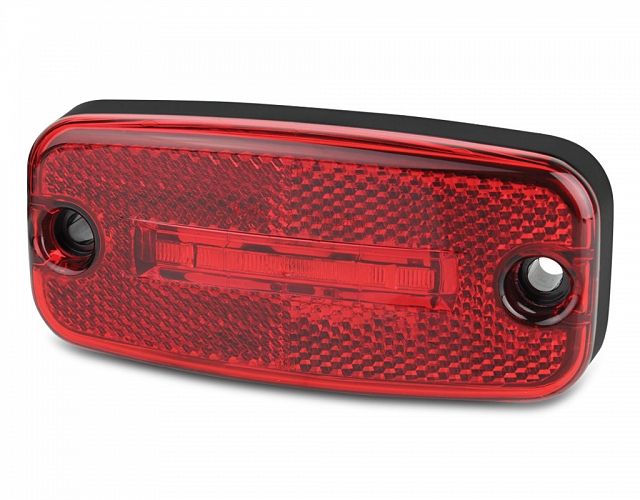

LED Rear Position Lamp - Red

LED rear position lamp with inbuilt red retro reflector. Bridge circuit for protection against polarity reversal.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

LED Rear Position Lamp - Red 12 Volt

LED Rear Position Lamp - Red 12 Volt

2305
LED Rear Position Lamp - Red 24 Volt

LED Rear Position Lamp - Red 24 Volt

2306

Specifications

Mounting

Surface mount.
Suitable for horizontal mounting.

Power Consumption

12V 0.5W
24V 1W

Protection

Fully sealed against dust, high-pressure washing/steam jet cleaning.

Cable Length

Pre-wired with 5m of sheathed multi-core cable.

Compliance

ADR 47/00 ADR 49/00 E24 5881  ECE R3/02 ECE R7/02

Outline

All dimensions in mm.
All dimensions in mm.
