HELLA

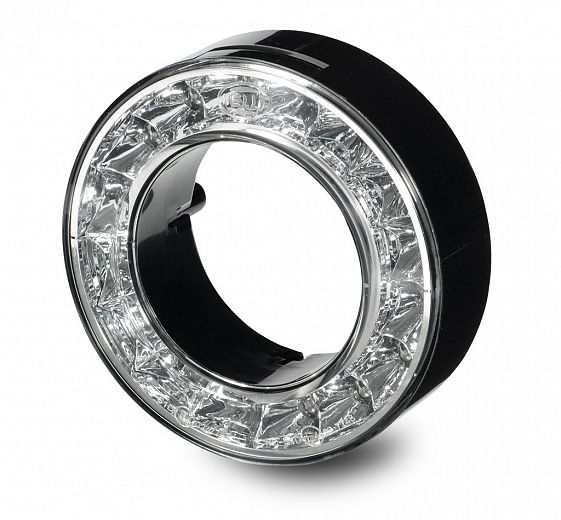

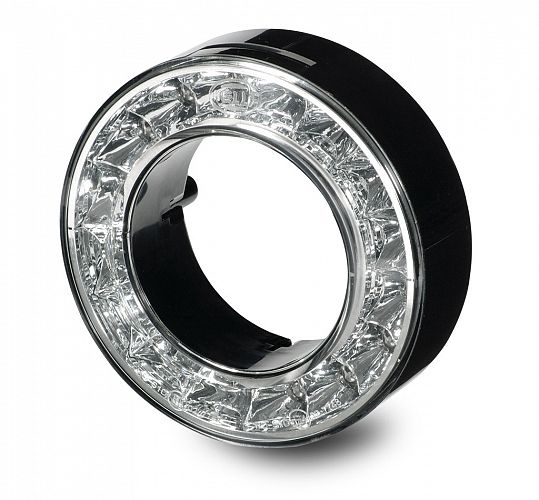

LED Ring Stop/Rear Position Lamp suit 60mm Modules - 12V

LED ring lamp suitable for use with 60mm lamps, 16 LEDs for rear position function and 8 LEDs for stop function. Clear lens. 12 volt only.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

LED Ring Stop/Rear Position Lamp - 12 Volt

LED Ring Stop/Rear Position Lamp - 12 Volt

2SB 009 362-021

Specifications

Optics

Optic appears clear until illuminated

Mounting

Screw mount from rear. Design ring pushes over front of 112mm lamp and locks into place.

Voltage

12V

Current Draw

Stop: 2.3W
Rear position: 0.1W

Cable Length

Pre-wired with 250mm of cable and 3 pole Super Seal socket.

Compliance

E4 7746

ECE R7/02

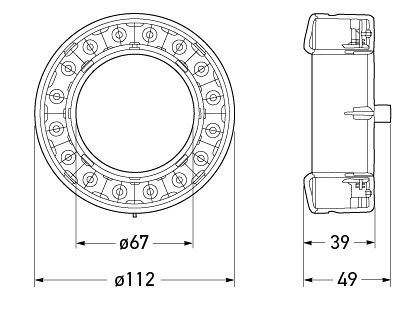

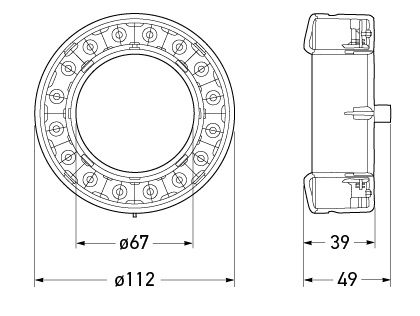

Outline

All dimensions in mm.
All dimensions in mm.
