HELLA

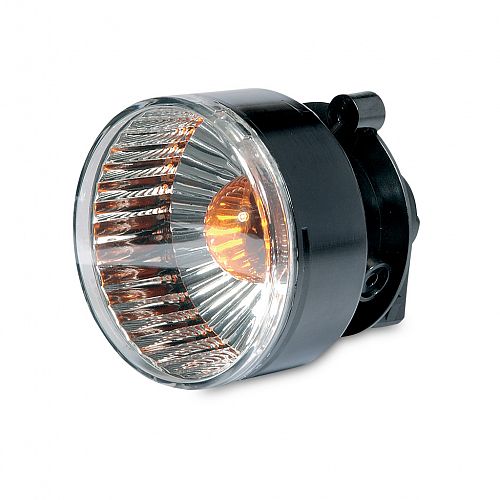

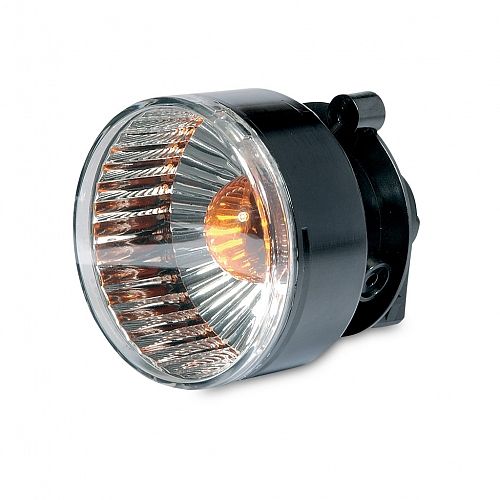

Rear Direction Indicator Lamp - 66mm Module

The lamp features a reflector with a high quality facet pattern and a clear lens. Optimised light output, making applications behind outer cover lenses possible.

For 24V applications, please install bulb P/N RY2421

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Rear Direction Indicator Lamp - 66mm Module - 12V Bulb

PART NO: 2BA 009 001-001

Specifications

Mounting

Mounting depth of 80mm. The standard version is designed to be mounted with a screw fitting from the rear.
If required the lamp can be fitted from the front using an optional mounting plate. Simplified electrical connection via a two or three pin plug (not supplied).

Bulb to Suit

12V RY1221
24V RY2421

Accessories

9HB 161 122-007

Silver Design Ring for 60mm modules (Optional)

9XD 161 119-007

Mounting Plate

8JD 156 150-807

Two Pole Plug (with terminals AND seals)

2SB 009 362-021

LED Ring Stop/Rear Position Lamp - 12V

Compliance

E4 6546 ECE R6/01

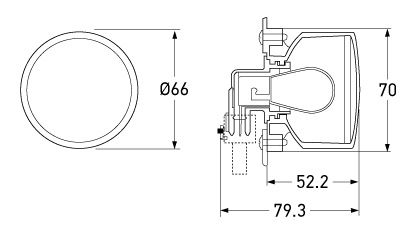

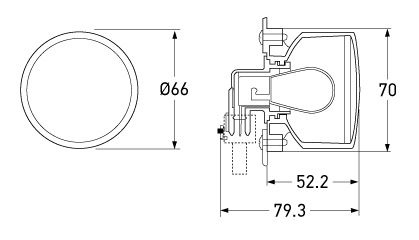

Outline

All dimensions in mm.
All dimensions in mm.
