HELLA

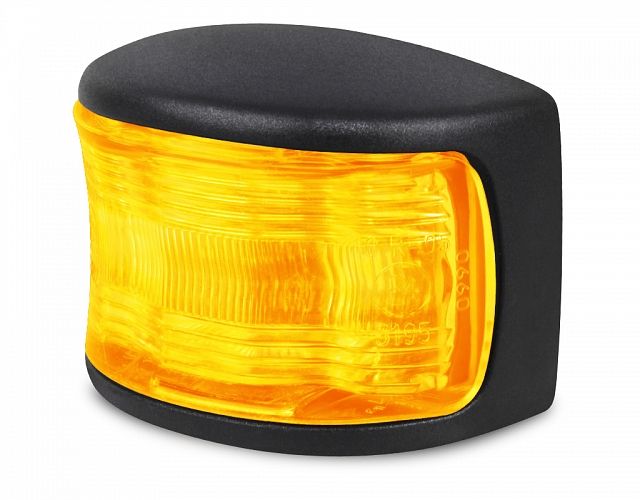

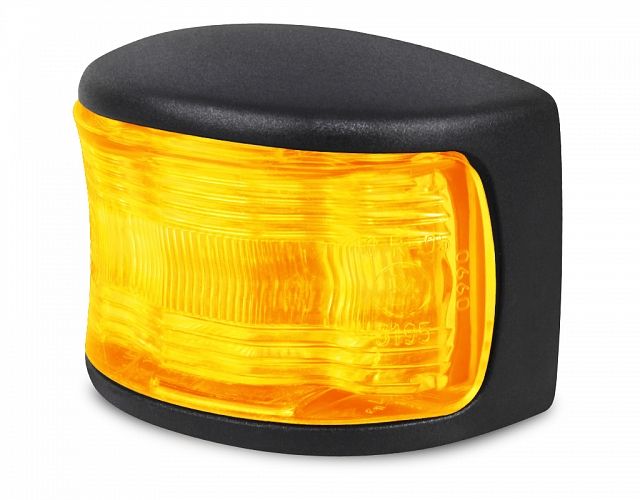

DuraLED® Heavy Duty Side Marker (Cat. SM1) Lamp with DT Connector

DuraLED® Heavy duty amber sidemarker LED lamp for trailers with DT connector and nylon housing. Featuring ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance.

Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Heavy Duty Side Marker (Cat. SM1) Lamp with DT Connector

DuraLED® Heavy Duty Side Marker (Cat. SM1) Lamp with DT Connector

2PS 980 990-301
DuraLED<sup>®</sup> Heavy Duty Side Marker (Cat. SM1) Lamp with DT Connector - Bulk pack 8

DuraLED® Heavy Duty Side Marker (Cat. SM1) Lamp with DT Connector - Bulk pack 8

2PS 980 990-307

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Surface mount.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness at input voltage from 9 to 33 volts.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K7  (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Spare Part

9BG 980 996-002 Black nylon housing
9BG 980 996-102 White nylon housing

Lens Material

Grilamid®

Compliance

SM1 00 E24 5892  E4 10R 05-3195

Outline

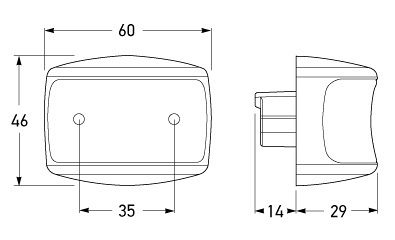

All dimensions in mm.
All dimensions in mm.

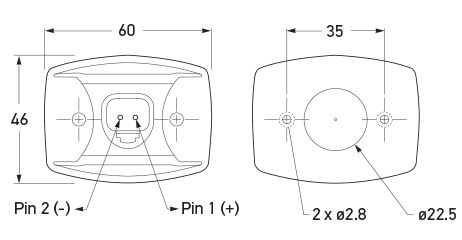

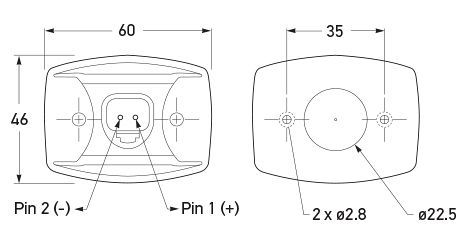

Hole diagram. All dimensions in mm.
Hole diagram. All dimensions in mm.

Documents

Document File Name File Size
  2PS 980 990-3xx Instruction Sheet.pdf 903.04 KB
