HELLA

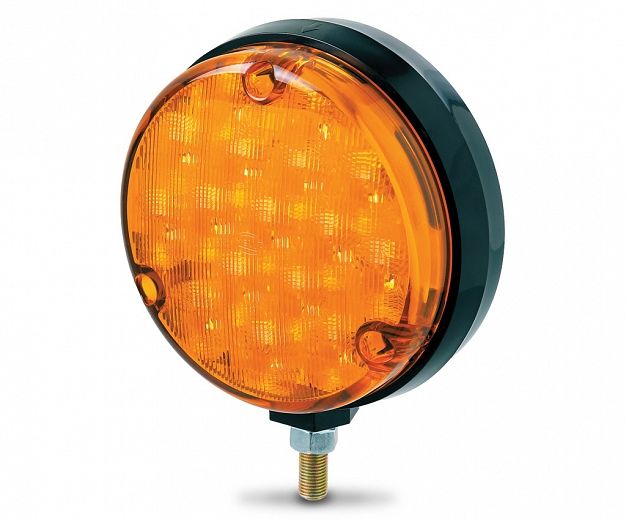

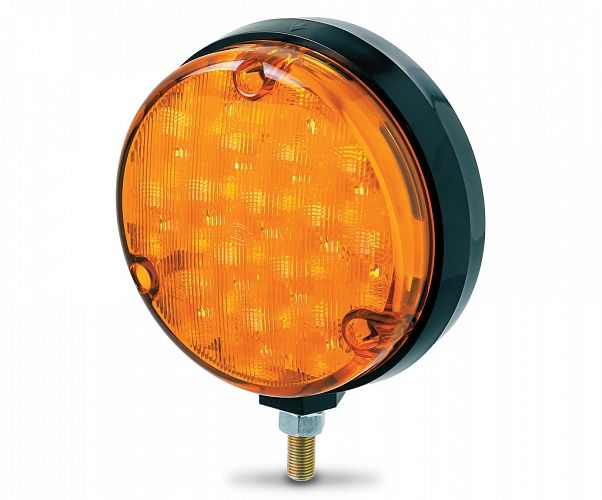

LED Front Direction Indicator Lamp (Cat.1)

Single-sided LED front direction indicator fitted with high-intensity LED insert and black housing. Fully sealed to withstand high-pressure washing.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Front Direction Indicator Lamp (Cat.1)

PART NO: 2BA 959 932-301
Legacy PN: 2128LED

Specifications

Mounting

Single bolt mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and 1500 watt Transient Voltage Suppressor (TVS)
IP 6K6   (Protection against dust and high-pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Compliance

ADR 6/00: Cat 1

ADR Categories of Direction Indicators

ADR compliant indicators are categorised according to their intended function.
Category.1 Direction indicators for the front of the vehicle.
Category.2 Direction indicators for the rear of the vehicle.
Category.5 Supplementary side direction indicators for use on a vehicle also equipped with categories 1 and 2 direction indicators.
Category.6 Supplementary side direction indicators for use on a heavy vehicle also equipped with categories 1 and 2 direction indicators.

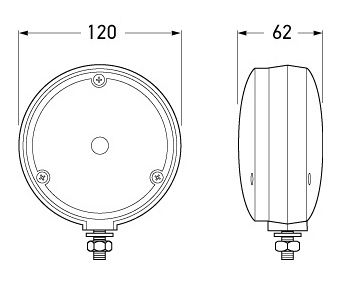

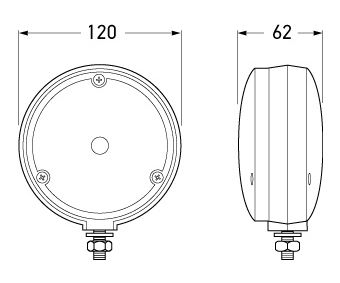

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2BA 959 932-3xx_Instructions_2128LED_110mm_Round_Indicator.pdf 208.16 KB
