HELLA

LED Courtesy Lamps - Round - Bright Warm White - Clear Lens

Attractive, energy efficient round LED courtesy lamps for interior and exterior use. Available in nine exciting colours with a range of different rim finishes.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED Round Courtesy Lamps - 12 Volt - Bright Warm White - Polished Stainless Steel Rim

PART NO: 2XT 980 500-727

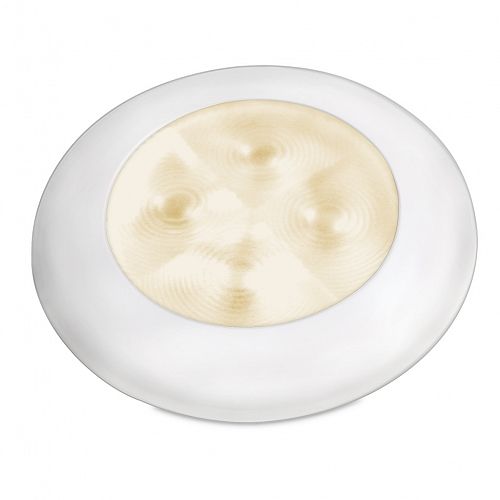

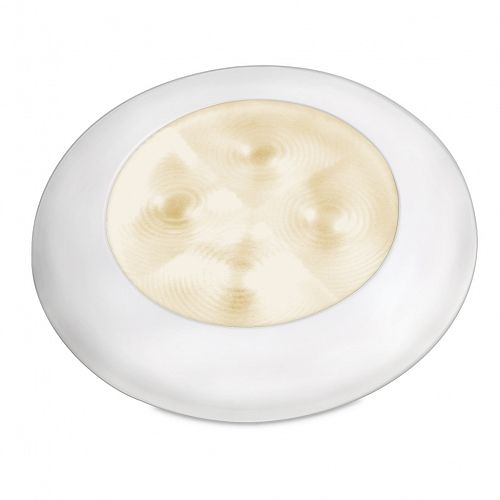

LED Round Courtesy Lamps - 12 Volt - Bright Warm White - White Plastic Rim

PART NO: 2XT 980 500-747

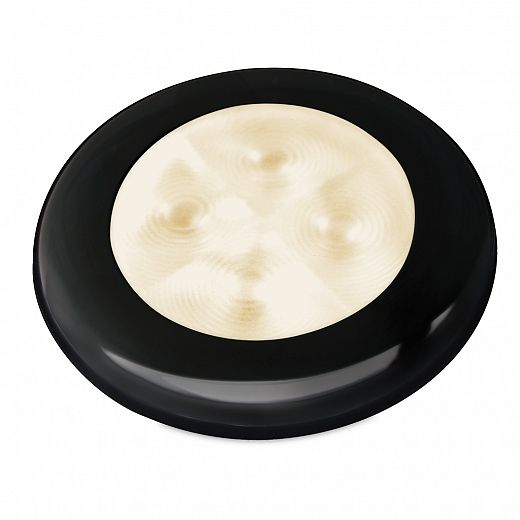

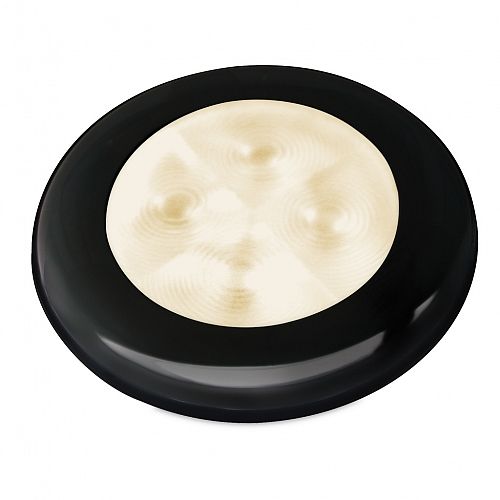

LED Round Courtesy Lamps - 12 Volt - Bright Warm White - Black Plastic Rim

PART NO: 2XT 980 500-757

LED Round Courtesy Lamps - 24 Volt - Bright Warm White - Polished Stainless Steel Rim

PART NO: 2XT 980 501-727

LED Round Courtesy Lamps - 24 Volt - Bright Warm White - Black Plastic Rim

PART NO: 2XT 980 501-757

Specifications

Mounting

Recess mount with 50mm diameter hole.

Power Consumption

<1W

Protection

Reverse polarity and voltage spike protection
Fully sealed against dust, high-pressure washing and temporary water immersion.

Cable Length

Pre-wired with 120mm of cable.

Lens Material

PMMA

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XT 980 500-XX7 Instruction Sheet.pdf 378.02 KB
