HELLA

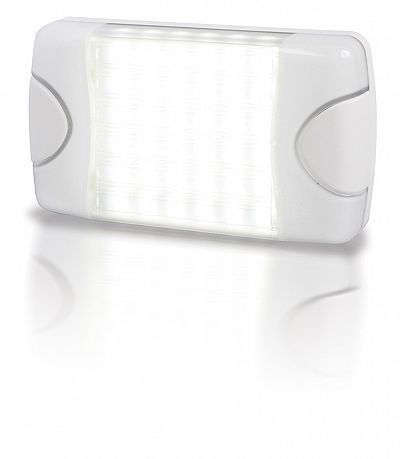

DuraLED® 20 White LED Wide Spread Lamp - White Lens

White high brightness LED lamp with exceptional light output. Incorporates high efficacy electronics and LEDs resulting in low power consumption (<4 watts) and low heat. The lamp is fully sealed against dust and moisture ingress.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

20 LED

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED<sup>®</sup> 20 White LED Wide Spread Lamp - White Lens

DuraLED® 20 White LED Wide Spread Lamp - White Lens

2JA 980 608-011

Specifications

Mounting

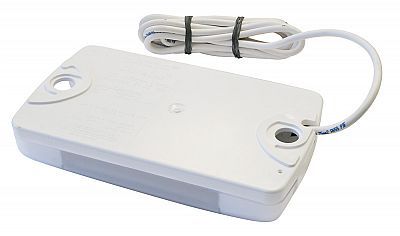

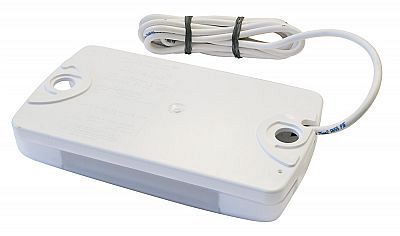

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

<4W

Protection

Reverse polarity and spike protected
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of cable.

Lens Material

PMMA

Approval Markings

CE

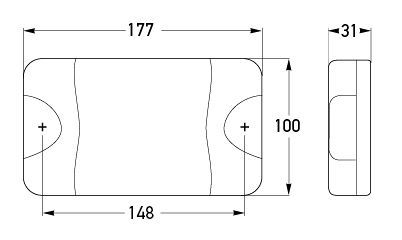

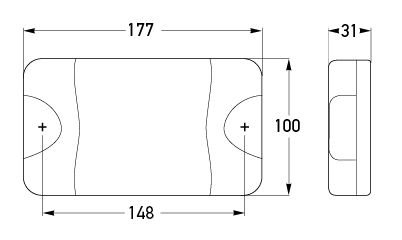

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2JA 980 608-011 Instruction Sheet.pdf 415.14 KB
