DuraLED® Courtesy Lamps - Surface Mount - Diffusion Lens

Amber, blue, red, white or green LED courtesy lamps with a diffusion lens.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Diffusion Lens - White Light

DuraLED® Surface Mount Courtesy Lamp - Diffusion Lens - White Light

2XT 959 630-457
DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Diffusion Lens - Blue Light

DuraLED® Surface Mount Courtesy Lamp - Diffusion Lens - Blue Light

2XT 959 630-257
DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Diffusion Lens - Green Light

DuraLED® Surface Mount Courtesy Lamp - Diffusion Lens - Green Light

2XT 959 630-557

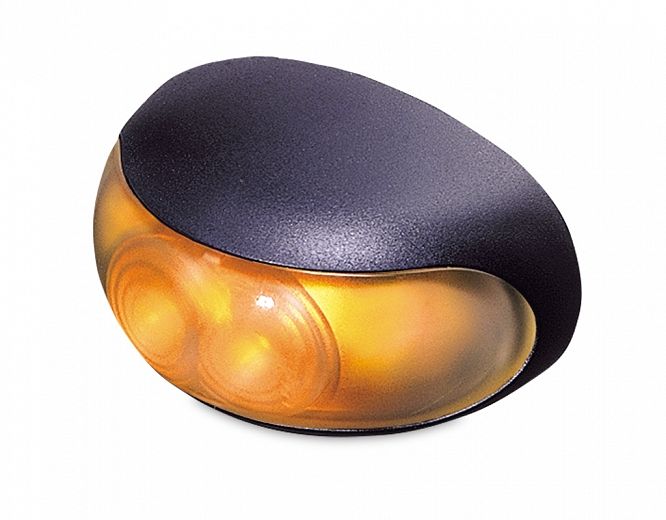

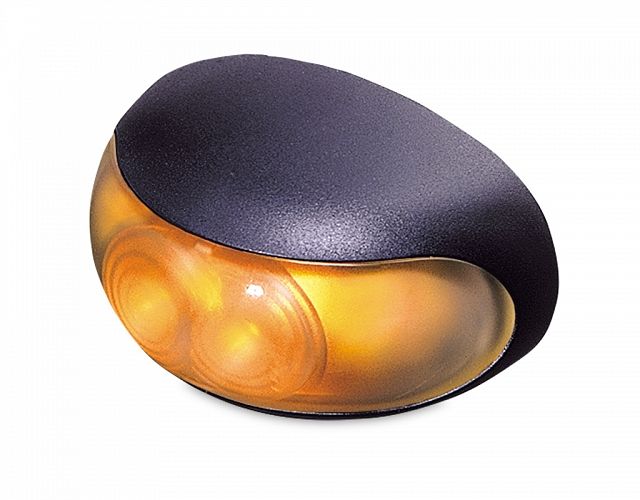

DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Diffusion Lens - Amber Light

DuraLED® Surface Mount Courtesy Lamp - Diffusion Lens - Amber Light

2XT 959 630-157
DuraLED<sup>®</sup> Surface Mount Courtesy Lamp - Diffusion Lens - Red Light

DuraLED® Surface Mount Courtesy Lamp - Diffusion Lens - Red Light

2XT 959 630-357

Specifications

Mounting

Two hole surface mount.

Voltage

Multivolt™ for optimum brightness at input voltage from 8 to 28 volts (red and amber lamps),
or between 10 and 33 volts (blue, white and green lamps).

Power Consumption

<1W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 0.5m of cable.

Lens material

PMMA

Approval Markings

e1 03 1721 CE

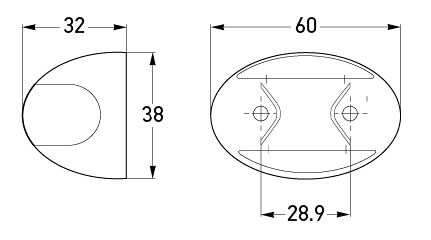

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XT 959 630-XX7 Instruction Sheet.pdf 275.11 KB
